STS320-103 TIRE SORT 3_HEAD ST RES LR
STS320-103 TIRE SORT 3_HEAD ST RES LR
-
Description

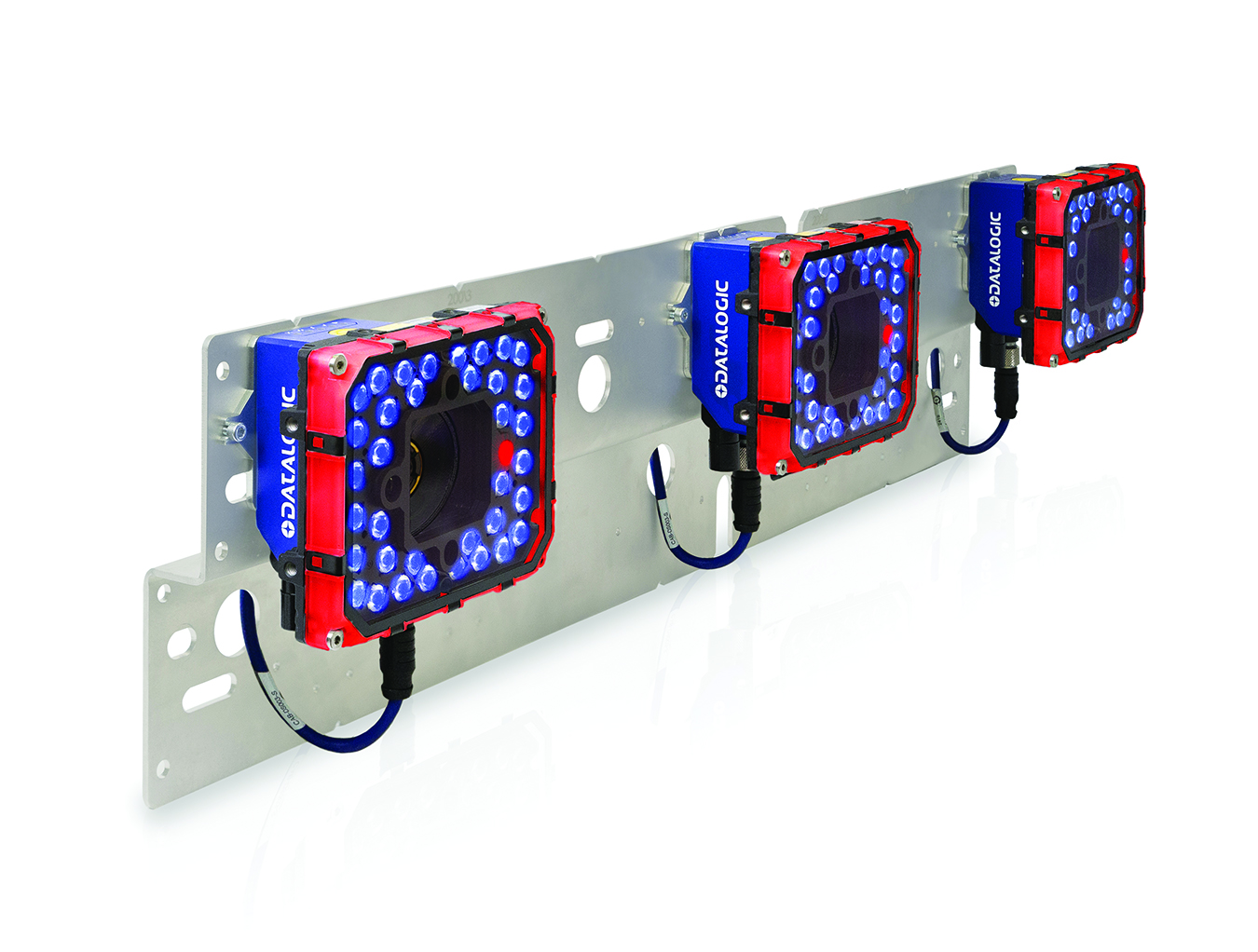

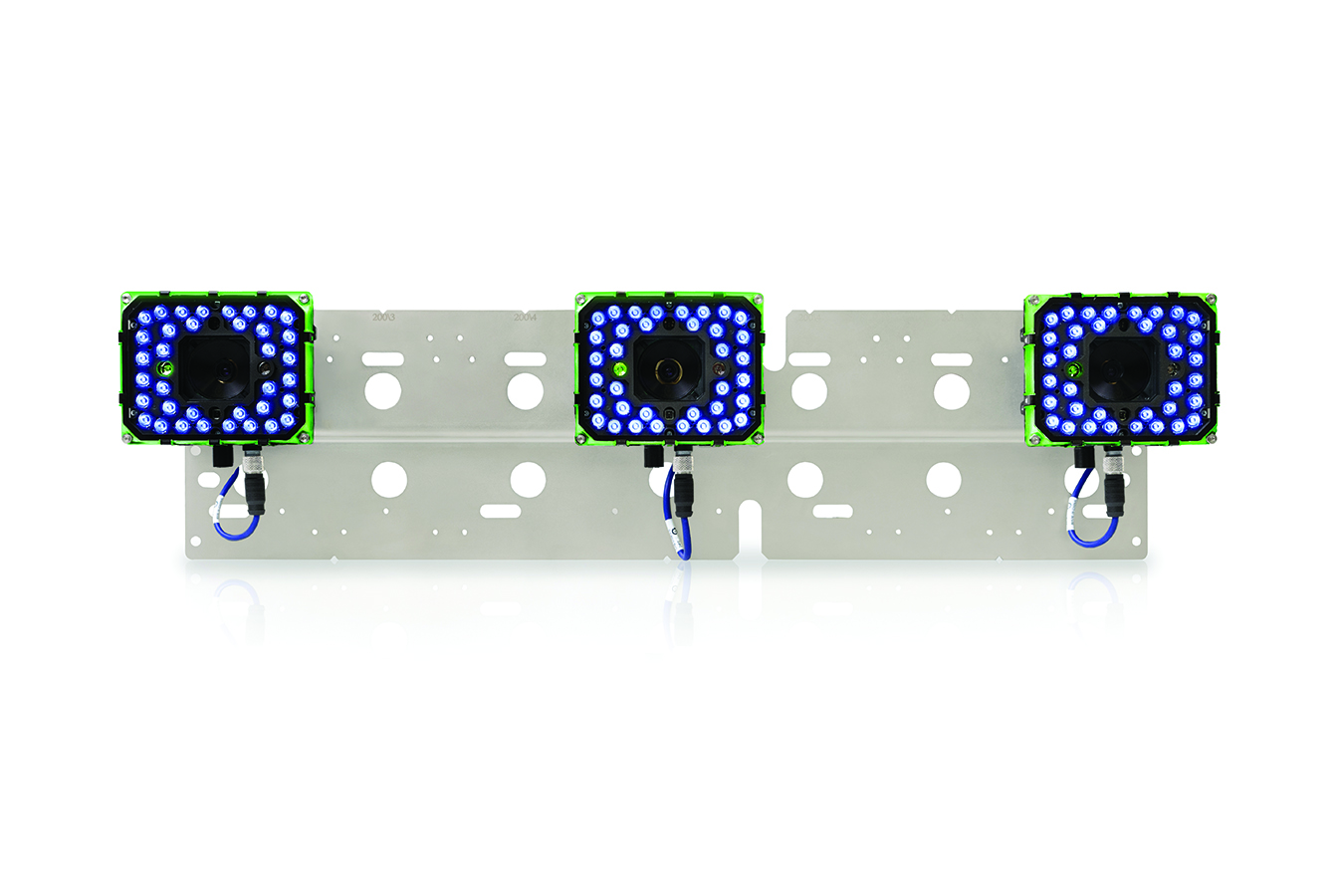

Datalogic’s STS320™ is the first-in-class solution of undisputed reliability for the Tire
Industry, offering tire manufacturers complete traceability in all demanding applications
along the tire production chain.PERFORMANCE EXCELLENCE
STS320 delivers outstanding reading performance at the best price/performance ratio
because of a superior 2MP sensor (1920 × 1080 pixels 16:9) combined with a powerful
dual core processor. In a very compact solution, STS320 achieves an extra-large Field of
View (FOV) up to 1250 mm (49”) for large conveyor coverage and a high Depth of Field
(DOF) even on high resolution codes of 0.25 mm (10 mils) for extreme application flexibility.
STS320 works with conveyor speed up to 1.5 m/s and with reduced minimum gap among
tires allowing an increase in overall productivity.
EASY & QUICK INSTALLATIONThe STS320 is an out-of-the box solution fully pre-assembled, pre-configured and
validated in the factory. Together with the self-contained, compact mechanical layout, it
makes product handling extremely easy and dramatically reduces installation time. The
product configuration is improved by the state-of-the-art DL. CODE™ software common
to all Matrix series. The usability is enhanced and simplified by the new cross projection
integrated aiming system, ‘Green Spot’ technology, and the X-Press HMI. - Files
- Accessories
STS320 ~ English.pdf
