MATRIX930-254WPN0,28Mp,25MM,F/4,W

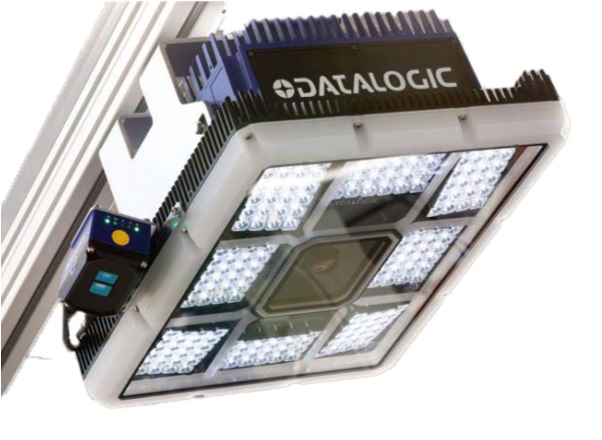

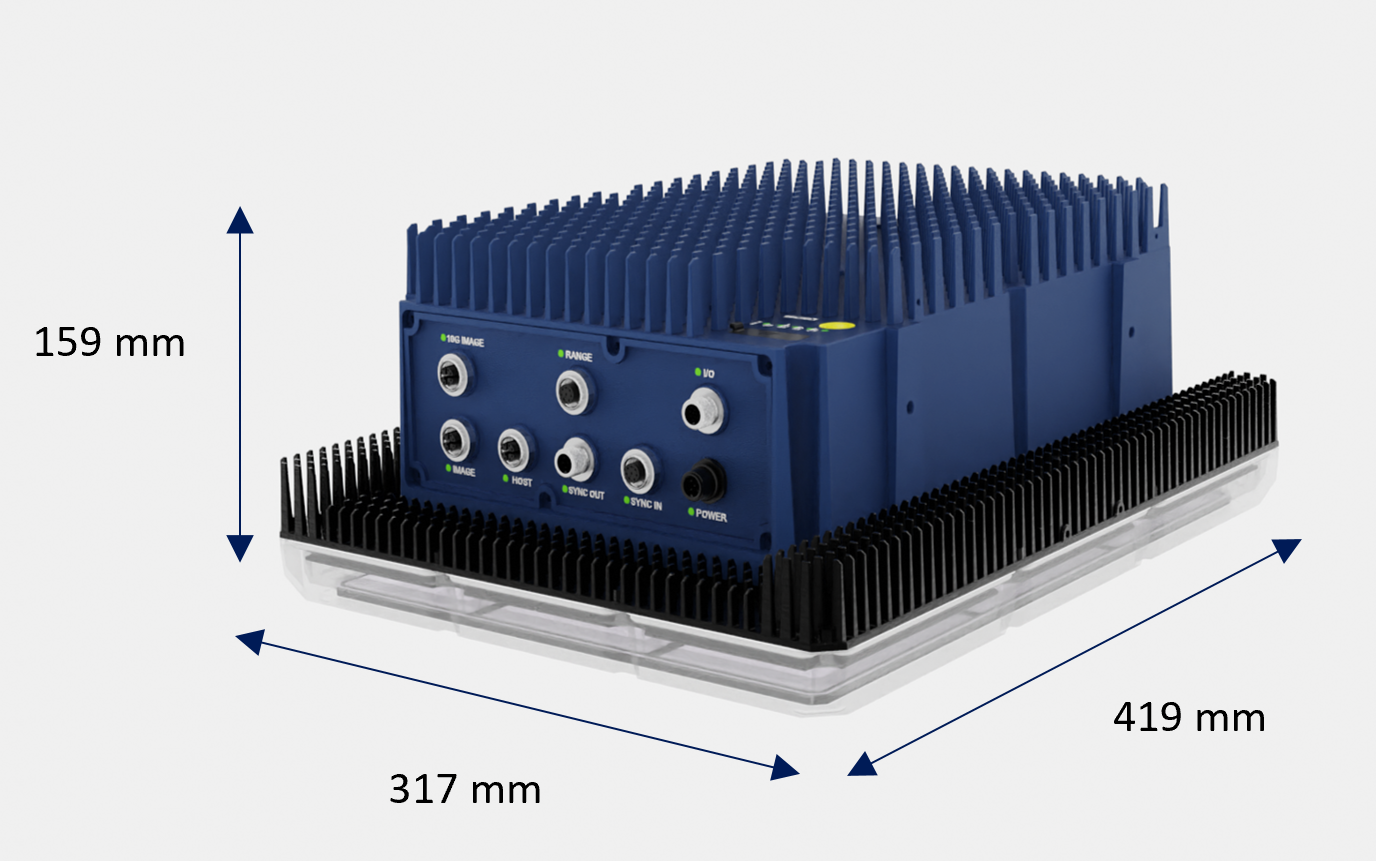

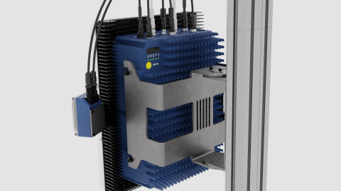

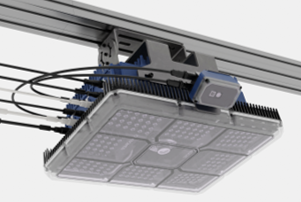

The MATRIX 930 is the world’s first 28Mpx 2D image-based reader setting a new paradigm
for logistic applications with high-speed transportation systems with belts up to 1200mm
wide, and speeds up to 3.2 m/s
With the very industry leading high resolution 28 MP sensor, and 3 focus methods
including dynamic, sequential, or SW adjustable focus, the Matrix 930 captures the highest
resolution and in focus images ideally suited for 1D and 2D barcode reading and image
based beyond barcode features. The MATRIX 930 reader creates a new optical standard
for unattended data capture solutions. With state-of-the-art image senor that is 8000
pixels wide a single device can cover transports up to 1200mm and is ideal for high density
barcodes or high dpi images for image-based features like hazmat detection, pattern
recognition, or OCR. The Matrix 930’s 28Mpx sensor combined with multiple lens options,
enables the complete field of view to be realized without the need for folding mirrors. The
Matrix 930 introduces the world’s first optional integrated range sensor, eliminating the
need for an external dimensioning device to provide focus input for the industry leading
dynamic focus of the Matrix 930.
