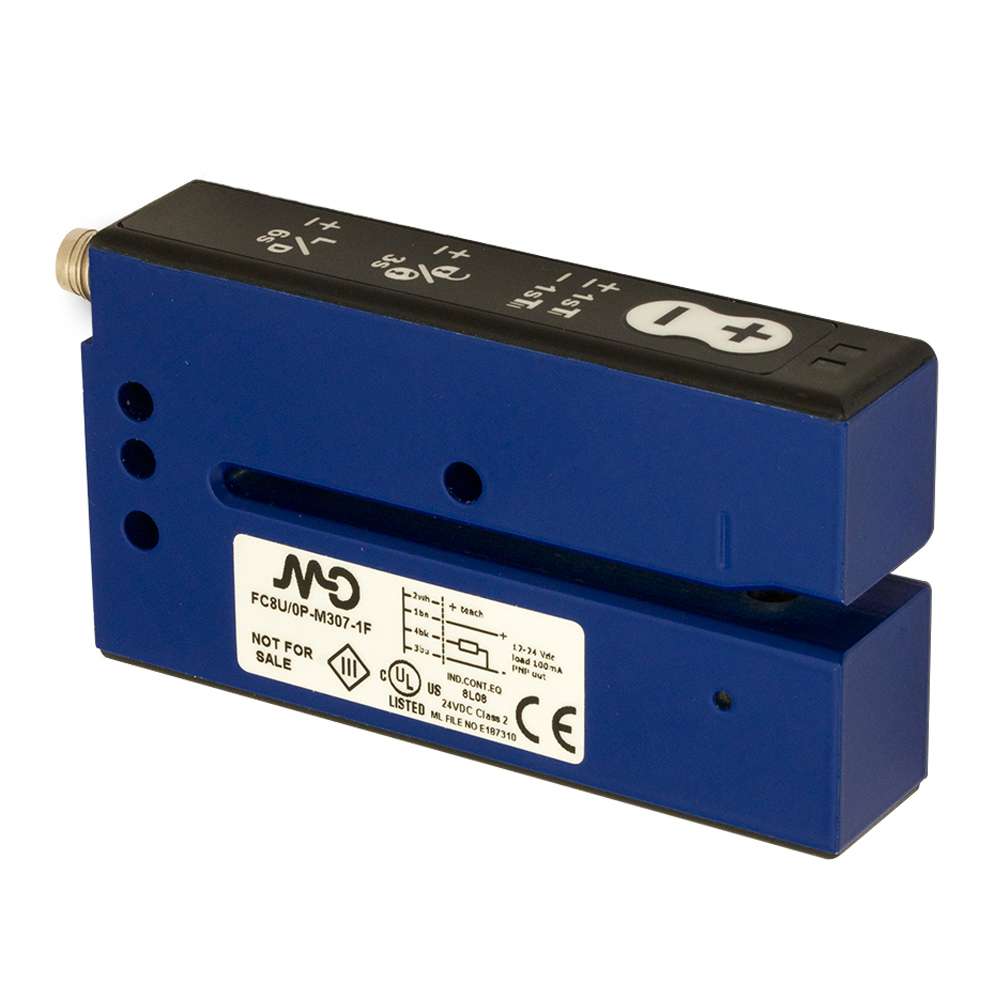

Ultra slot labelling 3mm width

Ultrasonic slot labelling 3mm width
Slot sensor for labels detection 3 mm width 69 mm depth Ultrasonic emission  PNP+NPN M8 4P

Article no.: FC8U/0B-M307-1F
Orderable item
Register
  • Description
    Overview Ultrasonic fork sensor for transparent labels, any opaque material with connector M8 4-pole Teach-in models with dynamic and remote teach Ultrasonic technology Small size easy to locate; aluminum case NPN and PNP, LO/DO total configurable Width slit detection 3 mm; depth slit detection 69 mm Maximum switching frequency 1.500 Hz

    Technical Features

    Detection properties
    Nominal sensing distance 3mm
    minimum detectable object 2mm
    Si Yes
    Sensitivity adjustment Yes
    +/-50 µm a 150m/min +/-20 µm at 120m/min
    200 m/min 180 m/min
    2mm 2mm
    Outputs
    Output type NPN/PNP
    Output Function LO/DO selectable
    Switching frequency 1.500Hz
    Electrical data
    Operating Voltage 12 - 24Vdc
    No-Load supply current ≤ 45mA
    Load current 100mA
    Output voltage drop ≤ 2 V @ IL =100 mA
    Max ripple content ≤ 10%
    Time delay before availability 300ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission Ultrasonic
    Mechanical data
    Dimensions Width slot detection 3mm - Depth slot detection 69mm
    Weight 160g
    Housing Material Painted aluminum
    Connections M8 plug 4 pin
    Operating temperature + 5°C…+ 55°C
    Storage temperature - 20°C…+ 70°C
    Width slot detection 3mm
    Depth slot detection 69mm
    Test/Approvals
    Approvals CE UL
    EMC compatibility EN 60529
    Degree of protection IP65
    Generical Data
    Dimensions Width slot detection 3mm - Depth slot detection 69mm
    Operating Temperature + 5°C…+ 55°C
    Mechanical Protection IP65
