M30,PNP+4-20mA,M12plug,Diffuse
Ultra.M30,PNP+4-20mA,M12 plug,Diffuse

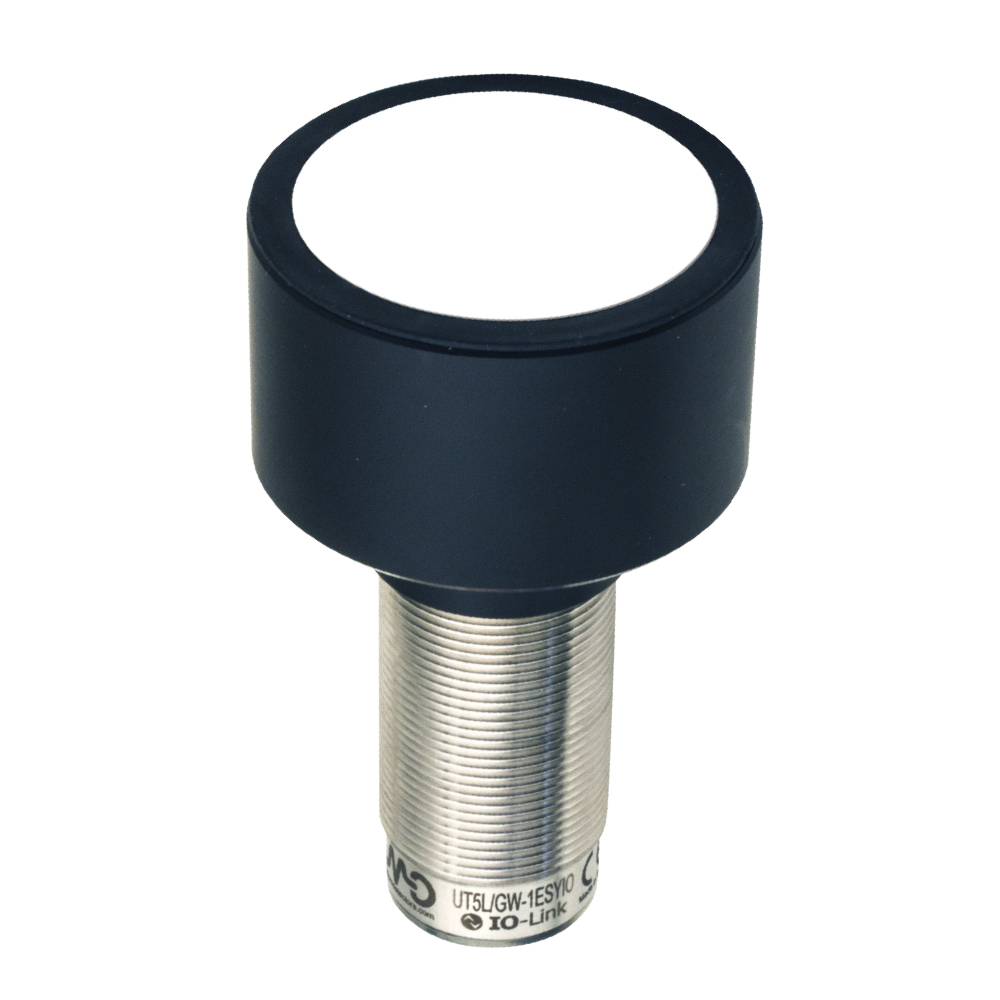

Ultrasonic sensor M30 housing with large shape transducer ø 61 mm, analog. 4-20 mA+ PNP NO/NC 600-8000 mm, conn. M12 with teach-in button,AISI316L stainless steel housing, cULus, I-O Link
Orderable item
-
Description
Overview M30 ultrasonic sensor with standard housing and with large front with high performances and high sensing distances Adjustable hysteresis function: models with double digital programmable output specific for level detection Models with voltage or current output: programmable slope to optimize resolution Adjustable working area (window mode or object mode) by Teach-in button on all models for a quick and easy installation Two multifunction LEDs: orange LED for adjustment procedure and output type and green LED for target alignment Plastic and AISI 316L stainless steel housing, plug M12 or cable exit 4 pin
Technical Features
Detection propertiesNominal sensing distance Thermal drift of Sr Repeat Accuracy Beam angle Resolution Sensitivity adjustment Teach-in button Hysteresis thermal compensation Minimum sensing distance (blind zone) Linearity error ApplicationFunction Principle Diffuse reflection OutputsOutput type IO-Link/PNP + 4…20mA Output Function NO/NC + positive/negative slope Switching frequency Response time Electrical dataOperating Voltage No-Load supply current Load current Leakage current Output voltage drop Max ripple content LED indicators Time delay before availability Short-circuit protection Reverse Polarity Protection Impulsive Overvoltage Protection Mechanical dataDimensions Weight Housing Material Connections M12 Plug Tightening torque Operating temperature Storage temperature Transducer Frequency Diameter/Dimension M30 Test/ApprovalsApprovals EMC compatibility Shocks and vibrations Degree of protection AccessoriesSupplied Accessories Generical DataDimensions Operating Temperature Mechanical Protection
