Ultra.M18,PNP-NO/NC,Cable,Diff
Ultra.M18,PNP-NO/NC,Cable,Diffuse

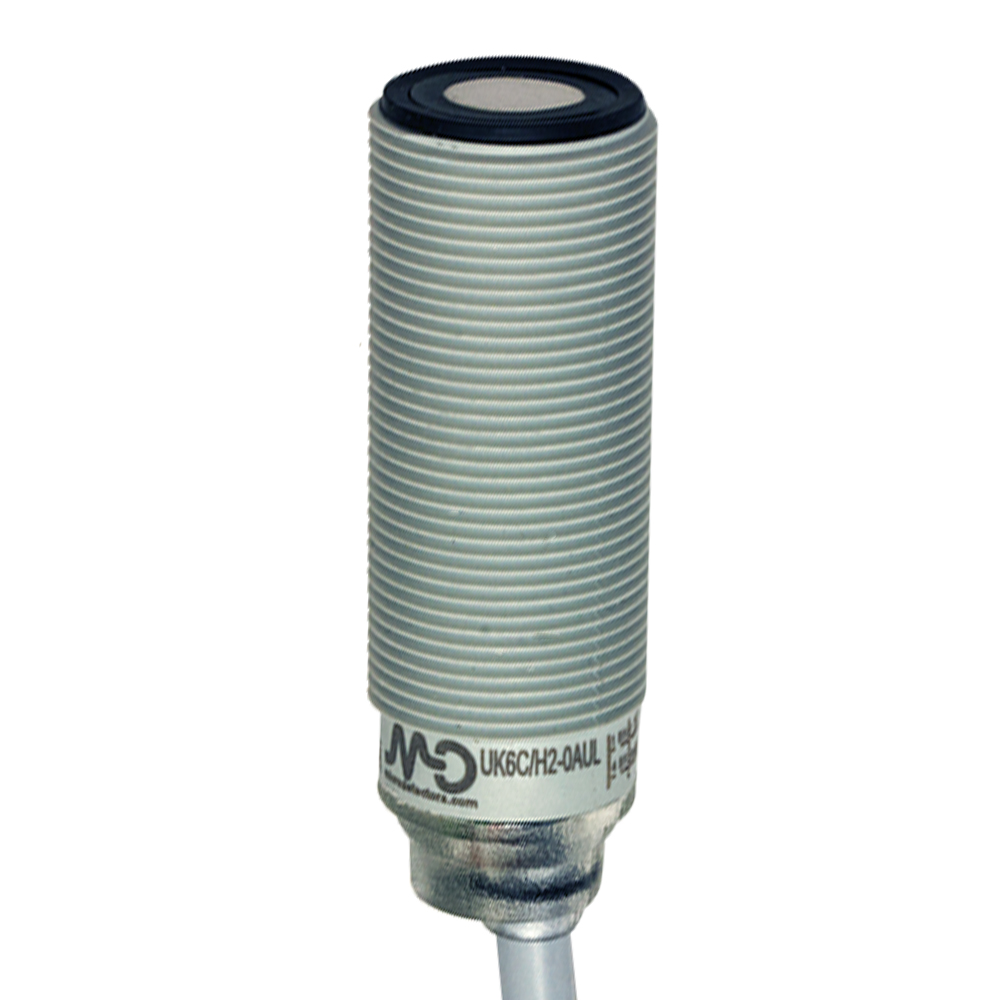

Ultrasonic sensor M18 PNP NO/NC 80-800 mm cable 2m, with remote teach-in by cable, cULus
Orderable item
-
Description
Overview M18 diffuse sensors with short housing Digital output Analogue output
Technical Features
Detection propertiesNominal sensing distance 800mm Thermal drift of Sr ≤2% Repeat Accuracy 0,50% Beam angle 8° ± 2° Resolution ≤3mm Sensitivity adjustment Teach-in button Hysteresis 1% thermal compensation Yes Minimum sensing distance (blind zone) 60mm Linearity error 1% ApplicationFunction Principle Diffuse reflection OutputsOutput type PNP Output Function NO/NC Switching frequency 5Hz Response time 400ms Electrical dataOperating Voltage 10 - 30Vdc No-Load supply current ≤35mA @Val = 30V Load current 100mA Leakage current 10μA @ 30Vcc Output voltage drop 2,2Vmax. @ IL=100 mA Max ripple content 5% LED indicators green: echo - yellow: output Time delay before availability ≤300ms Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataDimensions M18 x 1 / L = 46,4mm Weight 75g Housing Material PBT housing Connections 2m PVC Cable Tightening torque 1Nm Operating temperature - 20°C…+ 70°C Storage temperature - 35°C…+ 80° C without freeze Transducer Frequency 230kHz Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations IEC EN60947-5-2 / 7.4 Degree of protection IP67 AccessoriesSupplied Accessories 2 nuts M18x1, 2 washers Ø 18 Generical DataDimensions M18 x 1 / L = 46,4mm Operating Temperature - 20°C…+ 70°C Mechanical Protection IP67
