Ultra.M18,0-10V,Cable,Diffuse

Ultra.M18,0-10V,Cable,Diffuse

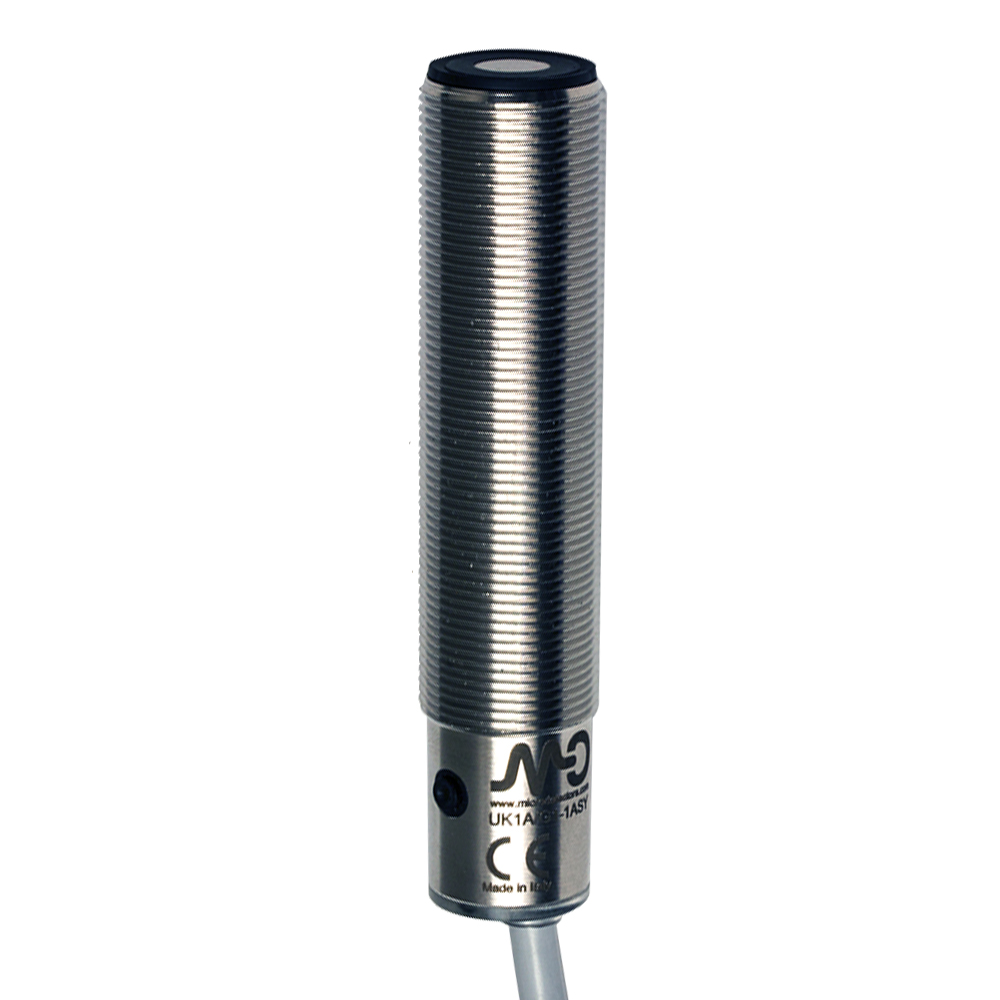

Ultrasonic sensor M18 analog. 0-10 V 50-400 mm cable 2m with teach-in button,AISI316L stainless steel housing, cULus

Article no.: UK1A/G1-1ASY
Orderable item
Register
  • Description
    Overview Models with digital programmable output Models with current or voltage analogue outputs Adjustable Hysteresis function: model with programmable double digital outputs, specific for levels Working area adjusting (window teach or single point teach) by Teach-in button suitable for all models for a fast coming into work Multifunction LED indicator: output type, adjustment procedure, NO/NC selection and reverse analog output slope

    Technical Features

    Detection properties
    Nominal sensing distance 400mm
    Thermal drift of Sr ±2%
    Repeat Accuracy 0,50%
    Beam angle 10° ± 2°
    Resolution ≤3mm
    Sensitivity adjustment Teach-in button
    Hysteresis 1%
    thermal compensation Yes
    Minimum sensing distance (blind zone) 50mm
    Linearity error 1%
    Application
    Function Principle Diffuse reflection
    Outputs
    Output type 0...10V
    Output Function
    Switching frequency 10Hz
    Response time 500ms
    Electrical data
    Operating Voltage 10 - 30Vdc
    No-Load supply current ≤50mA
    Load current 100mA
    Leakage current 10μA @ 30Vcc
    Output voltage drop 2,2Vmax. @ IL=100 mA
    Max ripple content 5%
    LED indicators green: echo - yellow: output
    Time delay before availability ≤300ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Impulsive Overvoltage Protection Yes
    Minimum load resistence 3kΩ
    Mechanical data
    Dimensions M18 x 1 / L = 83,6mm
    Weight 170g
    Housing Material PBT housing
    Connections 2m PVC Cable
    Tightening torque 50Nm
    Operating temperature - 20°C…+ 70°C
    Storage temperature - 35°C…+ 80° C without freeze
    Transducer Frequency 300kHz
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus
    EMC compatibility IEC 60947-5-2
    Shocks and vibrations IEC EN60947-5-2 / 7.4
    Degree of protection IP67
    Accessories
    Supplied Accessories 2 nuts M18x1, 2 washers Ø 18
    Generical Data
    Dimensions M18 x 1 / L = 83,6mm
    Operating Temperature - 20°C…+ 70°C
    Mechanical Protection IP67
