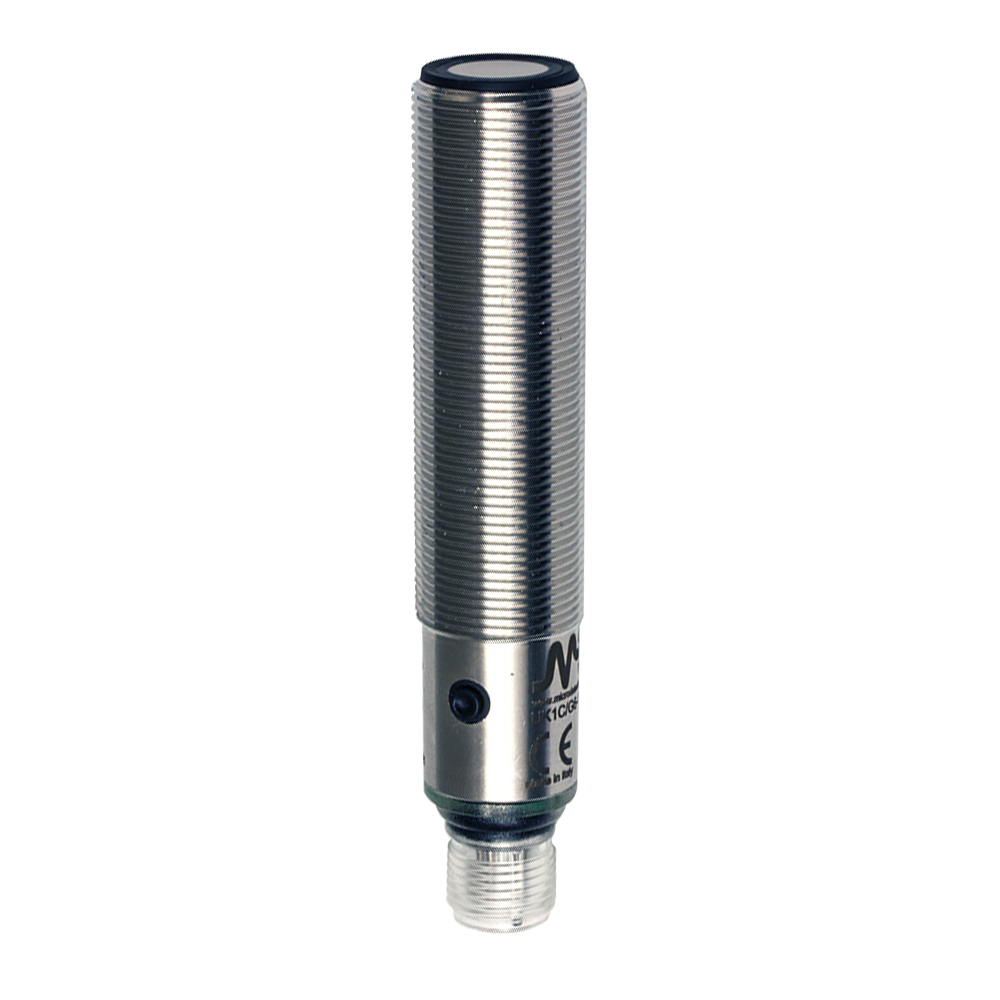

M18,PNP+4-20mA,M12plug,Diffuse
Ultra.M18,PNP+4-20mA,M12 plug,Diffuse
Ultrasonic sensor M18 analog. 4-20 mA+ PNP NO/NC 100-900 mm conn. M12 with teach-in button, AISI316L stainless steel housing, cULus, IO-LINK
In Stock
-
Description
Overview Models with digital programmable output Models with current or voltage analogue outputs Adjustable Hysteresis function: model with programmable double digital outputs, specific for levels Working area adjusting (window teach or single point teach) by Teach-in button suitable for all models for a fast coming into work Multifunction LED indicator: output type, adjustment procedure, NO/NC selection and reverse analog output slope
Technical Features
Detection propertiesNominal sensing distance 900mm Thermal drift of Sr ±2% Repeat Accuracy 0,50% Sensitivity adjustment Teach-in button thermal compensation Minimum sensing distance (blind zone) 100mm ApplicationFunction Principle Diffuse reflection OutputsOutput type IO-Link/PNP + 4…20mA Output Function NO/NC + positive/negative slope Switching frequency 3Hz Electrical dataOperating Voltage 10 - 30Vdc No-Load supply current ≤50mA Load current 100mA Leakage current 10μA @ 30Vcc Max ripple content 5% LED indicators green: echo - yellow: output Short-circuit protection Yes Reverse Polarity Protection Yes Impulsive Overvoltage Protection Yes Mechanical dataDimensions M18 x 1 / L = 91,6mm Weight 100g Housing Material stainless steel AISI 316L Connections M12 Plug Active Head Material 10° ± 2° Tightening torque 1Nm Operating temperature - 20°C…+ 70°C Storage temperature - 35°C…+ 80° C without freeze Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility IEC 60947-5-2 Shocks and vibrations IEC EN60947-5-2 / 7.4 Degree of protection IP67 AccessoriesSupplied Accessories 2 x M18 x 1 nuts, 2 Ø 18 washers Generical DataDimensions M18 x 1 / L = 91,6mm Operating Temperature - 20°C…+ 70°C Mechanical Protection IP67
