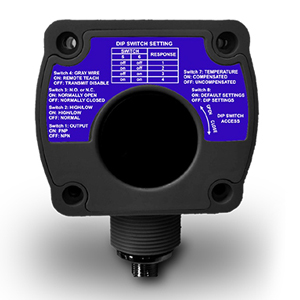

ST-30MM

Overview Digital bipolar PNP/ NPN NO /NC configurable output model Digital and 0-10 V / 4-20 mA configurable analogue output model Operating range of 200 mm…8m Minimum resolution: 1 mm Analogue output Linearity: +/- 0.2% of span from 200 to 8000 mm; +/- 0.1% of span from 500 to 8000 mm (1 mm minimum) Minimum window size: 20mm Repeatability: 1 mm Hysteresis: 5 mm Response Time: 100 ms to 1600 ms DIP SWITCH selectable Access to bank of 8 DIP switches through sealed cover for superior user functionality Fast, easy-to-use REMOTE TEACH - Mode programming; no potentiometer adjustments Wide operating range of -20° to +70°C with compensation function Rugged encapsulated design for harshenvironments Unique housing design allows formultiple mounting configurations Euro-style quick-disconnect fitting

Technical Features
