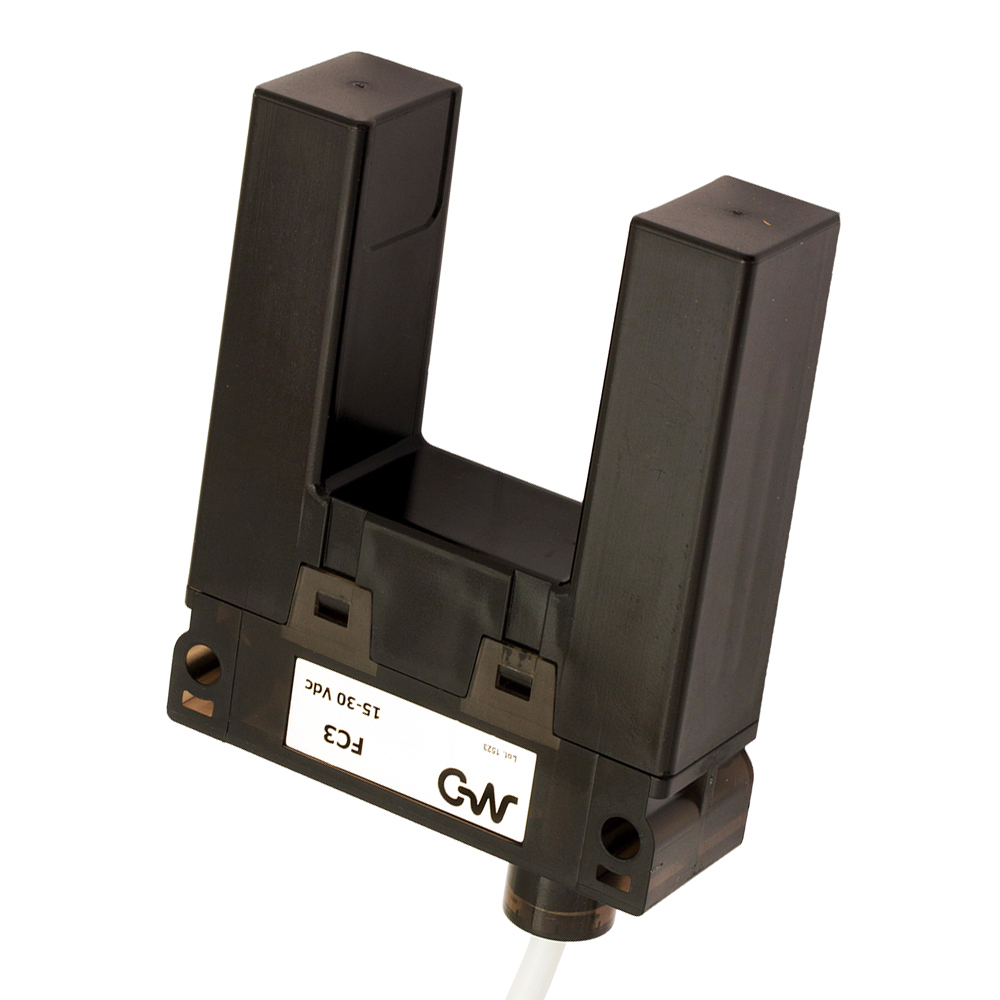

Fork,TRIAC-LO/DO,M12,Edge det.

Photo.Fork,TRIAC-LO/DO,M12 plug,Edge detect
Slot sensor 2 beams 14-30Vdc out Triac

Article no.: FC3
Orderable item
Register
  • Description
    Overview Dual beams photoelectric slot sensor RIAC output Light on/Dark on selectable by polarity inversion Approvals: CE

    Technical Features

    Detection properties
    Beams space 6,8mm
    Optics diameter 3mm
    Outputs
    Output type TRIAC
    Output Function LO/DO
    Switching frequency 25Hz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 30mA
    Load current ≤ 500mA (V=110Vac)
    Leakage current ≤ 250µA (V=250V max))
    Output voltage drop ≤ 1,2V @ Iload=500mA
    Max ripple content < 10%
    LED indicators green (supply) red (output)
    Emission infrared
    Inrush current 5A (T=10µs)
    Blocking voltage / Operating voltage ± 400V - 110Vac eff.
    Zero-voltage switching yes
    Mechanical data
    Dimensions 26,4 x 75 x 90 mm
    Weight 122g
    Housing Material PCB
    Connections Pigtail
    Test/Approvals
    Approvals CE
    Degree of protection IP64
    Generical Data
    Dimensions 26,4 x 75 x 90 mm
    Mechanical Protection IP64
