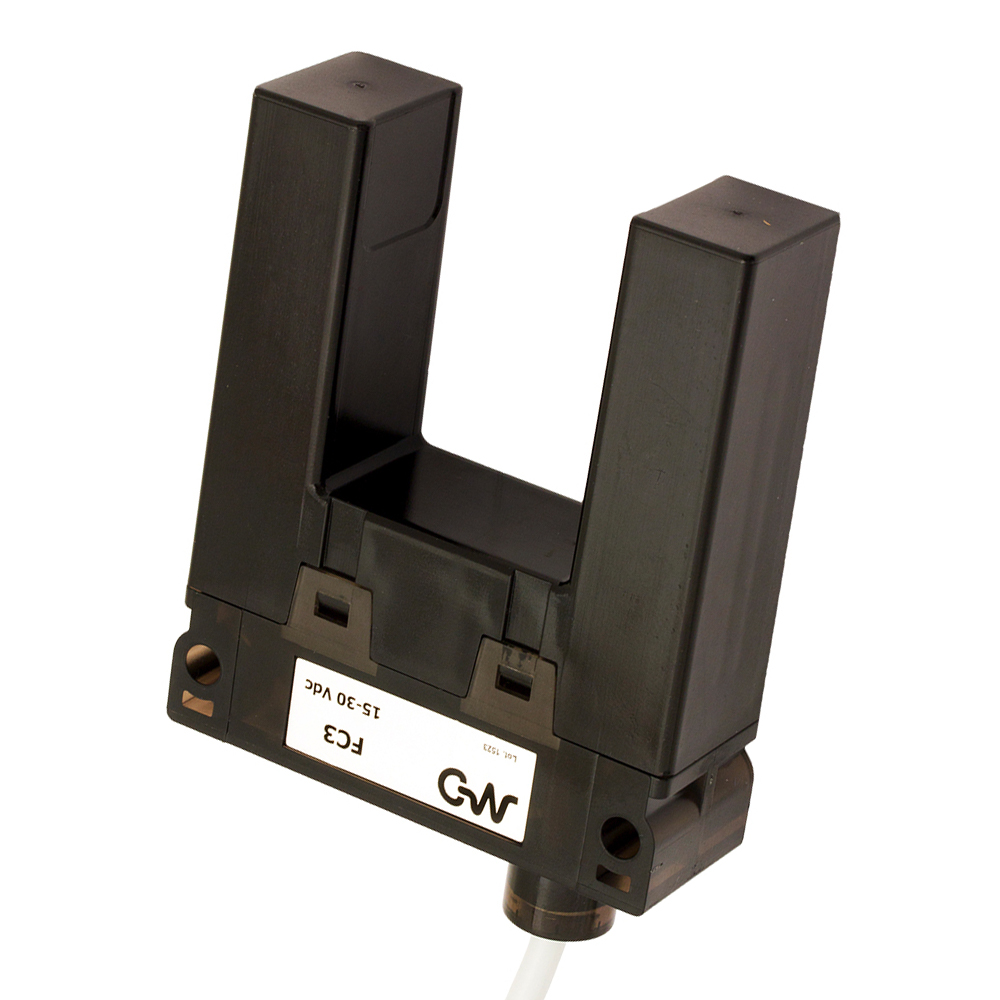

Fork,MOSFET-LO/DO,M12,Edgedet.

Photo.Fork,MOSFET-LO/DO,M12 plug,Edge detect
Slot sensor 2 beams 14-30Vdc out mosfet 24V Ac/Dc

Article no.: FC3/A
Orderable item
Register
  • Description
    Overview Dual beams photoelectric slot sensor RIAC output Light on/Dark on selectable by polarity inversion Approvals: CE

    Technical Features

    Detection properties
    Beams space 6,8mm
    Optics diameter 3mm
    Outputs
    Output type MOSFET
    Output Function LO/DO
    Switching frequency 25Hz
    Electrical data
    Operating Voltage 10...30Vdc
    No-Load supply current ≤ 30mA
    Load current ≤ 500mA (V=30Vdc/24Vac))
    Leakage current ≤ 250µA (V=30V max))
    Output voltage drop ≤ 1,2V @ Iload=500mA
    Max ripple content < 10%
    LED indicators green (supply) red (output)
    Emission infrared
    Inrush current 5A (T=10µs)
    Blocking voltage / Operating voltage ± 40/30Vdc - 30Vac eff.
    Mechanical data
    Dimensions 26,4 x 75 x 90 mm
    Weight 122g
    Housing Material PCB
    Connections Pigtail
    Test/Approvals
    Approvals CE
    Degree of protection IP64
    Generical Data
    Dimensions 26,4 x 75 x 90 mm
    Mechanical Protection IP64
