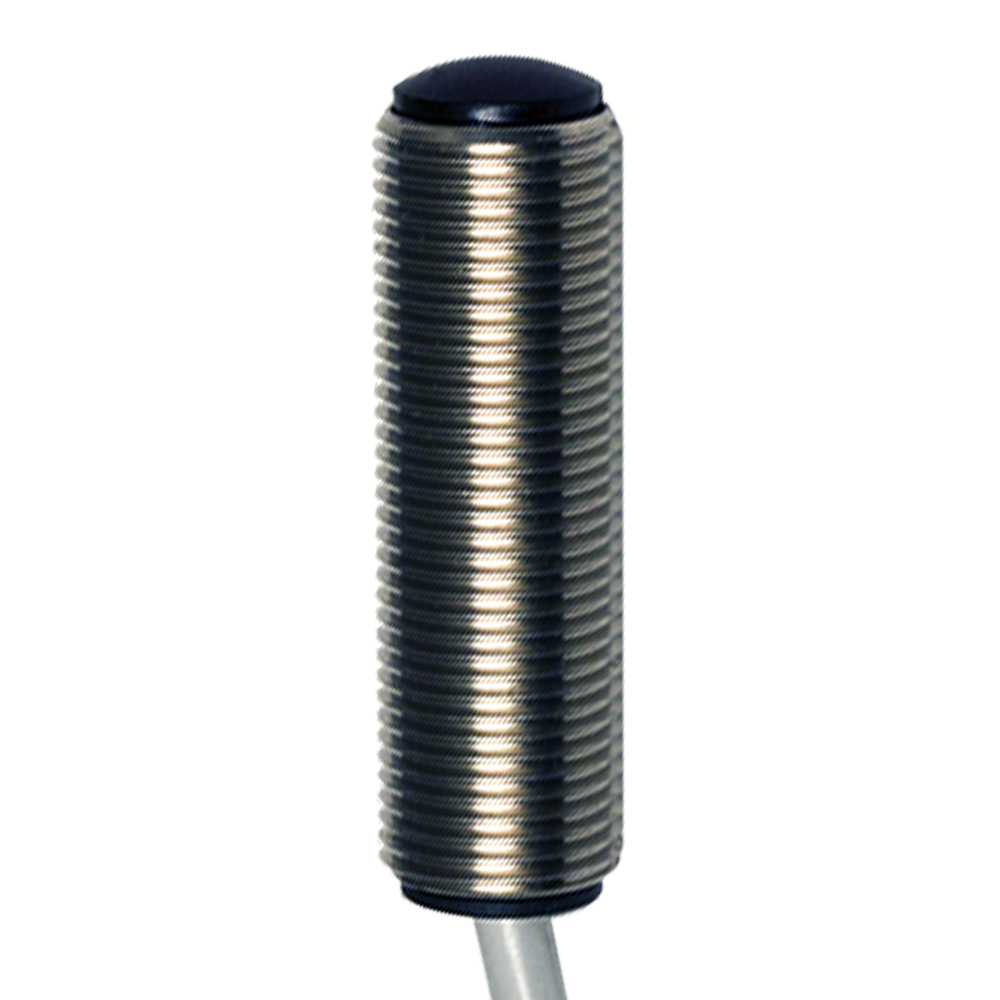

Photo.M12,IR emiss.,Cabl,Emitt

Name: Photo.M12,IR emiss.,Cabl,Emitt
SKU: DGE/01-2C
Availability: BackOrder

Photo.M12,IR emiss.,Cable,Emitter
Photoelectric sensor Em. 75 mm M12 L41 mm Met. plast. 15 m

Article no.: DGE/01-2C

Orderable item

Overview The unit allows the mouting of miniature pair of sensors suitable for very harsh environments (DG series) LED indicators: alignment (stability), operating voltage, alarm and output state Operating voltage AC or DC Relay output and relay alarm output Double timer with indipendent adjustments Sensitivity adjustment Possibility of mounting on panel IP68 photoelectric sensors for applications in harsh environment Sensing distance 60 m (HI), 30 m (LO) Approvals: CE

Technical Features

Detection properties

Nominal sensing distance	75m
Beam angle	± 5°

Application

Function Principle	Emitter
Optic position	Axial

Electrical data

Operating Voltage	from UR control unit
Emission	Infrared
Interference to external light	20000 lux

Mechanical data

Dimensions	M12 x 41mm
Housing Material	Stainless steel AISI 303
Connections	15m PVC cable
Active Head Material	Polycarbonate
Operating temperature	-20°C … +60°C
Diameter/Dimension	M12

Test/Approvals

Approvals	CE
EMC compatibility	Conforming with EMC directive according with EN60947-5-2
Degree of protection	IP67

Generical Data

Dimensions	M12 x 41mm
Operating Temperature	-20°C … +60°C
Mechanical Protection	IP67
