Maxi,Relay-NO/NC,Ampli 220Vac

Name: Maxi,Relay-NO/NC,Ampli 220Vac
SKU: URD/00
Availability: BackOrder

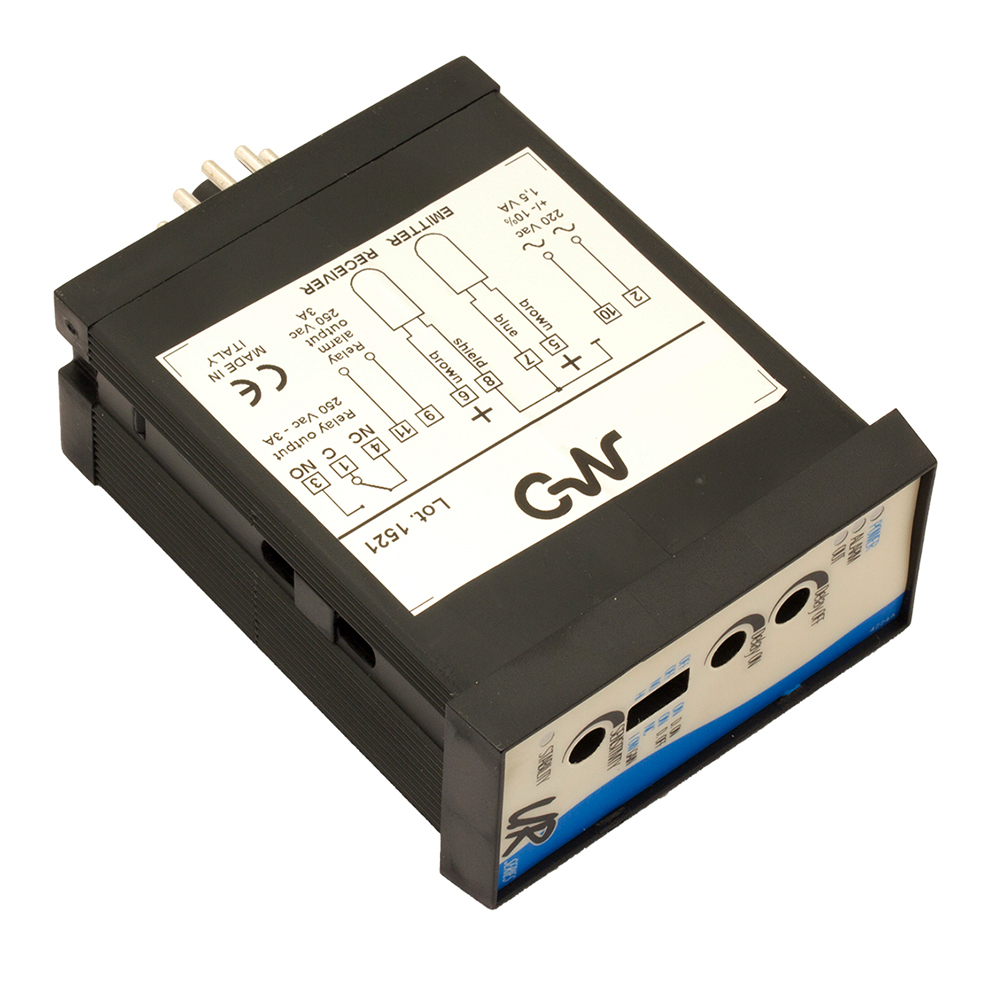

Photo.Maxi,Relay-NO/NC,Ampli 220Vac
Photoelectric sensor Amplific. 24VAC

Article no.: URD/00

Orderable item

Overview The unit allows the mouting of miniature pair of sensors suitable for very harsh environments (DG series) LED indicators: alignment (stability), operating voltage, alarm and output state Operating voltage AC or DC Relay output and relay alarm output Double timer with indipendent adjustments Sensitivity adjustment Possibility of mounting on panel IP68 photoelectric sensors for applications in harsh environment Sensing distance 60 m (HI), 30 m (LO) Approvals: CE

Technical Features

Outputs

Switching frequency

10Hz

Electrical data

Operating Voltage	24Vac
No-Load supply current	1,5 VA
LED indicators	green (supply) red (output state) green (stability) red (alarm)
Frequency	50…60Hz
Max output voltage	250V
Max output current	3A
Operating time (relè de-energized)	≤ 40ms
Reset time (relè energized)	≤ 40ms
Voltage tolerance	+10% … -15%
Operating output	Relay NO+NC
Relay with alarm output	no

Mechanical data

Dimensions	36x90x67mmù
Weight	110g
Housing Material	Noryl 90 V-0
Operating temperature	-10°C … +50°C (without freeze)

Test/Approvals

Approvals	CE
EMC compatibility	Conforming with EMC directive according with EN60947-5-2
Degree of protection	IP20

Generical Data

Dimensions	36x90x67mmù
Operating Temperature	-10°C … +50°C (without freeze)
Mechanical Protection	IP20
