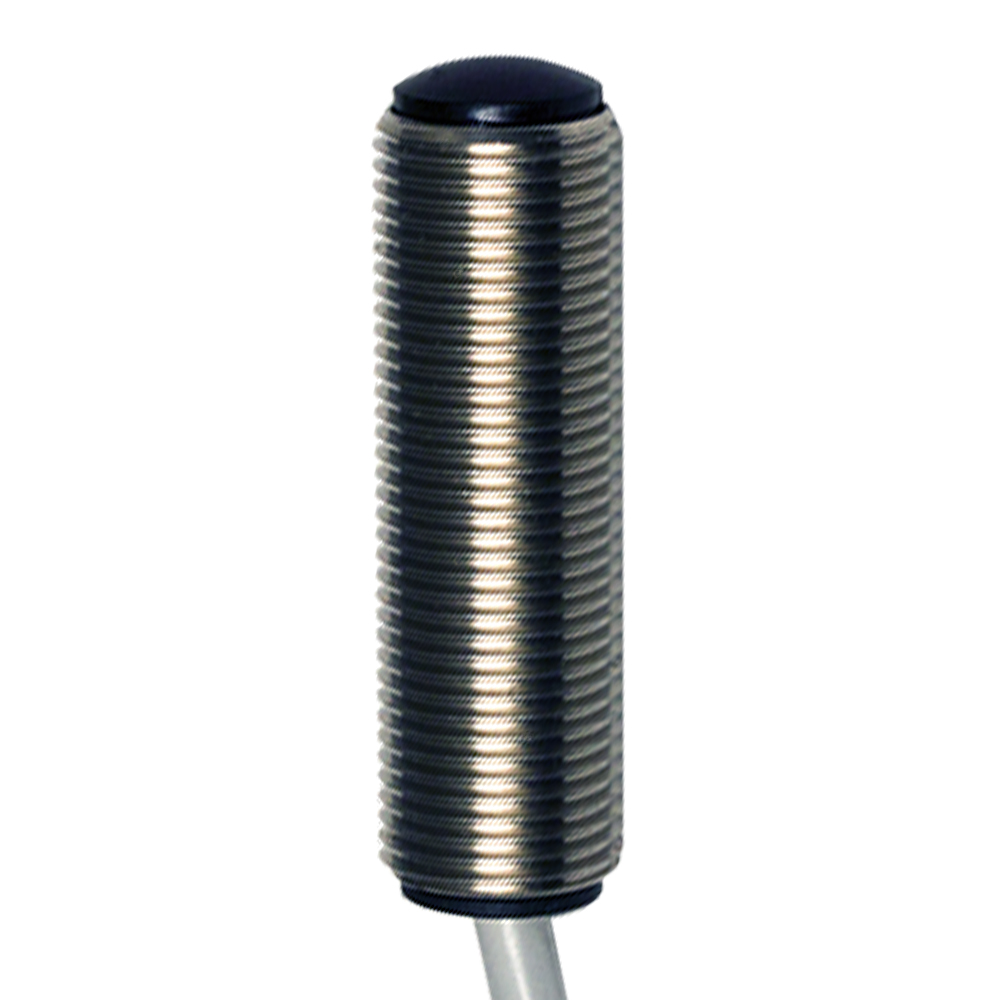

M12,for UR ampli.,Cable,Rec

Photo.M12,for UR ampli.,Cable,Receiver
Photoelectric sensor Receiver 75 mm 12 L41 mm Met. plast. 5 m

Article no.: DGR/01-2A
Orderable item
Register
  • Description
    Overview The unit allows the mouting of miniature pair of sensors suitable for very harsh environments (DG series) LED indicators: alignment (stability), operating voltage, alarm and output state Operating voltage AC or DC Relay output and relay alarm output Double timer with indipendent adjustments Sensitivity adjustment Possibility of mounting on panel IP68 photoelectric sensors for applications in harsh environment Sensing distance 60 m (HI), 30 m (LO) Approvals: CE

    Technical Features

    Detection properties
    Nominal sensing distance 75m
    Beam angle ± 5°
    Application
    Function Principle Receiver
    Optic position Axial
    Electrical data
    Operating Voltage from UR control unit
    Emission Infrared
    Interference to external light 20000 lux
    Mechanical data
    Dimensions M12 x 41mm
    Housing Material Stainless steel AISI 303
    Connections 5m PVC cable
    Active Head Material Polycarbonate
    Operating temperature -20°C … +60°C
    Diameter/Dimension M12
    Test/Approvals
    Approvals CE
    EMC compatibility Conforming with EMC directive according with EN60947-5-2
    Degree of protection IP67
    Generical Data
    Dimensions M12 x 41mm
    Operating Temperature -20°C … +60°C
    Mechanical Protection IP67
