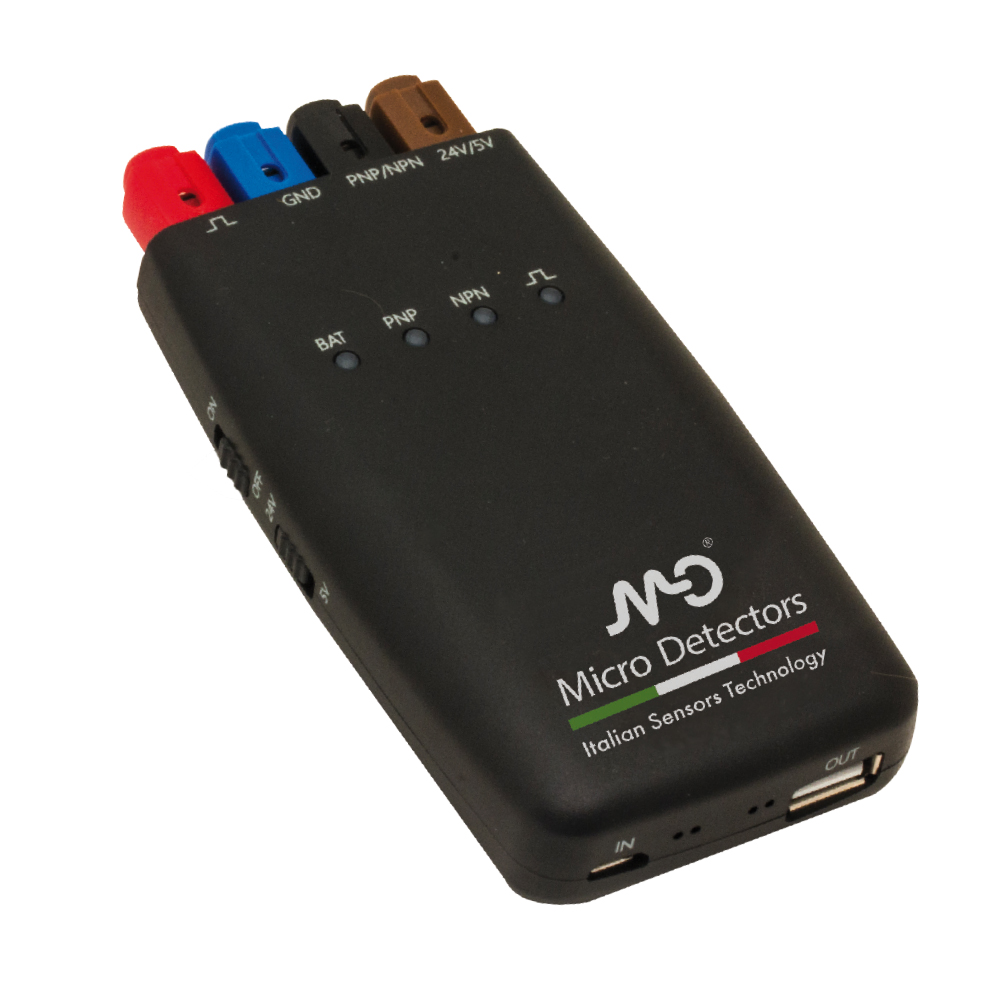

Tester for sensors Digital

Tester for sensors
Li-ion rechargable supplier for digital sensors

Article no.: ST 300D
In Stock
Register
  • Description

    Technical Features

    Application
    Available functions Short circuit protection - Sleeping mode - Positive pulse
    Description DC sensors tester.
    Usable with Accessories suitable for all types of photoelectric and proximity sensors
    Sensor ouput type detection NPN / PNP (Automatic detect)
    Functions Sensor tester
    Electrical data
    Output voltage 4,8 … 5,2 V (OUT + 5V) 19 … 24,5V (OUT + 24V) 4,8 … 5,2 (USB)
    Output current for sensors ≤ 200mA (@5V) ≤ 150mA (@24V)
    Battery capacity 2500 mAh
    Operating time 10h (@24V, 15mA)
    Charging time ≤ 6h
    Battery The product contains a non removable Li-ion battery. For the delivery of the product, follow the National and IATA regulations.
    Mechanical data
    Dimensions 124x22x23mm
    Weight 190g
    Operating temperature -10°C … +45°C
    Generical Data
    Dimensions 124x22x23mm
    Operating Temperature -10°C … +45°C
