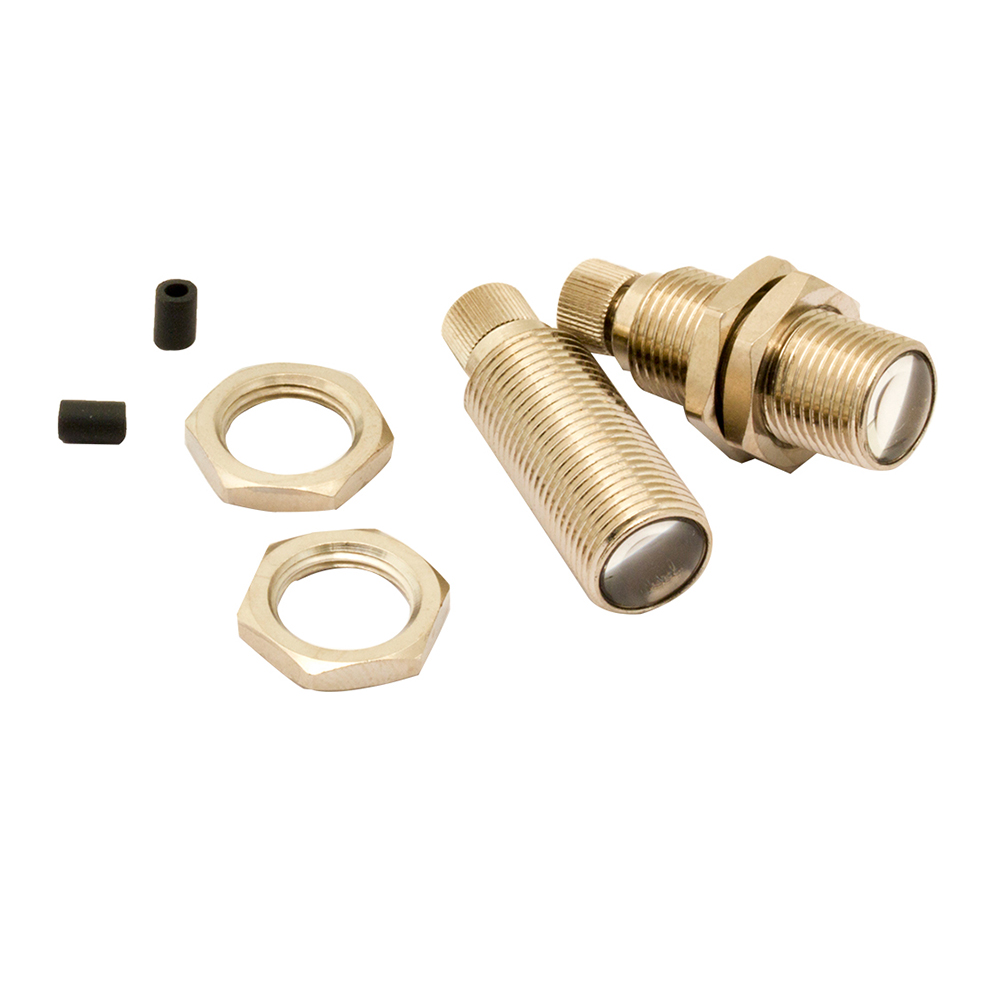

Opt.fibre,Focaliser AF/1F,E+R

Access,Opt.fibre,Focaliser AF/1F,E+R
Termin.S/R fibra core 1 mm 3500 mm

Article no.: AF/ER6
Orderable item
Register
  • Description
    Overview Wide range of models: ultra slim for small object, long distances, spiral tube for handling Wide range of flexible fibre heads (with sleeve) Wide range of cutting fibre units P67 protection degree SSF – FS1 – FX3 – FX4 series connectable Approvals: CE

    Technical Features

    Detection properties
    Distance with SSF 3.500 mm
    Distance with FS1 3.500 mm
    Distance with FX3 6.000 mm
    Distance with FX4 8.000 mm
    Distance with F1R 4.500 mm
    Application
    Function Principle P/R
    Fibre model AF/1S
    Mechanical data
    Operating temperature -40°C....+70°C
    Ø optical fibre core 1 mm
    - Yes
    Ø optical fibre 2,2 mm (plastic)
    Material glass, ETM, nickel plated brass
    Test/Approvals
    Degree of protection IP67 (EN60529)
    Generical Data
    Operating Temperature -40°C....+70°C
    Mechanical Protection IP67 (EN60529)
