Overview

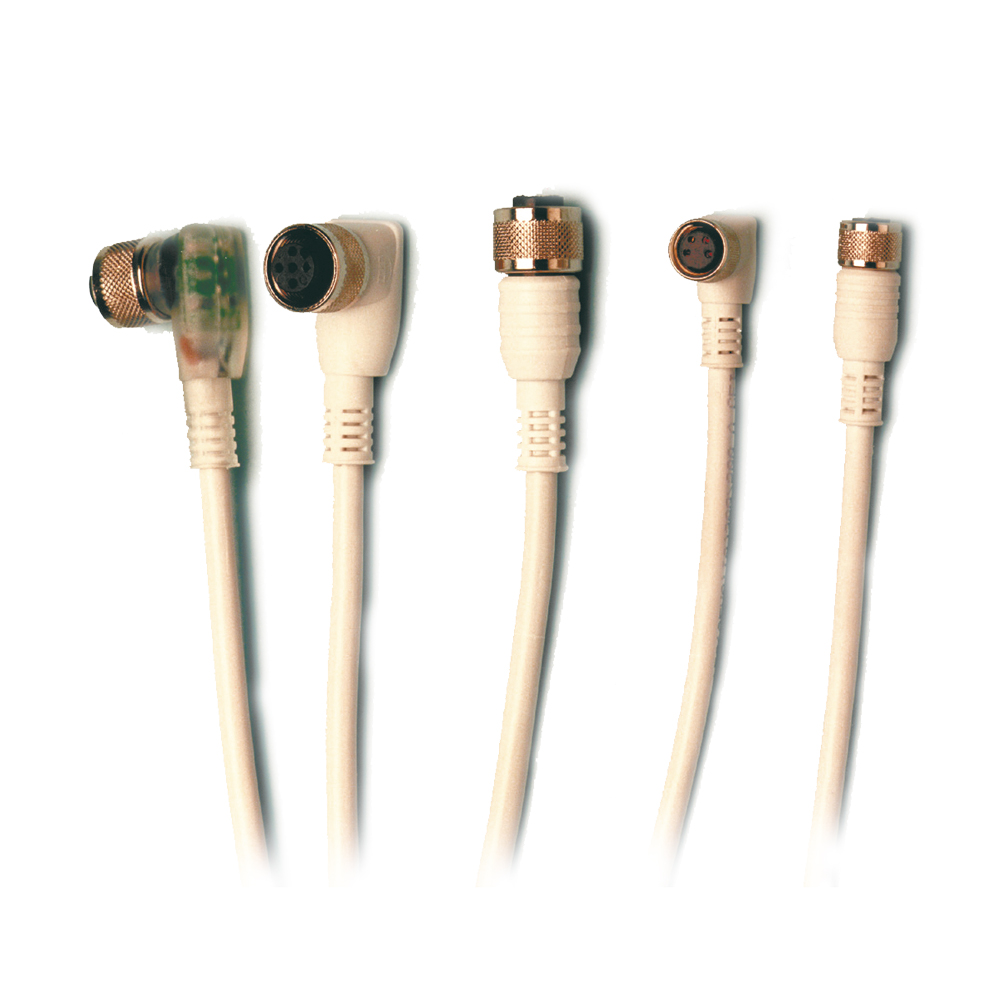

M8 and M12, axial or radial female connectorsStandard length cables: 2, 3, 5, 7, 10, 15, 25 or 50m3, 4, 5, 8 or 12 polesShielded or unshielded models P.U.R. coated models for use in harsh environments P.V.C. coated models for standard useStandard M12 4 pole non-cabled connectorsThe cable jacket maybe marked 300V only as insulation voltage between wires, the operational voltage is 24Vdc or 10-30Vdc, less than 80 V required by CCC-China
Technical Features
Detection properties
| Nominal sensing distance |
n/a |
| Sensitivity adjustment |
n/a |
Application
| Description |
Straight female |
| Functions |
Cable/connector |
Outputs
| Output type |
n/a |
| Response time |
n/a |
Electrical data
| Operating Voltage |
10-30 VDC |
| Emission |
n/a |
Mechanical data
| Dimensions |
L=10m |
| Connections |
M12 3-poles |
| Material |
PVC (Grey) |
