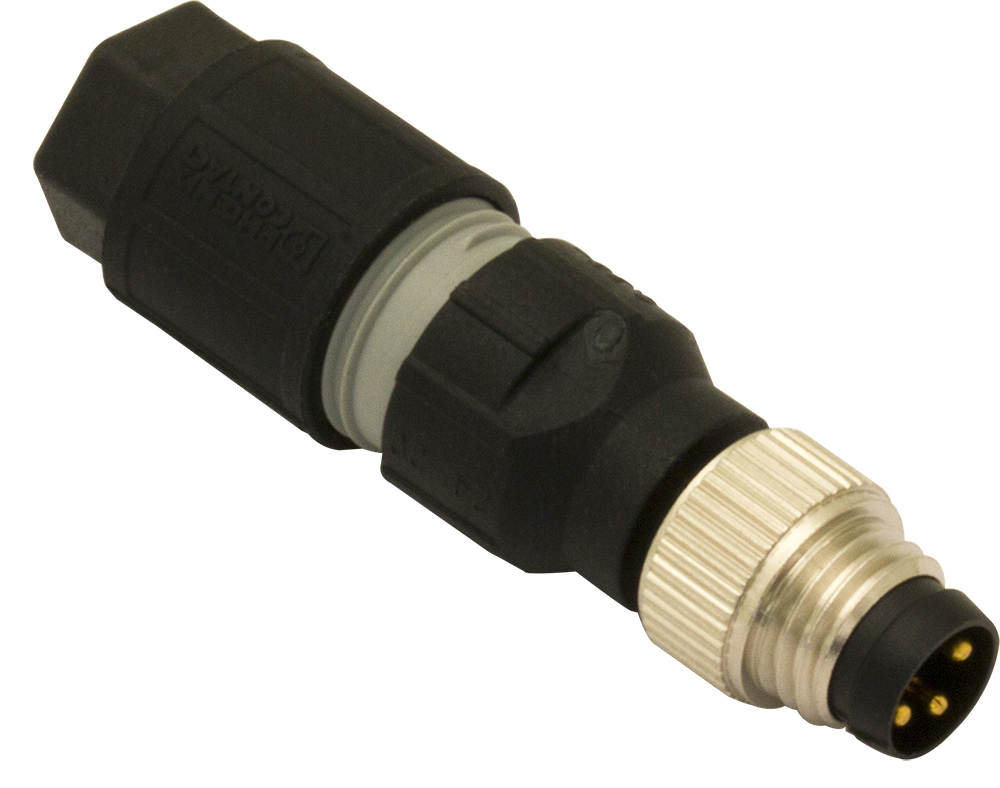

M8-M-Axial,4 p,Field attach.

Connect.M8-M-Axial,4 p,Field attach.
Connector Conn. M8 male 4 poles Axial, screw connection

Article no.: CV08/0B-00A
Orderable item
Register
  • Description

    Technical Features

    Application
    Fixing screw terminals
    Electrical data
    Rated current a 40°C 4 A
    Led no
    Wires 4
    Insulation resistance ≥ 100 mΩ
    Contact resistance ≤ 5 mΩ
    Rated voltage 60 V (3 plugs) 30 V (4 plugs)
    Mechanical data
    Connections Field attachable
    Tightening torque 0,2 Nm (M8 nut)
    Operating temperature -40 °C ... 85 °C
    Head type Axial
    Plug M8
    Outer diameter 3,5 mm ... 5 mm
    Stripping lenght of the sheath 12 mm
    Conductors section 0,14 mm²...0,5 mm²
    Model Male
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -40 °C ... 85 °C
    Mechanical Protection IP67
