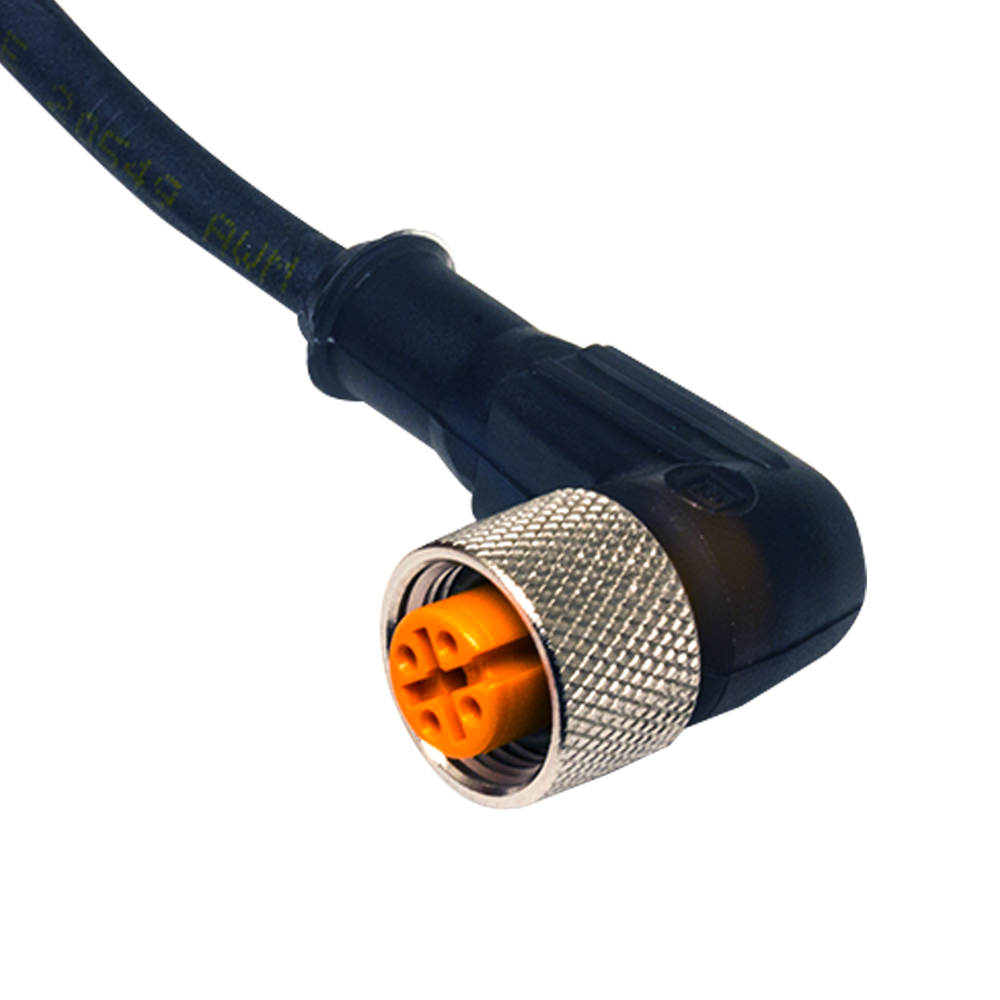

M12-F,4poles-5m-LED,PUR,90°

Connect.M12-F,4 poles-5m-LED,PUR,90°
Connector Female M12 90° 4 poles cable PUR 5m with 3 LEDs

Article no.: CD12M/LB-100C5
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 4 A
    Led 3 (Supply - PNP output pin 4-2)
    Wires 4
    Nominal voltage 250 V
    Mechanical data
    Connections With open ended wires
    Operating temperature -40°C … +80°C (fixed installation) '-25°C … +80°C (flexible installation)
    Fibre lengh (m) 10
    Head type 90°
    Plug M12
    Outer diameter Ø 4,7mm ±0.20mm
    Jacket material TPU
    Wire isolation PP
    Bending radius > 5 x D (fixed installation) > 10 x D (flexible installation)
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -40°C … +80°C (fixed installation) '-25°C … +80°C (flexible installation)
    Mechanical Protection IP67
