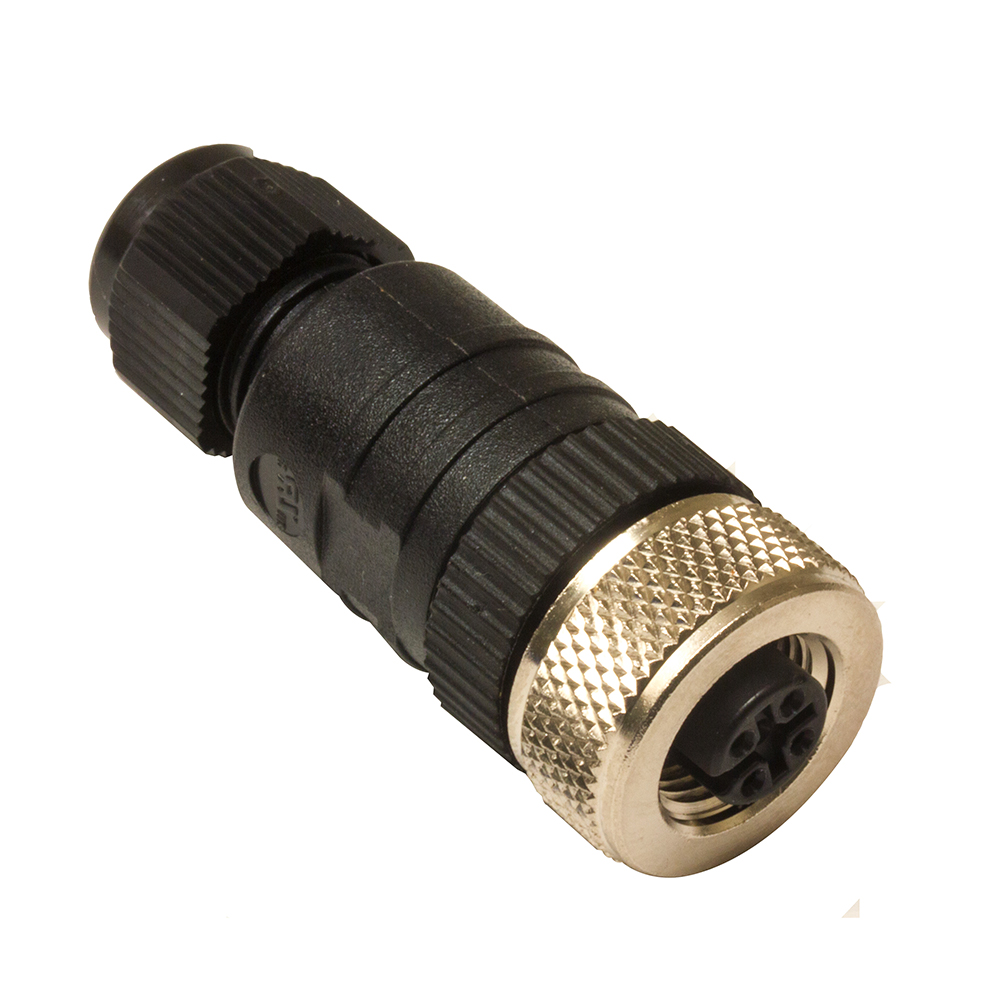

M12-F-Axial,5 p,Field attach.

Connect.M12-F-Axial,5 p,Field attach.
Connector Conn. with terminals M12 5 poles female Axial

Article no.: CL12/0H-00A
Orderable item
Register
  • Description

    Technical Features

    Application
    Fixing screw terminals
    Electrical data
    Rated current 4 A
    Led no
    Wires 5
    Insulation resistance ≥ 100 mΩ
    Contact resistance ≤ 5 mΩ
    Rated voltage 250 V
    Mechanical data
    Connections Field attachable
    Operating temperature -25 °C ... 90 °C
    Head type Axial
    Plug M12
    Outer diameter 3 mm ... 6,5 mm
    Stripping lenght of the sheath 20 mm
    Conductors section 5
    Model Female
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -25 °C ... 90 °C
    Mechanical Protection IP67
