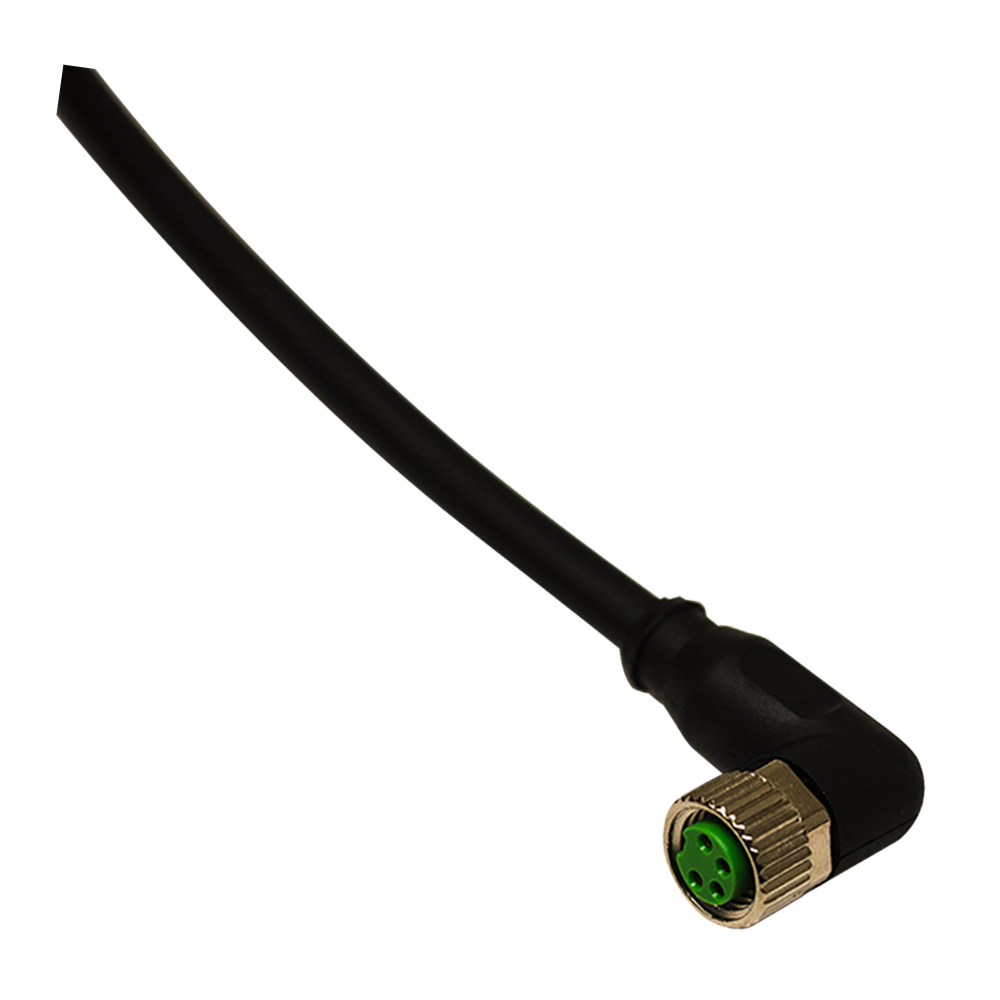

Conn.M8-F,4 poles-2m,PVC,90°

Connect.M8-F,4 poles-2m,PVC,90°
Connector Female M8 90° 4 poles cable PVC 2 m

Article no.: CD08/0B-020C1
In Stock
Register
  • Description

    Technical Features

    Electrical data
    Nominal current Max. 4 A
    Led
    Wires 4
    Rated impulse voltage 0,8 kV
    Nominal voltage Max. 50Vac / 60Vdc
    Mechanical data
    Connections
    Tightening torque 0,6 Nm
    Operating temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Fibre lengh (m) 2
    Head type 90°
    Plug M8
    Outer diameter Ø 4,7 mm ± 5%
    Jacket material PVC (CFC, cadmium, silicon, lead free) Flame retardant according to UL1581VW1/CSA FT1, self-extinguishing
    Wire isolation PVC (CFC, cadmium, silicon, lead free)
    Bending radius Wire for fixed installation: 5 x d Wire for flexible installation: 10 x d
    Conductors section 0,25 mm2 (14 x 0,15 mm2)
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Mechanical Protection IP67
