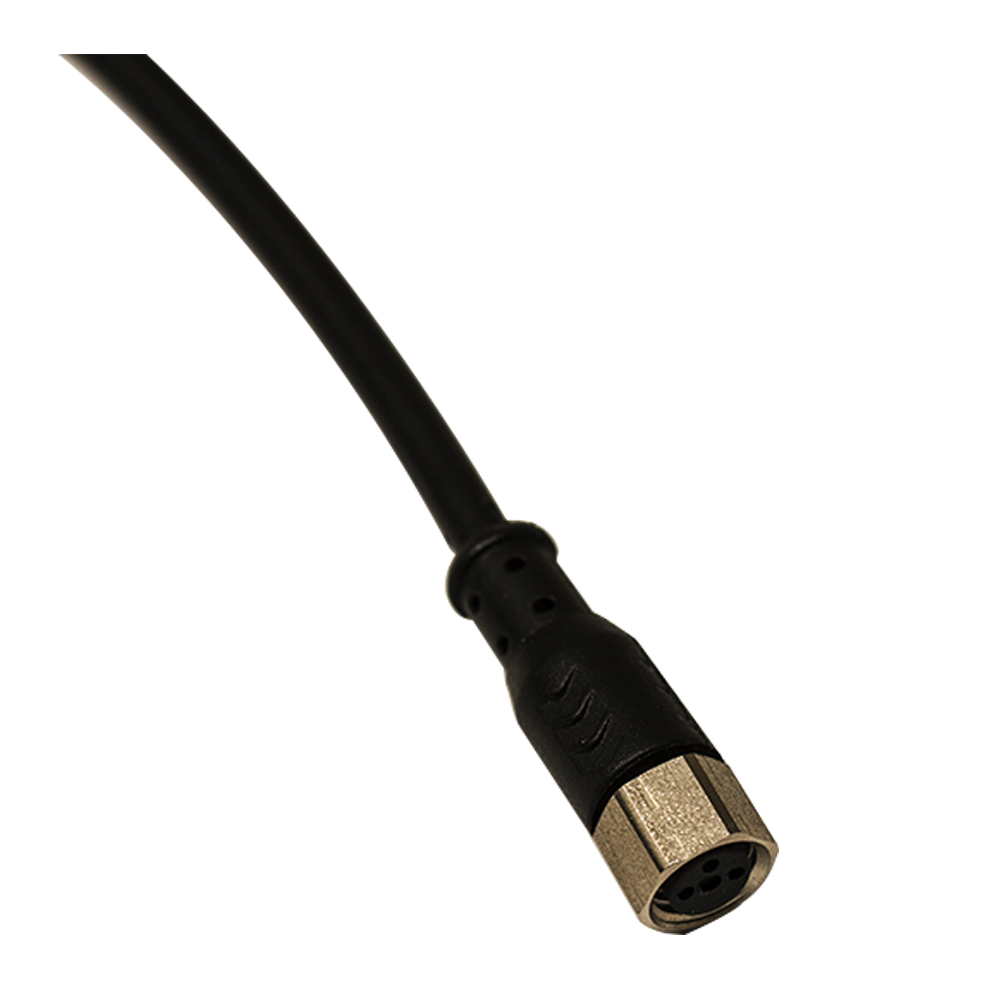

Conn.M8-F,3 poles-2m,PVC,Axial

Connect.M8-F,3 poles-2m,PVC,Axial
Connector Female M8 Axial 3 poles cable PVC 2 m

Article no.: CD08/0A-020A1
In Stock
Register
  • Description
    Overview

    Technical Features

    Electrical data
    Nominal current 4 A
    Led no
    Wires 3
    Rated impulse voltage 0,8 kV
    Nominal voltage Max. 60 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,4 Nm
    Operating temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Fibre lengh (m) 2
    Head type Axial
    Plug M8
    Outer diameter Ø 4,5 mm ± 5%
    Jacket material PVC
    Wire isolation PVC
    Conductors section 0,25 mm2 (32 x 0,10 mm2)
    Model Female
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Mechanical Protection IP67
