Conn.M8-F,3 poles-2m,PUR,Axial

Connect.M8-F,3 poles-2m,PUR,Axial

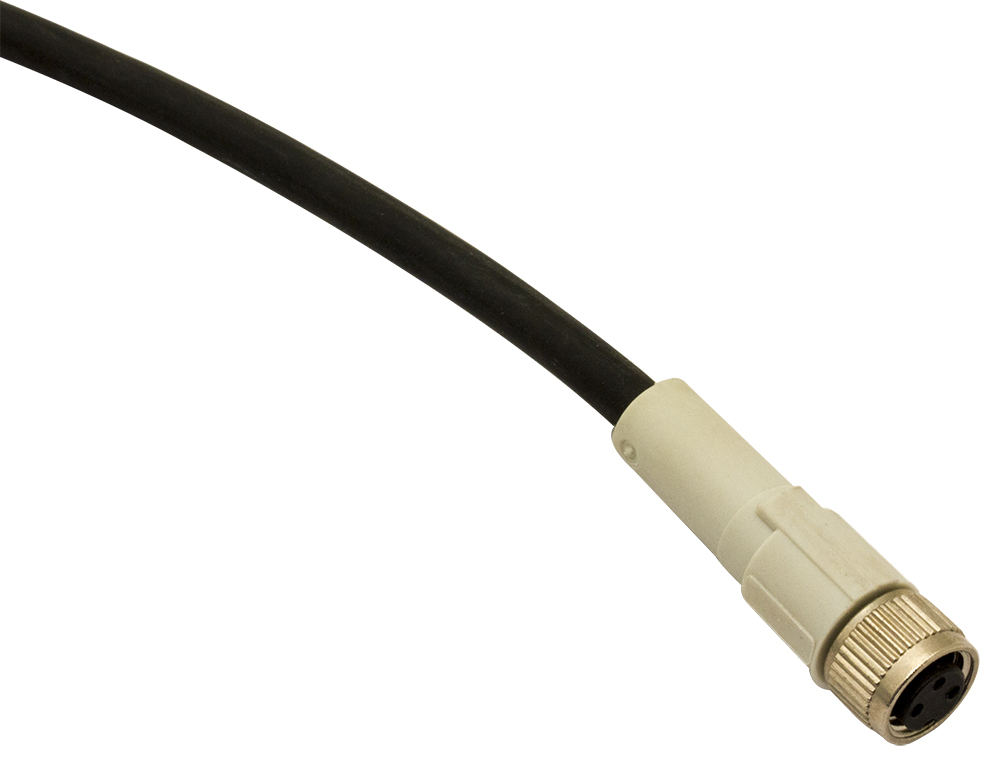

Connector Female M8 Axial 3 poles cable PUR 2 m

Article no.: CD08/0A-020A5
Orderable item
Register
  • Description
    Overview

    Technical Features

    Electrical data
    Nominal current 4 A
    Led no
    Wires 3
    Rated impulse voltage 1,5 kV
    Nominal voltage Max. 60 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,4 Nm
    Operating temperature -5°C...+80°C (flexible installation) -20°C...+80°C (fixed installation)
    Fibre lengh (m) 2
    Head type Axial
    Plug M8
    Outer diameter Ø 3,75 mm ±0,2mm
    Jacket material PUR
    Wire isolation PVC
    Conductors section 0,25 mm2 (32 x 0,10 mm2)
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -5°C...+80°C (flexible installation) -20°C...+80°C (fixed installation)
    Mechanical Protection IP67
