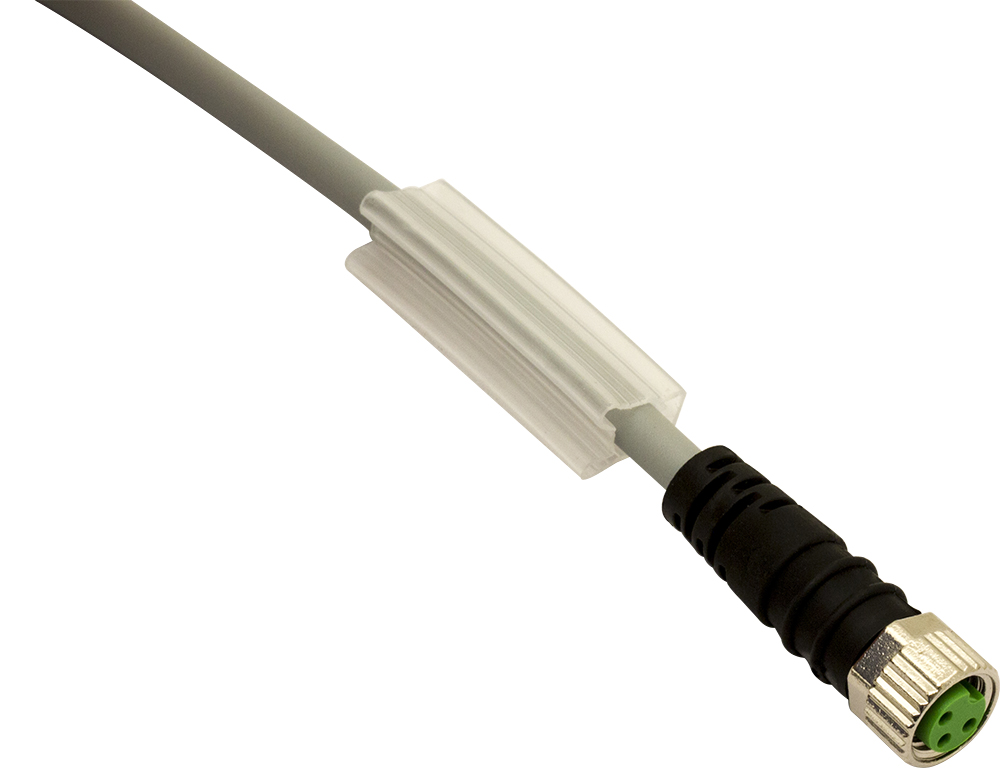

Conn.M8-F,3 poles-15m,PUR,90°

Connect.M8-F,3 poles-15m,PUR,90°
Connector Female M8 90° 3 poles cable PUR 15 m CSA

Article no.: CD08/0A-150C5US
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 4 A
    Led no
    Wires 3
    Rated impulse voltage 1,5 kV
    Nominal voltage Max. 60 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,4 Nm
    Operating temperature -25°C… +80°C (flexible installation)-25°C … +80°C (fixed installation)
    Fibre lengh (m) 15
    Head type 90°
    Plug M8
    Outer diameter Ø 4.1 mm ± 5%
    Jacket material PUR
    Wire isolation PP
    Conductors section 0,25 mm2 (32 x 0,10 mm2)
    Model
    Test/Approvals
    Approvals cCSAus
    Degree of protection IP67
    Generical Data
    Operating Temperature -25°C… +80°C (flexible installation)-25°C … +80°C (fixed installation)
    Mechanical Protection IP67
