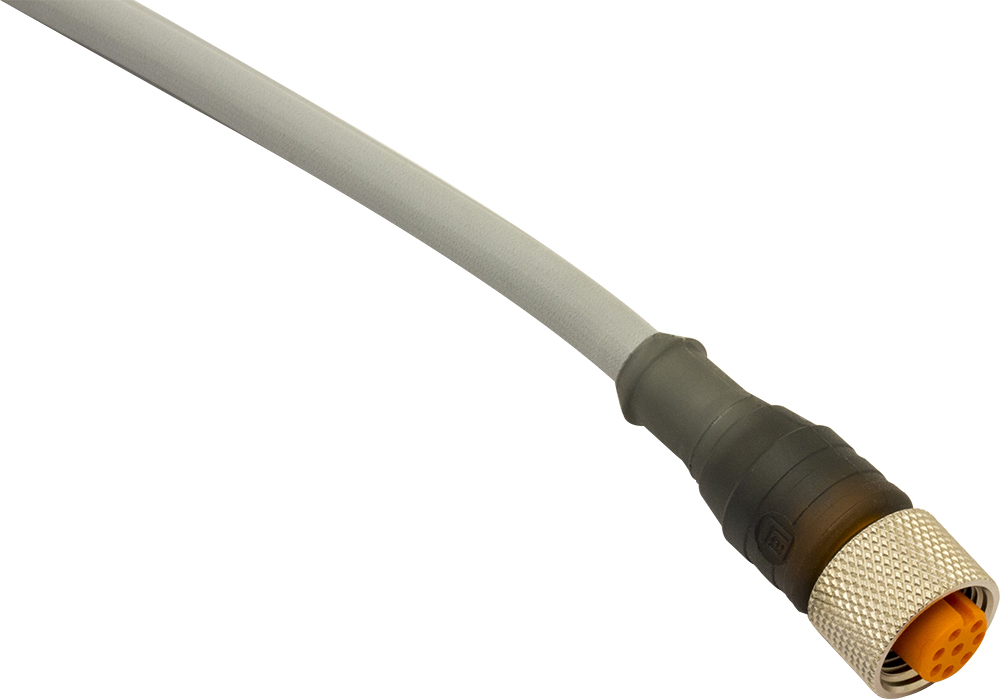

Conn.M12-F,8poles-5m,PUR,Axial

Connect.M12-F,8 poles-5m,PUR,Axial
Connector Female M12 Axial 8 poles cable PUR 5m

Article no.: CD12M/0X-050A5
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 2 A
    Led no
    Wires 8
    Rated impulse voltage 1,5 kV
    Nominal voltage Max. 30 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,6 Nm
    Operating temperature -25°C...+80°C (flexible installation)-25°C...+80°C (fixed installation)
    Fibre lengh (m) 5
    Head type Axial
    Plug M12
    Outer diameter Ø 6,4 mm ± 0,2 mm
    Jacket material TPU
    Wire isolation PP
    Conductors section 0,34 mm2 (42 x 0,10 mm2)
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -25°C...+80°C (flexible installation)-25°C...+80°C (fixed installation)
    Mechanical Protection IP67
