Conn.M12-F,5 poles-10m,PUR,90°

Name: Conn.M12-F,5 poles-10m,PUR,90°
SKU: CD12M/0H-100C5
Availability: BackOrder

Connect.M12-F,5 poles-10m,PUR,90°

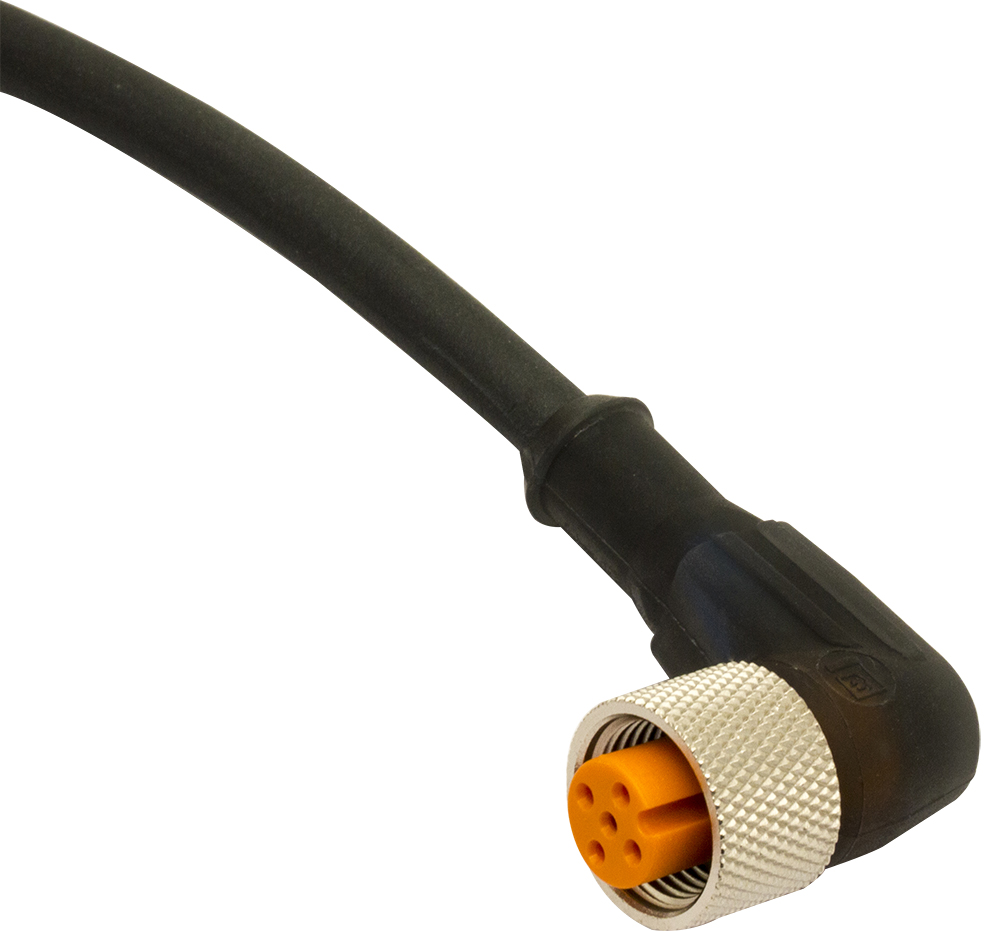

Connector Female M12 90° 5 poles cable PUR 10 m

Article no.: CD12M/0H-100C5

Orderable item

Electrical data

Mechanical data

Connections	With open ended wires
Tightening torque	0,6 Nm
Operating temperature	-5°C ÷ +70°C (flexible installation)-30°C ÷ +80°C (fixed installation)
Fibre lengh (m)	10
Head type	90°
Plug	M12
Outer diameter	Ø 4.5 mm ± 5%
Jacket material	TPU
Wire isolation	TPU
Conductors section	0,25 mm2 (32 x 0,10 mm2)
Model

Test/Approvals

Degree of protection

IP67

Generical Data

Operating Temperature	-5°C ÷ +70°C (flexible installation)-30°C ÷ +80°C (fixed installation)
Mechanical Protection	IP67
