Conn.M12-F,4 poles-5m,PVC,90°

Connect.M12-F,4 poles-5m,PVC,90°

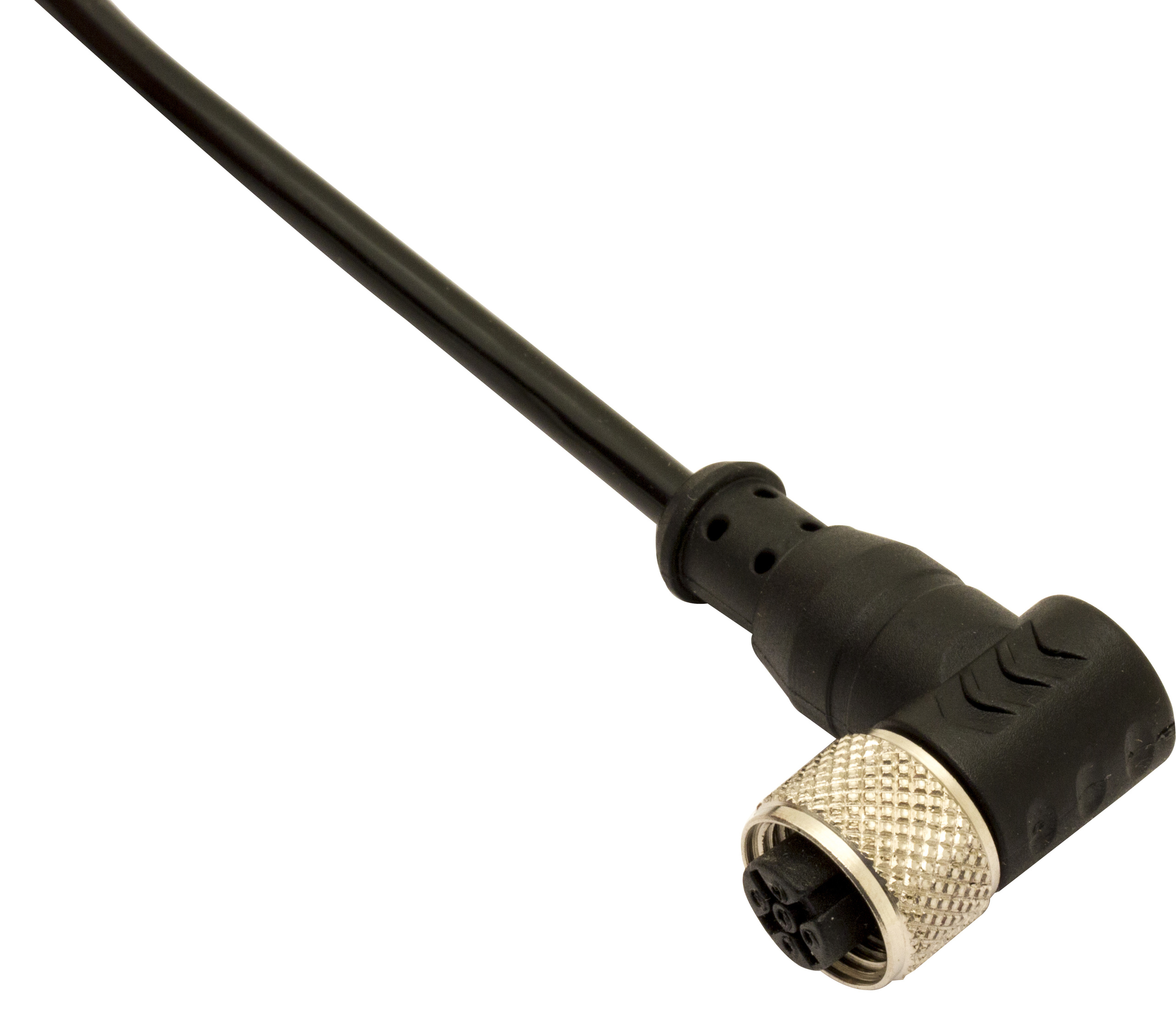

Connector Female M12 90° 4 poles cable PUR/PVC 5 m, IP67, -25°C…+105°C

Article no.: CD12M/0B-050C1HT
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 4 A
    Led no
    Wires 4
    Rated impulse voltage 2,5 kV
    Nominal voltage Max. 250 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,6 Nm
    Operating temperature -25°C...+105°C (fixed installation)
    Fibre lengh (m) 5
    Head type 90°
    Plug M12
    Outer diameter Ø 4,5 mm ± 5%
    Jacket material PVC
    Wire isolation PVC
    Conductors section 0,25 mm2 (32 x 0,10 mm2)
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -25°C...+105°C (fixed installation)
    Mechanical Protection IP67
