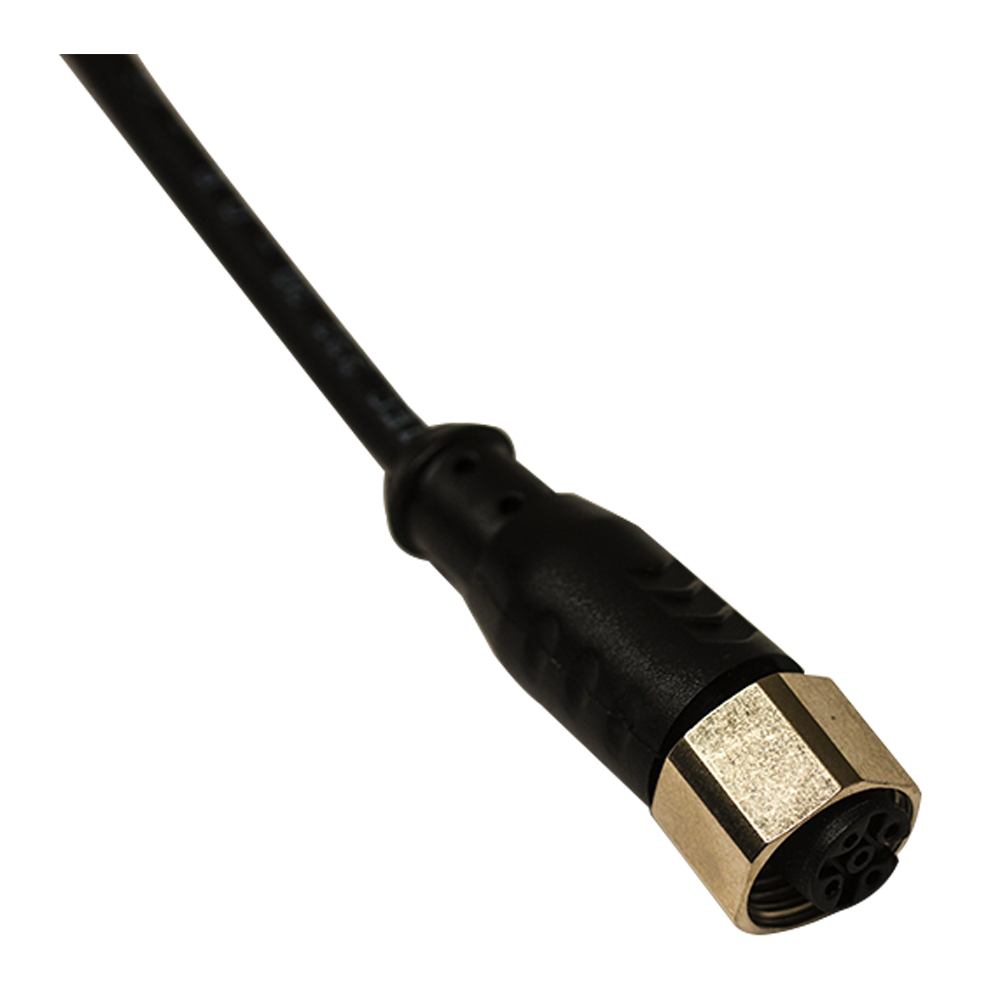

Conn.M12-F,3poles-2m,PVC,Axial

Connect.M12-F,3 poles-2m,PVC,Axial
Connector Female M12 Axial NO 3 poles cable PVC 2m

Article no.: CD12M/AA-020A1
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 4 A
    Led no
    Wires 3
    Rated impulse voltage 2,5 kV
    Nominal voltage Max. 250 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,6 Nm
    Operating temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Fibre lengh (m) 2
    Head type Axial
    Plug M12
    Outer diameter Ø 4,5 mm ± 5%
    Jacket material PVC
    Wire isolation PVC
    Conductors section 0,25 mm2 (32 x 0,10 mm2)
    Model Female
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -10°C...+80°C (flexible installation) -25°C...+80°C (fixed installation)
    Mechanical Protection IP67
