"1/2""-20UNF-F,3pole-AC,PUR,90°"

Connect.1/2"-20UNF-F,3 poles-AC,PUR,90°

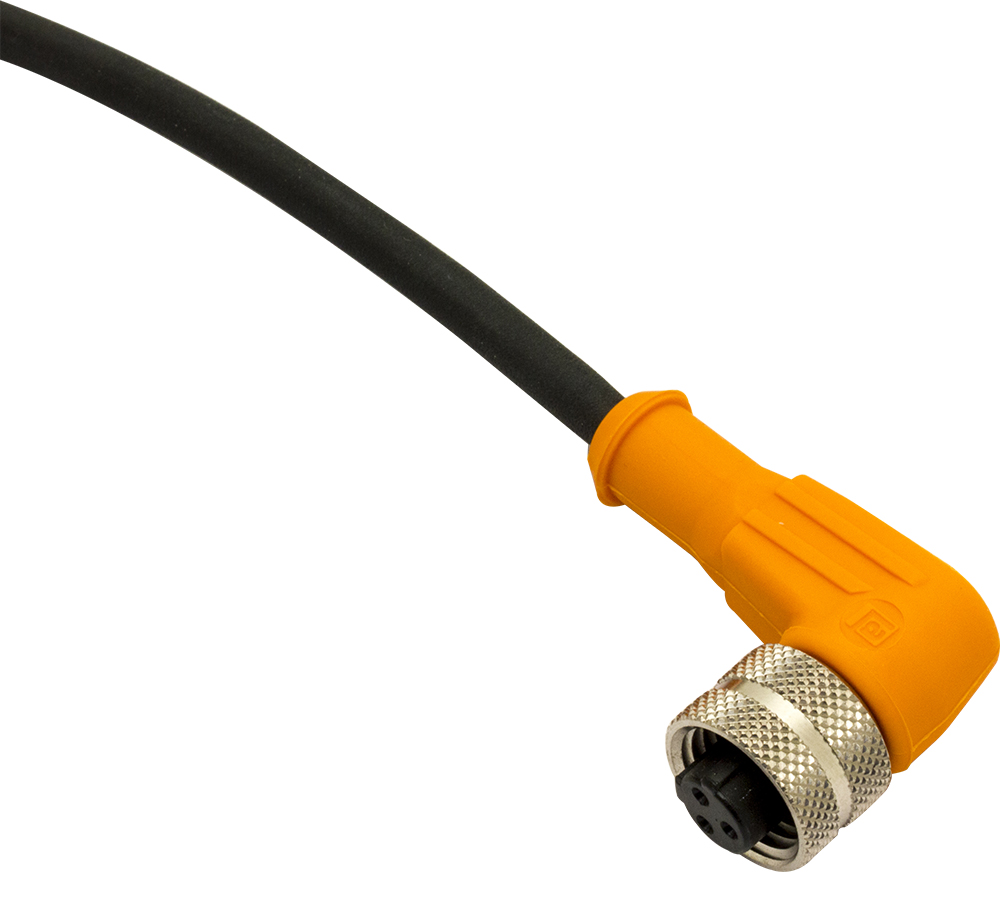

Connector Female 1/2"-20 UNF 90° 2 poles + GND cable 5m TPU for AC

Article no.: CD12M/AC-050C5
Orderable item
Register
  • Description

    Technical Features

    Electrical data
    Nominal current 4 A
    Led No
    Wires 2+PE
    Rated impulse voltage 2 kV
    Nominal voltage Max. 250 V ac/dc
    Mechanical data
    Connections With open ended wires
    Tightening torque 0,6 Nm
    Operating temperature -10°C ...+80°C (flexible installation)-25°C...+80°C (fixed installation)
    Fibre lengh (m) 5
    Head type 90°
    Plug 1/2" - 20UNF
    Outer diameter Ø 4,6 mm ± 5%
    Jacket material TPU
    Wire isolation PVC
    Conductors section 0,50 mm2
    Model
    Test/Approvals
    Degree of protection IP67
    Generical Data
    Operating Temperature -10°C ...+80°C (flexible installation)-25°C...+80°C (fixed installation)
    Mechanical Protection IP67
