SRF-L-80-5-P

Name: SRF-L-80-5-P
SKU: 95B020150
Availability: BackOrder

SRF-L-80-5-P

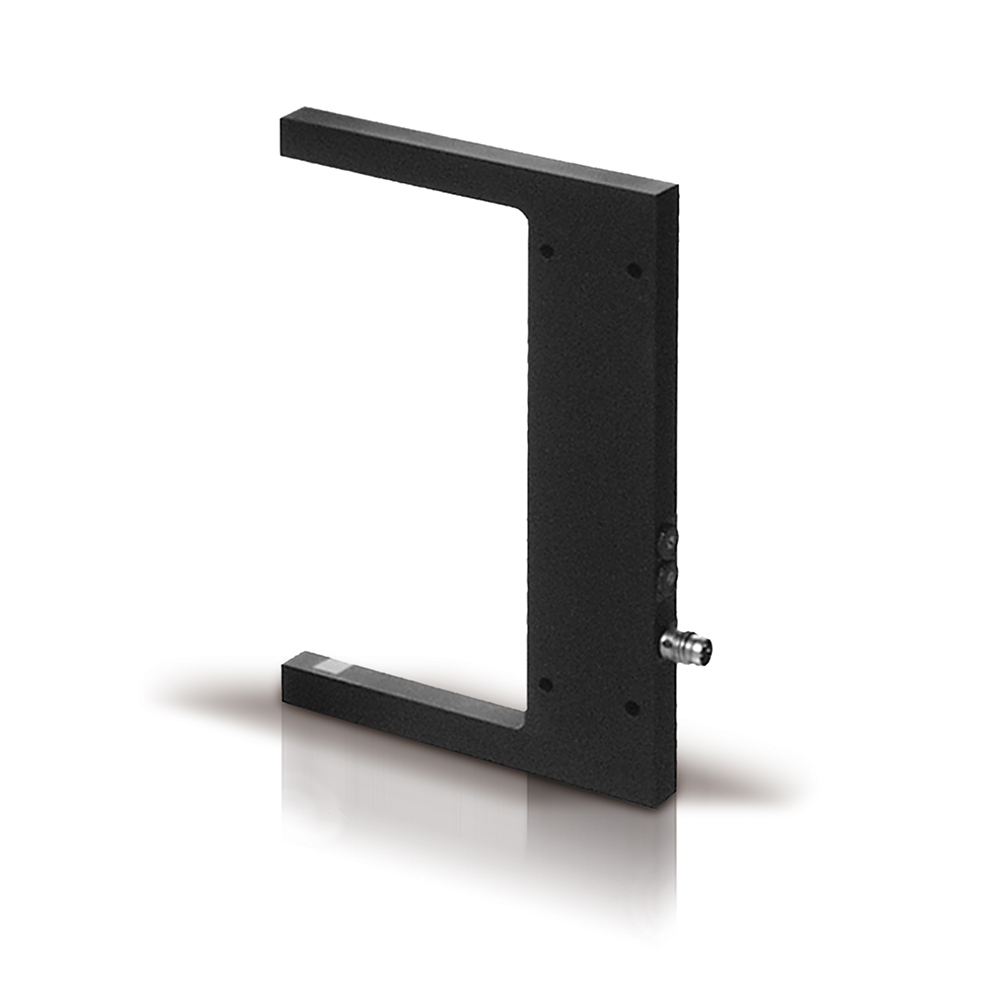

Photoelectric Sensor Photoelectric Fork Red Laser Wide Gap Fork sensor 80 mm. slot pnp - M8

Article no.: 95B020150

Orderable item

Overview Visible red emission modelsHigh resolution LASER modelsSensitivity adjustment trimmer and dark/light selectorsIndustrial metal housing with glass lenses

Technical Features

Detection properties

Nominal sensing distance	80mm
minimum detectable object	0,1mm
Sensitivity adjustment	Trimmer

Application

Function Principle	Fork for small object detection
Description	Slim case - fork slot 80x54 mm
Functions	Fork for small object detection

Outputs

Output type	PNP L/D selectable
Output Function	L/D selectable
Switching frequency	5kHz
Response time	0,1

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 20mA
Load current	≤200mA
Output voltage drop	≤ 3V
LED indicators	yellow OUTPUT LED, green STABILITY LED
Emission	LASER Red
Interference to external light	according to EN 60947-5-2 : 2020

Mechanical data

Dimensions	10x100x79
Housing Material	Metal - Gd-Zn / Glass
Connections	M8 plug 4pin
Storage temperature	- 20°C…+70°C
Material

Test/Approvals

Approvals	CE cULus
Shocks and vibrations	0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)

Generical Data

Dimensions	10x100x79
Operating Temperature	- 10°C…+ 60°C (Without freeze)
Mechanical Protection	IP67
