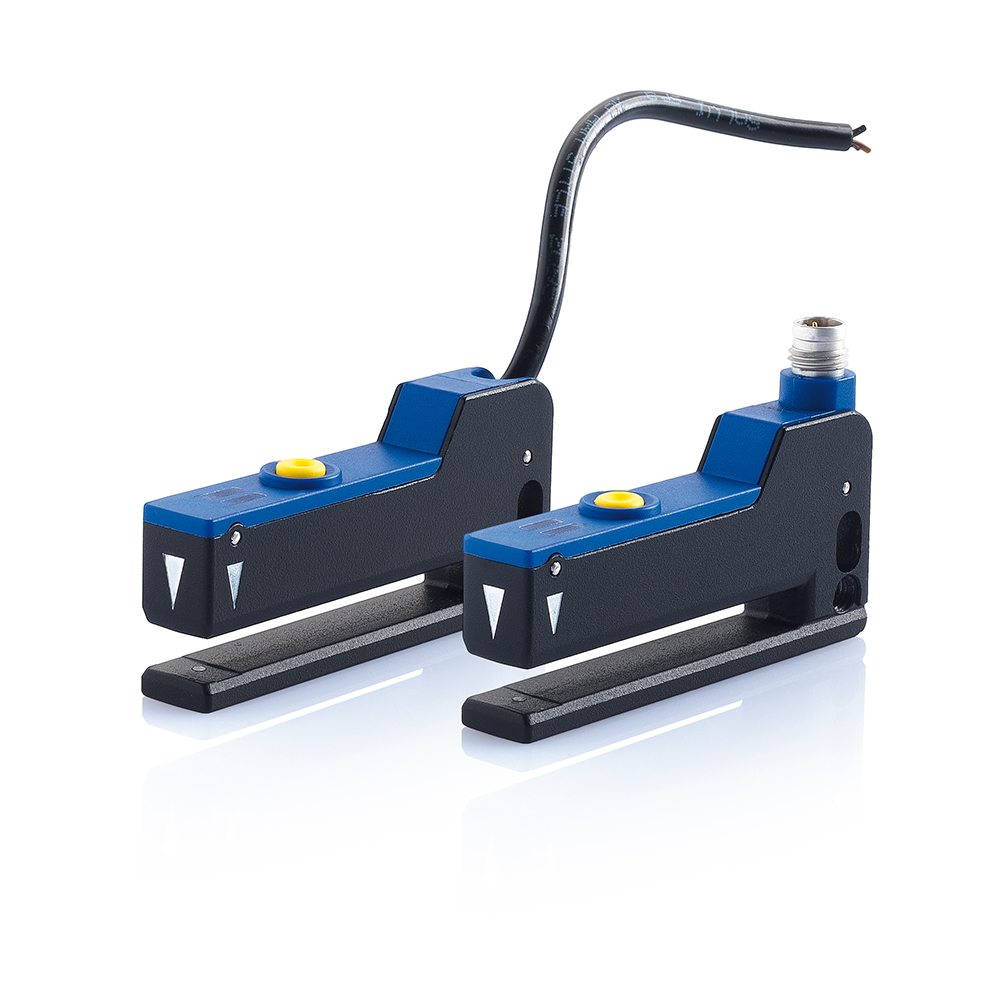

SR23-2-IR-NH 5MM FORK SENSOR CABLE NPN

SR23-2-IR-NH
Photoelectric Sensor Photoelectric Fork Infrared LED emission Wide Gap Label sensor infra red npn ext teach 2mt cable

Article no.: 953161020
Orderable item
Register
  • Description
    Overview Multilayer labels detection Up to 0,5 mm of minimum size labels/gap5 mm slot width50 mm slot depthDynamic or static setting through single push-button12 kHz switching frequencyCompact and robust housing, IP65M8 connector or 2 m cable modelsPNP or NPN models

    Technical Features

    Detection properties
    Nominal sensing distance 5mm
    minimum detectable object 0,5mm
    Sensitivity adjustment Teach-in
    Application
    Function Principle Fork for label detection
    Description Slim case - fork slot 5x50 mm
    Functions Fork for label detection
    Outputs
    Output type NPN Don
    Output Function Don
    Switching frequency 12kHz
    Response time 40 µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Output voltage drop ≤2V
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LED Infrared
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 11x25x64
    Housing Material Metal - Zamak / PBT
    Connections 2m cable
    Active Head Material PMMA
    Storage temperature - 20°C…+70°C
    Material
    Depth slot detection 50,5mm
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 11x25x64
    Operating Temperature - 20°C…+ 55°C
    Mechanical Protection IP65
