Slot labelling 3mm width IR
Slot labelling 3mm width IR

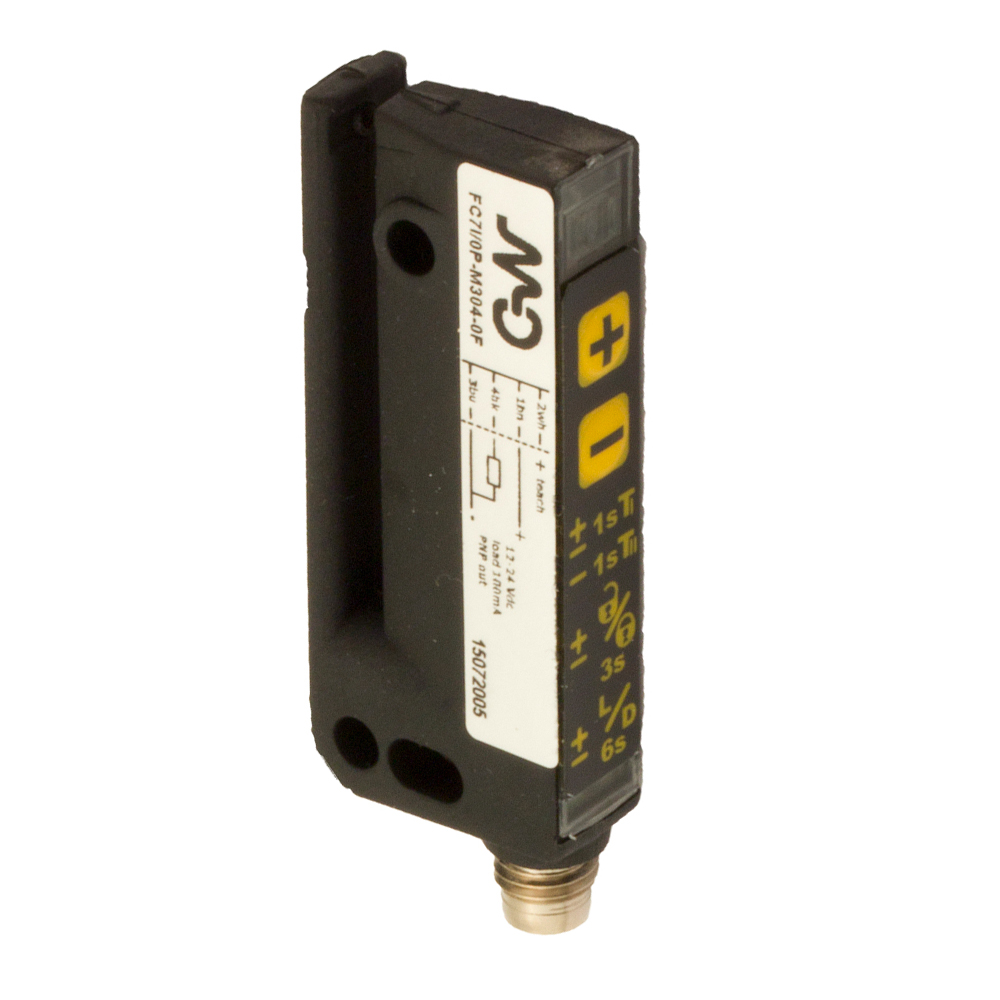

Slot sensor for labels detection 3 mm width 42 mm depth IR emission PNP+NPN M8 4P
In Stock
-
Description
Overview Dinamic Teach-in or control panel and manual adjustment with “+/-” buttons Minimum object detection 2 mm (gap between labels), 2 mm (label size) Infrared emission Light/Dark switching, selectable by button Switching frequency 10 kHz M8 connectors (4 pins): PNP or NPN, LO/DO selectable -20 ...+60 °C temperature range
Technical Features
Detection propertiesNominal sensing distance 3mm minimum detectable object 2mm Sensitivity adjustment Teach-in +/-50 µm a 150m/min +/-50 µm at 150m/min 200 m/min 200 m/min 2mm 2mm ApplicationFunction Principle Photoelectric slot OutputsOutput type NPN / PNP L/D Selectable Output Function L/D Selectable Switching frequency 10Khz Response time 50 µs Electrical dataOperating Voltage 12...24VDC No-Load supply current ≤ 35mA Load current ≤100mA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (status output), Red (adjustment or block keypad) Time delay before availability ≤200ms Reverse Polarity Protection Yes Emission LED Infrared Mechanical dataDimensions Width slot detection 3mm - Depth slot detection 42mm Weight 35g Housing Material PA Connections M8 plug 4pin Operating temperature - 20°C…+ 60°C Storage temperature - 30°C…+ 80°C Width slot detection 3mm Depth slot detection 42mm Test/ApprovalsApprovals CE UL EMC compatibility EN 60947-5-2 Degree of protection IP65 Generical DataDimensions Width slot detection 3mm - Depth slot detection 42mm Operating Temperature - 20°C…+ 60°C (Without freeze) Mechanical Protection IP65
