Slot 50mm width 59mm depth ADJ
Slot 50mm width 59mm depth ADJ

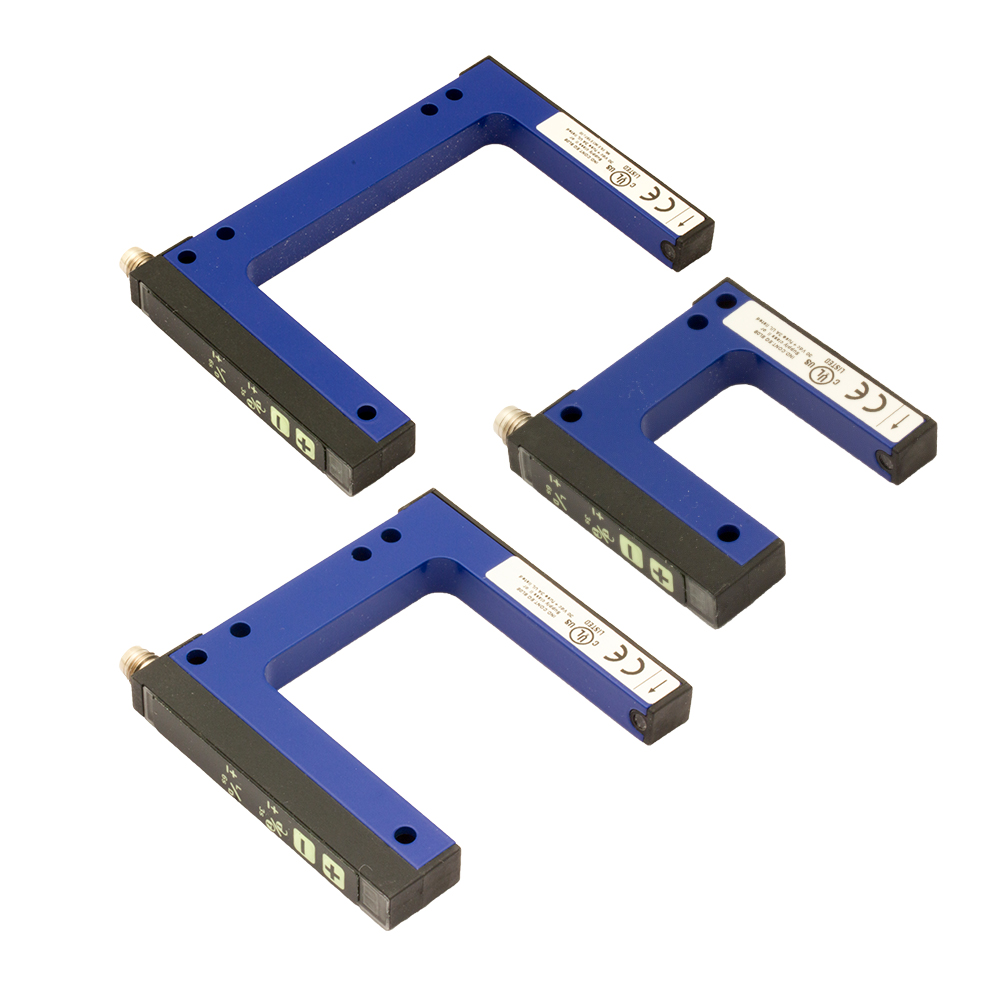

Slot sensor 50 mm 59 mm depth width with sens. adj. IR emission PNP/NPN NO/NC M8 4P
In Stock
-
Description
Overview Simple and accurate adjustment manually by -/+ buttons Infrared emission; LASER emission class 1 Metal housing Light/Dark switching, selectable by button Minimum size object detection 0,2 mm (FC6I) and 0,05 mm (FC6L) -20…+60 °C temperature range M8 connectors (4pins): PNP/NPN, LO/DO Switching frequency 10 kHz
Technical Features
Detection propertiesNominal sensing distance 50mm minimum detectable object 0.2mm Sensitivity adjustment Teach-in ApplicationFunction Principle Photoelectric slot OutputsOutput type NPN / PNP L/D Selectable Output Function L/D Selectable Switching frequency 10kHz Response time 50 µs Electrical dataOperating Voltage 12...24VDC No-Load supply current ≤ 40mA Load current ≤100mA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (status output), Red (adjustment or block keypad) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Infrared Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight) Mechanical dataDimensions Width slot detection 50mm - Depth slot detection 59mm Weight 85g Housing Material Painted aluminium Connections M8 plug 4pin Active Head Material Polyamide/glass Operating temperature - 20°C…+ 60°C Storage temperature - 30°C…+ 80°C Width slot detection 50mm Depth slot detection 59mm Test/ApprovalsApprovals CE UL EMC compatibility EN 60947-5-2 Degree of protection IP65 Generical DataDimensions Width slot detection 50mm - Depth slot detection 59mm Operating Temperature - 10°C…+ 60°C (Without freeze) Mechanical Protection IP65 -
