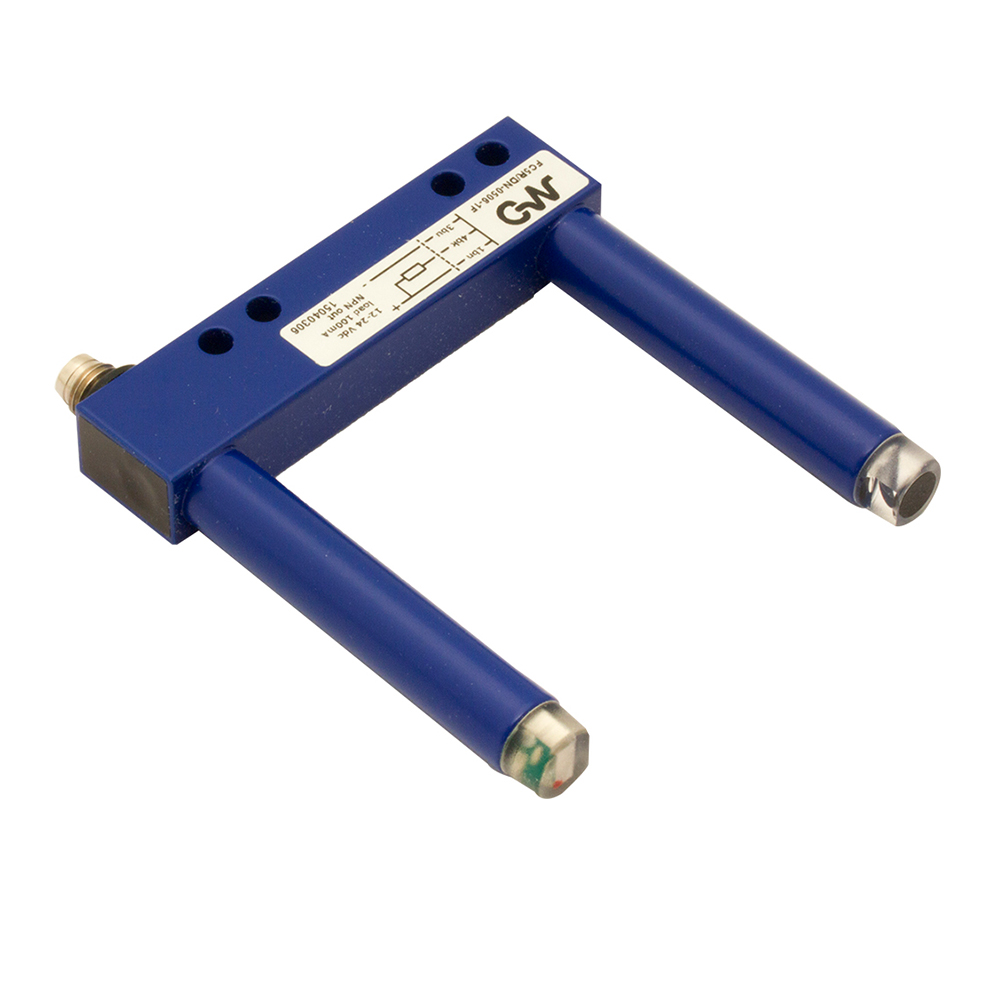

Slot 30mm width 40mm depth
Slot 30mm width 40mm depth
Slot sensor 30 mm width 40 mm depth RED LED 12..24Vdc NPN-NC M8
Orderable item
-
Description
Overview Plug and Play without adjustment High power RED LED emission Minimum size object detection 0,8 mm Metal housing Connettore M8 a 3 pins LED Indicator high visibility Switching frequency 4 KHz -10…+60 °C operating temperature range 3 wires: PNP or NPN, LO or DO
Technical Features
Detection propertiesNominal sensing distance 30mm minimum detectable object 0,8mm Si Yes Sensitivity adjustment No ApplicationFunction Principle Photoelectric slot OutputsOutput type NPN Lon Output Function Lon Switching frequency 4kHz Response time 125µs Electrical dataOperating Voltage 12...24VDC No-Load supply current ≤ 20mA Load current ≤100mA Output voltage drop ≤1,5V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (status output) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Red Interference to external light 5000lux (incandescent lamp), 10000lux (sunlight) Mechanical dataDimensions Width slot detection 30mm - Depth slot detection 40mm Weight 80g Housing Material Painted aluminium Connections M8 plug 3pin Active Head Material Polyamide/glass Operating temperature - 10°C…+ 60°C Storage temperature - 40°C…+ 80°C Width slot detection 30mm Depth slot detection 40mm Test/ApprovalsApprovals CE UL EMC compatibility EN 60947-5-2 Degree of protection IP67 Generical DataDimensions Width slot detection 30mm - Depth slot detection 40mm Operating Temperature - 10°C…+ 60°C (Without freeze) Mechanical Protection IP67 -
