M18,PNP-NO/NC,M12,Fiber ampli

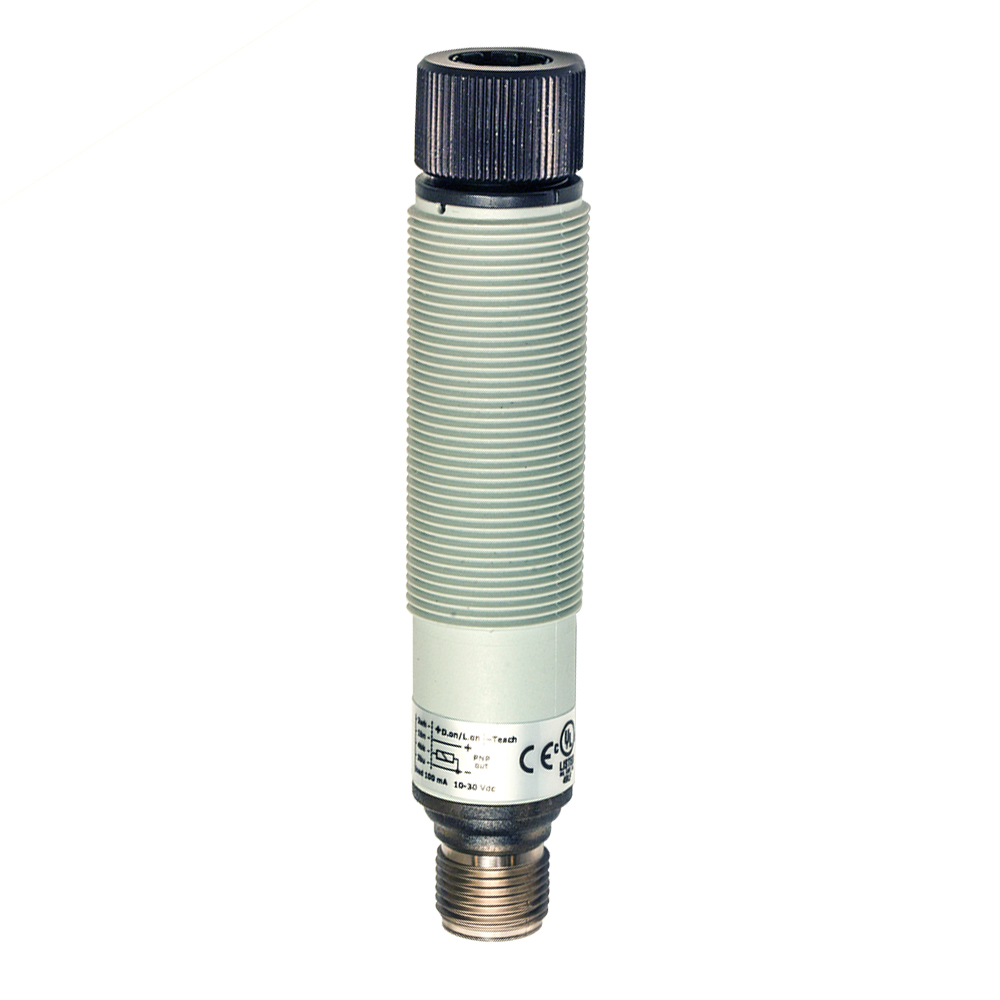

Photo.M18,PNP-NO/NC,M12 plug,Fiber ampli
Optical Fibre Amplifier M18 10...30Vdc PNP L/D Teach-in plast. conn. M12
Orderable item
-
Description
Overview Models with sensitivity adjustment by teach-in button With range of optical fibres are available LED status indicator for all versions Complete protection against electrical damages Approvals: CE and cULus listed
Technical Features
Detection propertiesNominal sensing distance Depending on optical fibres used Thermal drift of Sr 10 % Sr Repeat Accuracy 5% Sensitivity adjustment Teach-in ApplicationFunction Principle Optic fiber amplifier Optic position Axial OutputsOutput type PNP L/D Selectable Output Function L/D Selectable Switching frequency 800Hz Response time 625µs Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 20mA Load current ≤100mA Leakage current ≤ 10 µA Output voltage drop ≤2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (output status) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Red (660nm) Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight) Impulsive Overvoltage Protection Yes Mechanical dataDimensions M18 x 1 / L = 90mm Weight 30 g Housing Material PBT / PC plug Connections M12 plug Active Head Material Depending on optical fibres Tightening torque 1Nm Operating temperature - 25°C…+ 70°C (without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility EN 60947-5-2 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1 / L = 90mm Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP67
