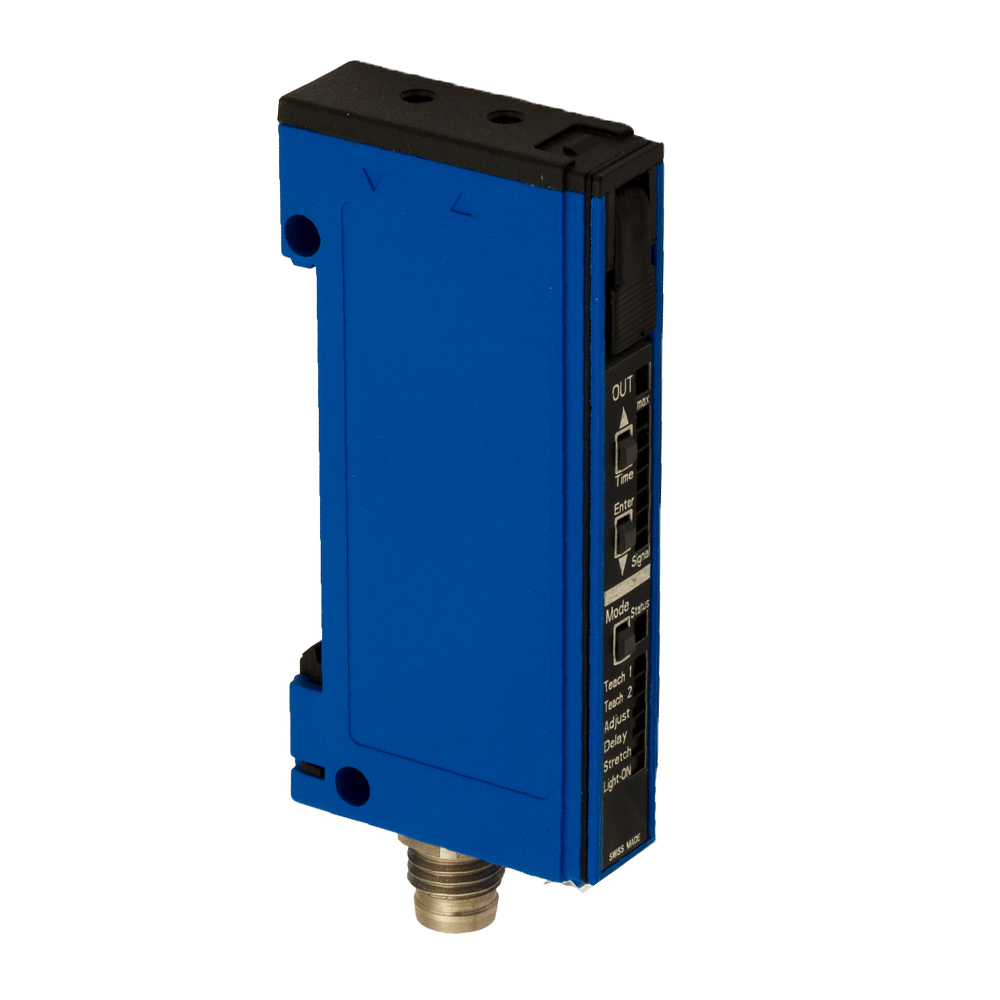

Photo.DIN rail,PNP-NO/NC,Cable,Fiber amp
Optical Fibre Amplifier DIN rail 10..30Vdc PNP NO/NC tri mmer cable 2m

Article no.: FX3/0P-0A

Orderable item

Overview Fibre-optic amplifier for DIN-rail mounting (DIN/EN 50022) Distance setting by means of teach in with additional manual fine adjustment (FX4) Distance setting by means of 12-turn potentiometer with illuminated scale (FX3) Adjustable pulse delay and stretching (FX4) High switching frequency: 1,5 kHz Ideal for stacking, thanks to 10 mm housing width Teach 1 (background), Teach 2 (target and background) (FX4) Large setting range of 20...200 mm

Technical Features

Detection properties

Nominal sensing distance	Depending on optical fibres used
Operative range
Thermal drift of Sr
Sensitivity adjustment	Trimmer
Hysteresis

Application

Function Principle	Optic fiber amplifier
Optic position	Axial

Outputs

Output type	PNP L/D Selectable
Output Function	L/D Selectable
Switching frequency	≤ 1,5Khz
Response time	333µs

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 15mA
Load current	≤200mA
Leakage current	≤ 0,1mA
Output voltage drop	≤2V@Iload=200mA
Max ripple content	≤10%
LED indicators	Orange (output active); green (n.4 - received signal level); red (no received signal)
Time delay before availability	≤200ms
Short-circuit protection
Reverse Polarity Protection
Emission	LED Red (660nm)
Interference to external light	5.000lux (incandescent lamp), 10.000lux (sunlight)
Impulsive Overvoltage Protection

Mechanical data

Dimensions
Weight
Housing Material	PBTP
Connections	2m PVC cable
Operating temperature
Diameter/Dimension	Cubic

Test/Approvals

Approvals	CE
EMC compatibility	EN 60947-5-2
Shocks and vibrations
Degree of protection	IP64

Accessories

Supplied Accessories

DIN mounting bracket

Generical Data

Dimensions	80 x 31,1 x 10 mm
Operating Temperature	- 25°C…+ 55°C (Without freeze)
Mechanical Protection	IP64
