S85-MH-5-Y13-OOY TOF DISTANCE 20M RS485

S85-MH-5-Y13-OOY

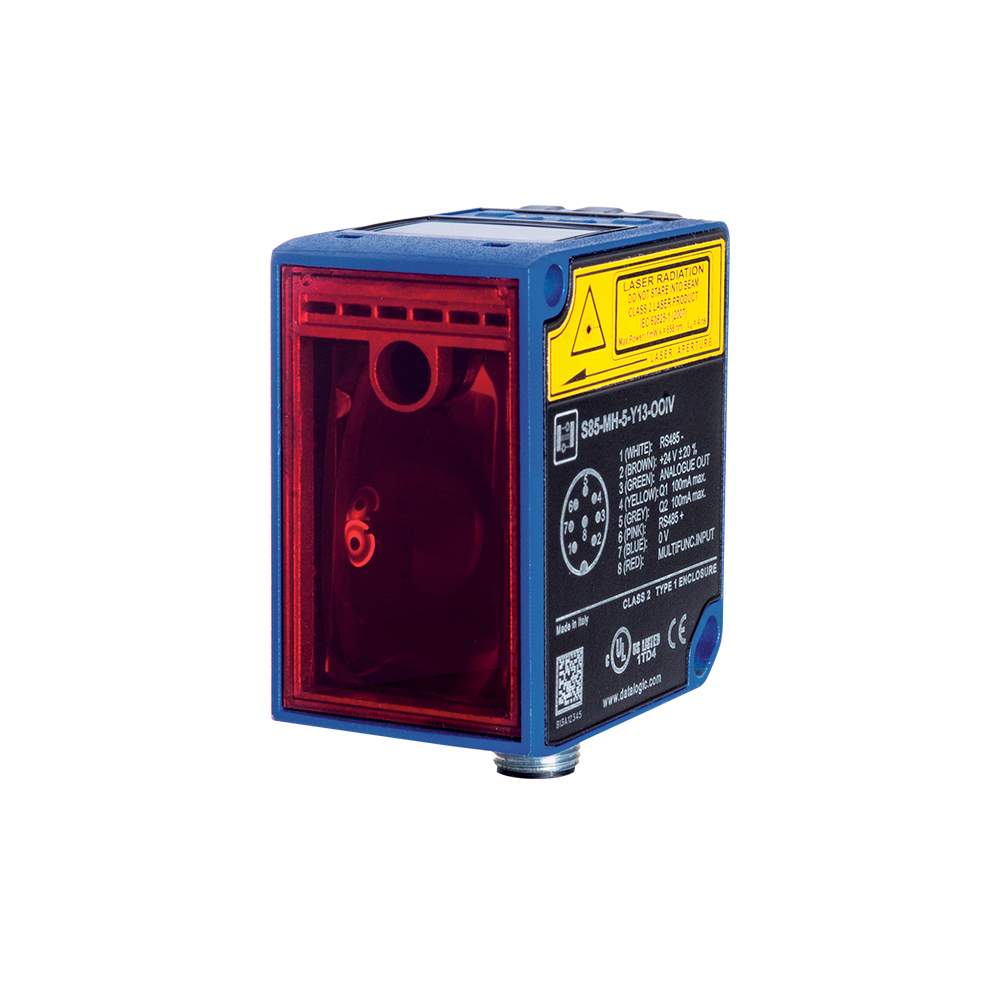

Photoelectric Sensor Cubic RED Laser TOF distance sensor 20m - RS485 - whith display - M12 8p

Article no.: 951511040
In Stock
Register
  • Description
    Overview Time of Flight technology Class 2 visible red LASER for an easy alignment with the targetMeasuring range up to 10m or 20m in the advanced model1 mm resolution, 7 mm accuracy, 1 mm repeatability 4-20 mA or 0-10 V scalable analog output and 2 digital outputsRS485 serial interface in the advanced modelStandard M12 connectorIP67 Industrial metal housing

    Technical Features

    Detection properties
    Nominal sensing distance 20m
    Resolution 1mm
    Sensitivity adjustment Teach-in
    Application
    Function Principle Distance sensor - Time of Flight
    Description Large case vertical mount
    Optic position Radial 90°
    Functions Distance sensor - Time of Flight
    Outputs
    Output type NPN/PNP, RS485
    Response time 15ms (fast) 30ms (medium) 45ms (slow)
    Electrical data
    Operating Voltage 24VDC± 20%
    No-Load supply current ≤ 3W
    LED indicators Yellow (outputs Q1, Q2) Green/Red (Power/out of range) 5-digits multi display
    Short-circuit protection YES
    Reverse Polarity Protection Yes
    Emission LASER Red (658nm)
    Interference to external light according to EN 60947-5-2 : 2020
    Impulsive Overvoltage Protection Yes
    Insulation resistance >20 MΩ 500 Vdc, between electronics and housing
    Contact resistance 500 Vac 1 min., between electronics and housing
    Mechanical data
    Dimensions 37x62x60
    Housing Material Metal cast die zinc
    Connections M12 plug
    Active Head Material PMMA
    Storage temperature - 25°C…+70°C
    Material Metal - Zamak / PMMA
    Diameter/Dimension Cubic
    Test/Approvals
    Approvals CE cULus
    Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6)
    Generical Data
    Dimensions 37x62x60
    Operating Temperature - 15°C…+ 50°C
    Mechanical Protection IP67
