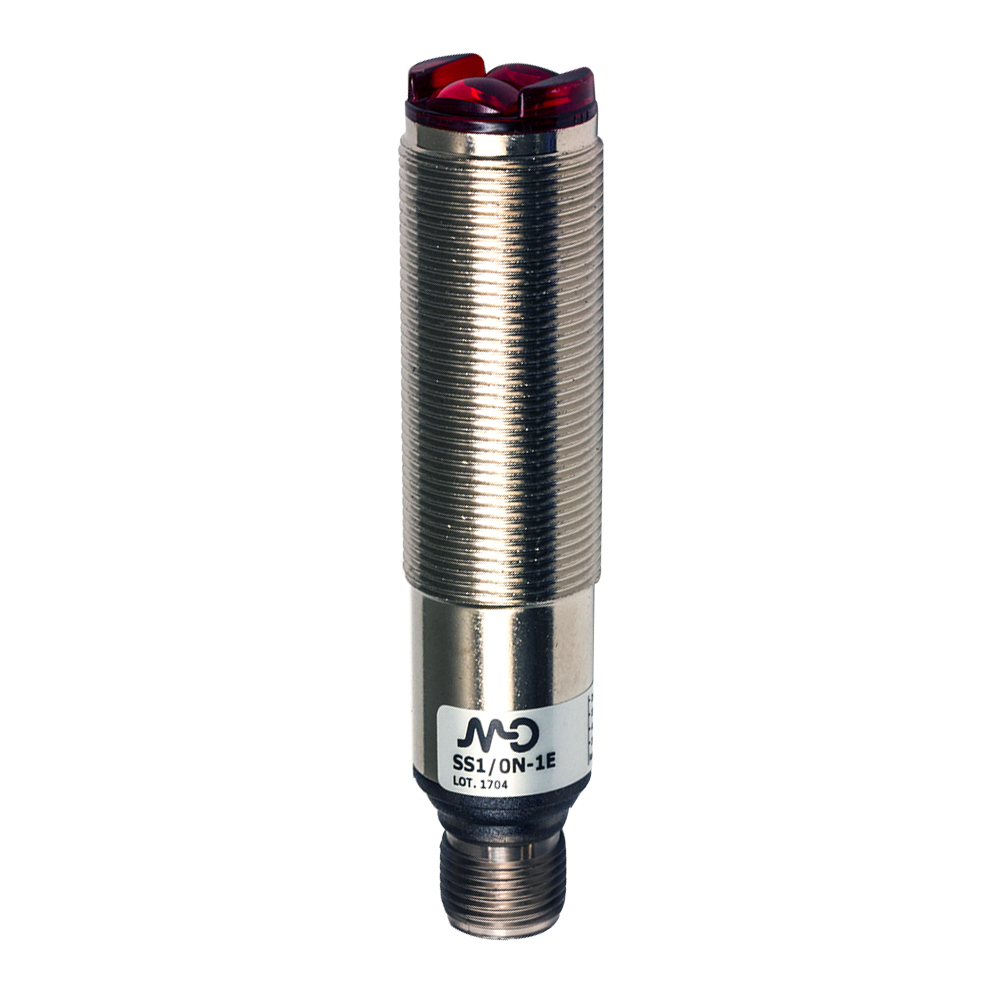

Photoelectric sensor M18 Bgs 50 mm PNP Lon metal conn. M12
Orderable item
-
Description
Overview Models with side sens. adjustment on axial and right angle optic LO/DO selectable output ATEX models, cat. 3, available on request LED status indicator for all versions Complete protection against electrical damages IP67 protection degree for all models Approvals: CE and cULus listed
Technical Features
Detection propertiesNominal sensing distance 50mm Thermal drift of Sr ≤10% Sr Repeat Accuracy 5% minimum detectable object 1mm Sensitivity adjustment No ApplicationFunction Principle Blackground suppression Notes white target Kodak 90% 100 x 100mm Optic position Axial OutputsOutput type PNP Lon Output Function Lon Switching frequency 1Khz Response time 500µs Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 30mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤1,2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (status output) Time delay before availability ≤200ms Short-circuit protection Yes Reverse Polarity Protection Yes Emission LED Red (660nm) Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Impulsive Overvoltage Protection Yes Mechanical dataDimensions M18 x 1 /L =78mm Weight 100g Housing Material Nickel plated brass / PC plug Connections M12 plug Active Head Material PMMA Tightening torque 25Nm Operating temperature - 25°C…+ 70° C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1 /L =78mm Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP67 -
