Photo.M18,NPN-NO/NC,Cable,Diff

Photo.M18,NPN-NO/NC,Cable,Diffuse

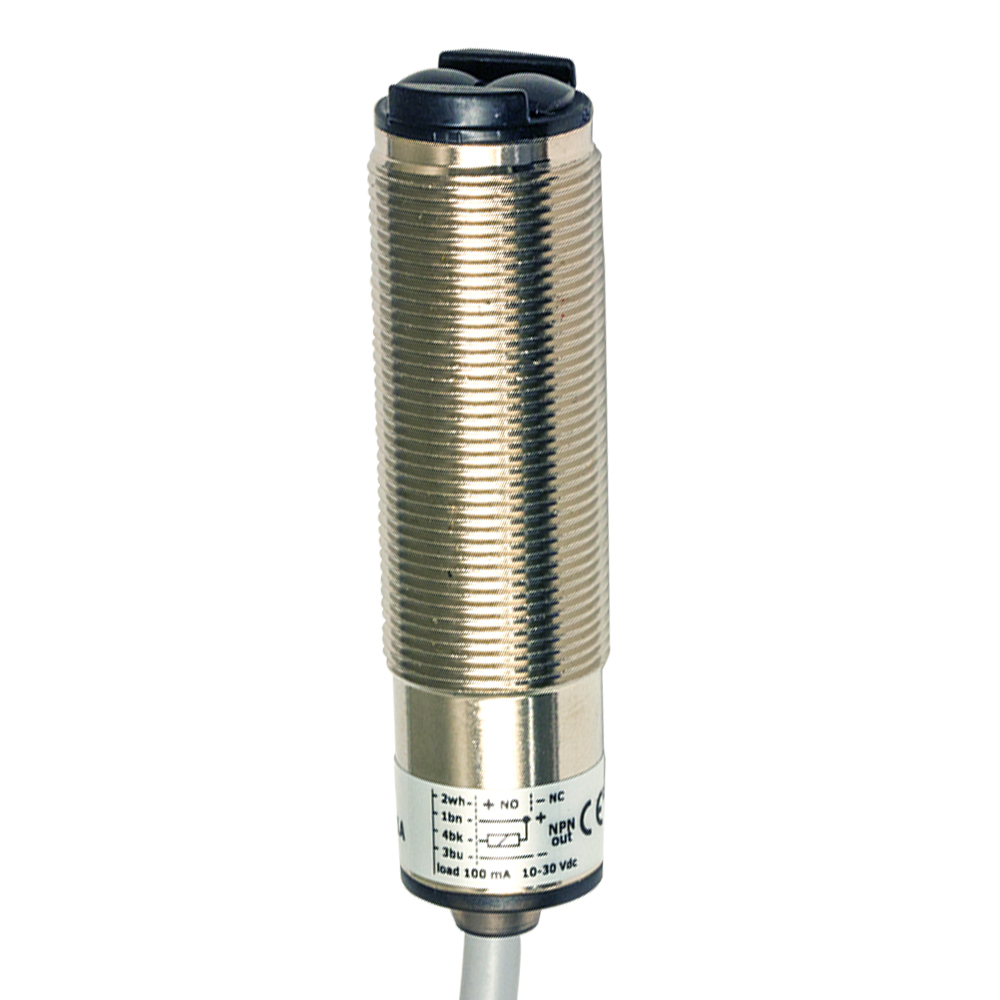

Photoelectric sensor M18 Diffuse 800 mm NPN L/D met. Adj.. cable 5m

Article no.: SS8/0N-1A86
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 1m
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Diffuse reflection (long distance, >600mm)
    Notes white target Kodak 90% 400 x 400mm
    Optic position Axial
    Outputs
    Output type NPN L/D Selectable
    Output Function L/D Selectable
    Switching frequency 250Hz
    Response time 2ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤1,2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Yellow (status output)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Infrared (880nm)
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Housing Material Nickel plated brass / PC cable exit
    Connections 5m PVC cable
    Active Head Material PMMA
    Tightening torque 1Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cULus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories nuts M18 x 1, screwdriver
    Generical Data
    Dimensions M18 x 1/L=63,9mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
