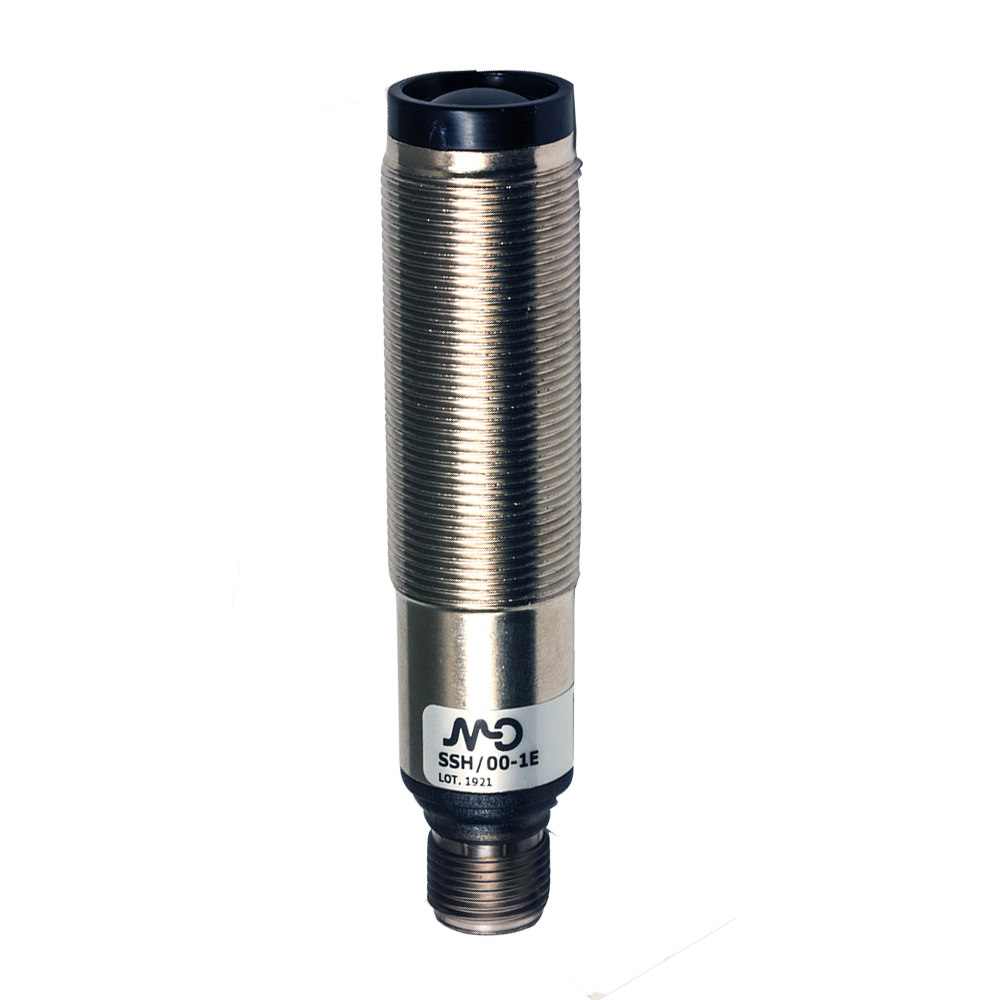

Ph.M18,IR emiss.,M12,Emitter

Name: Ph.M18,IR emiss.,M12,Emitter
SKU: SSH/00-1E
Availability: BackOrder

Photo.M18,IR emiss.,M12 plug,Emitter
Photoelectric sensor M18 Emitt. 14 m metal conn. M12

Article no.: SSH/00-1E

Orderable item

Overview Models with side sens. adjustment on axial and right angle optic LO/DO selectable output ATEX models, cat. 3, available on request LED status indicator for all versions Complete protection against electrical damages IP67 protection degree for all models Approvals: CE and cULus listed

Technical Features

Detection properties

Nominal sensing distance	14m
Thermal drift of Sr	≤10% Sr

Application

Function Principle	Emitter
Emitter/Receiver	Emitter
Optic position	Axial

Outputs

Output type

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 40mA
Max ripple content	≤10%
LED indicators	Yellow(powerON)
Time delay before availability	≤200ms
Reverse Polarity Protection	Yes
Emission	LED Infrared (880nm)
Impulsive Overvoltage Protection	Yes

Mechanical data

Dimensions	M18 x 1 /L =78mm
Weight	100g
Housing Material	Nickel plated brass / PC plug
Connections	M12 plug
Active Head Material	PMMA
Tightening torque	25Nm
Operating temperature	- 25°C…+ 70° C (Without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE cULus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M18 x 1

Generical Data

Dimensions	M18 x 1 /L =78mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
