M18,PNP-NO/NC,M12 90°,Reflex

Photo.M18,PNP-NO/NC,M12 plug 90°,Reflex

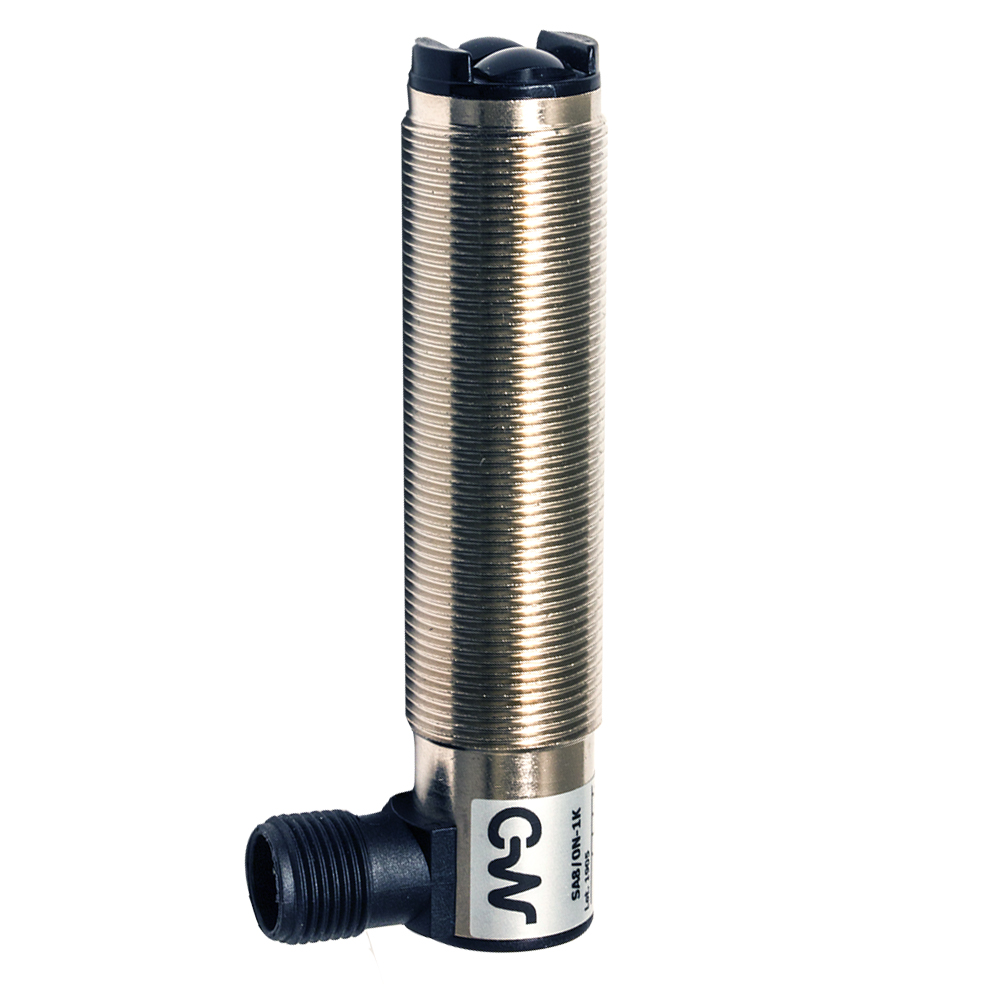

Photoelectric sensor M18 M18 Retroreflective 6 m PNP NO/NC met. con. M12 90° glass optic

Article no.: SAC/0P-1KDA
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 6m
    Thermal drift of Sr 10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment Trimmer
    Application
    Function Principle Retroreflex
    Notes On RL110 reflector
    Optic position Axial
    Outputs
    Output type PNP L/D Selectable
    Output Function L/D Selectable
    Switching frequency 1Khz
    Response time 500µs
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 30mA
    Load current ≤100mA
    Leakage current ≤10µA
    Output voltage drop ≤2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Green (powerON), Yellow (Status output)
    Time delay before availability ≤200ms
    Short-circuit protection Yes
    Reverse Polarity Protection Yes
    Emission LED Infrared (880nm)
    Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight)
    Mechanical data
    Housing Material Nickel-plated brass / Nylon plug
    Connections M12 plug 90°
    Active Head Material PMMA
    Tightening torque 25Nm
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories Nuts M18 x 1
    Generical Data
    Dimensions 21,4mmx90mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
