M18,NPN-NO/NC,M12 90°,Diffuse

Name: M18,NPN-NO/NC,M12 90°,Diffuse
SKU: SA6/0N-1K
Availability: BackOrder

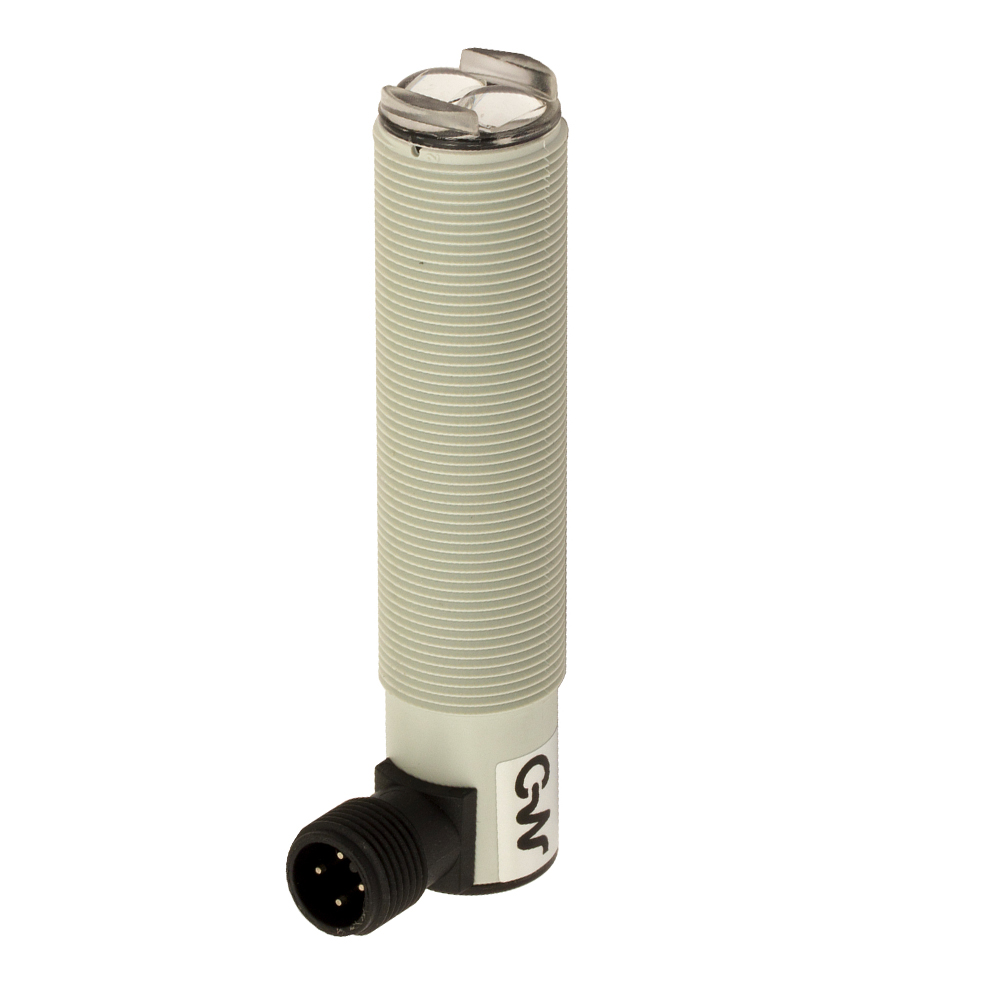

Photo.M18,NPN-NO/NC,M12 plug 90°,Diffuse
Photoelectric sensor M18 M18 Diffuse 400 mm NPN NO/NC met.con. M12 90°

Article no.: SA6/0N-1K

Orderable item

Overview Wide range of models: diffuse, retro-reflective, polarized and fixed-focus All models are available with sensitivity adjustment trimmer Double LED indicator (ON/OFF - supply) NO/NC selectable output IP65 protection degree Complete protection against electrical damage Wide range of plugs, accessories and reflectors available Approvals: CE

Technical Features

Detection properties

Nominal sensing distance	400mm
Thermal drift of Sr	10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	Trimmer

Application

Function Principle	Diffuse reflection (medium distance, ≤600mm)
Notes	white target Kodak 90% 100 x 100mm
Optic position	Axial

Outputs

Output type	NPN L/D Selectable
Output Function	L/D Selectable
Switching frequency	1Khz
Response time	500µs

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 30mA
Load current	≤100mA
Leakage current	≤10µA
Output voltage drop	≤2V@Iload=100mA
Max ripple content	≤10%
LED indicators	Green (powerON), Yellow (Status output)
Time delay before availability	≤200ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	LED Infrared (880nm)
Interference to external light	3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions	21,4mmx90mm
Weight	100g
Housing Material	Nickel-plated brass / Nylon plug
Connections	M12 plug 90°
Active Head Material	PMMA
Tightening torque	25Nm
Operating temperature	- 25°C…+ 70° C (without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

Nuts M18 x 1

Generical Data

Dimensions	21,4mmx90mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
