M18,NPN-NO/NC,Cable 90°,Diff

Name: M18,NPN-NO/NC,Cable 90°,Diff
SKU: SAT/0N-0C
Availability: BackOrder

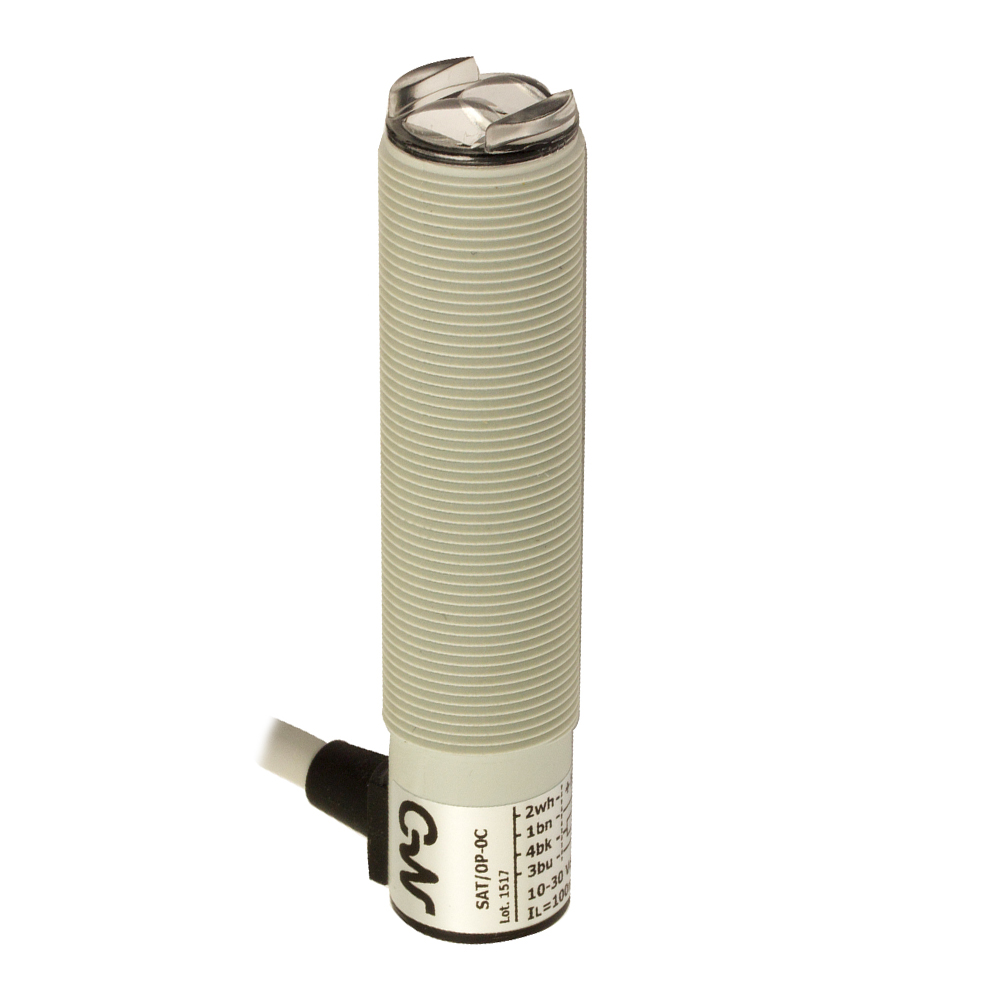

Photo.M18,NPN-NO/NC,Cable 90°,Diffuse
Photoelectric sensor M18 M18 Diffuse Focalizz. NPN NO/NC plast. cable 2m 90°

Article no.: SAT/0N-0C

Orderable item

Overview Wide range of models: diffuse, retro-reflective, polarized and fixed-focus All models are available with sensitivity adjustment trimmer Double LED indicator (ON/OFF - supply) NO/NC selectable output IP65 protection degree Complete protection against electrical damage Wide range of plugs, accessories and reflectors available Approvals: CE

Technical Features

Detection properties

Nominal sensing distance	12mm
Thermal drift of Sr	10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	Trimmer

Application

Function Principle	Diffuse reflection (short distance, ≤200mm)
Notes	white target Kodak 90% 100 x 100mm
Optic position	Axial

Outputs

Output type	NPN L/D Selectable
Output Function	L/D Selectable
Switching frequency	1Khz
Response time	500µs

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 30mA
Load current	≤100mA
Leakage current	≤10µA
Output voltage drop	≤2V@Iload=100mA
Max ripple content	≤10%
LED indicators	Green (powerON), Yellow (Status output)
Time delay before availability	≤200ms
Short-circuit protection	Yes
Reverse Polarity Protection	Yes
Emission	LED Red (660nm)
Interference to external light	3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions	21,4mmx89,8mm
Weight	75g
Housing Material	PBT / Nylon cable exit
Connections	2m PVC cable 90°
Active Head Material	PMMA
Tightening torque	1Nm
Operating temperature	- 25°C…+ 70° C (without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

Nuts M18 x 1

Generical Data

Dimensions	21,4mmx89,8mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
