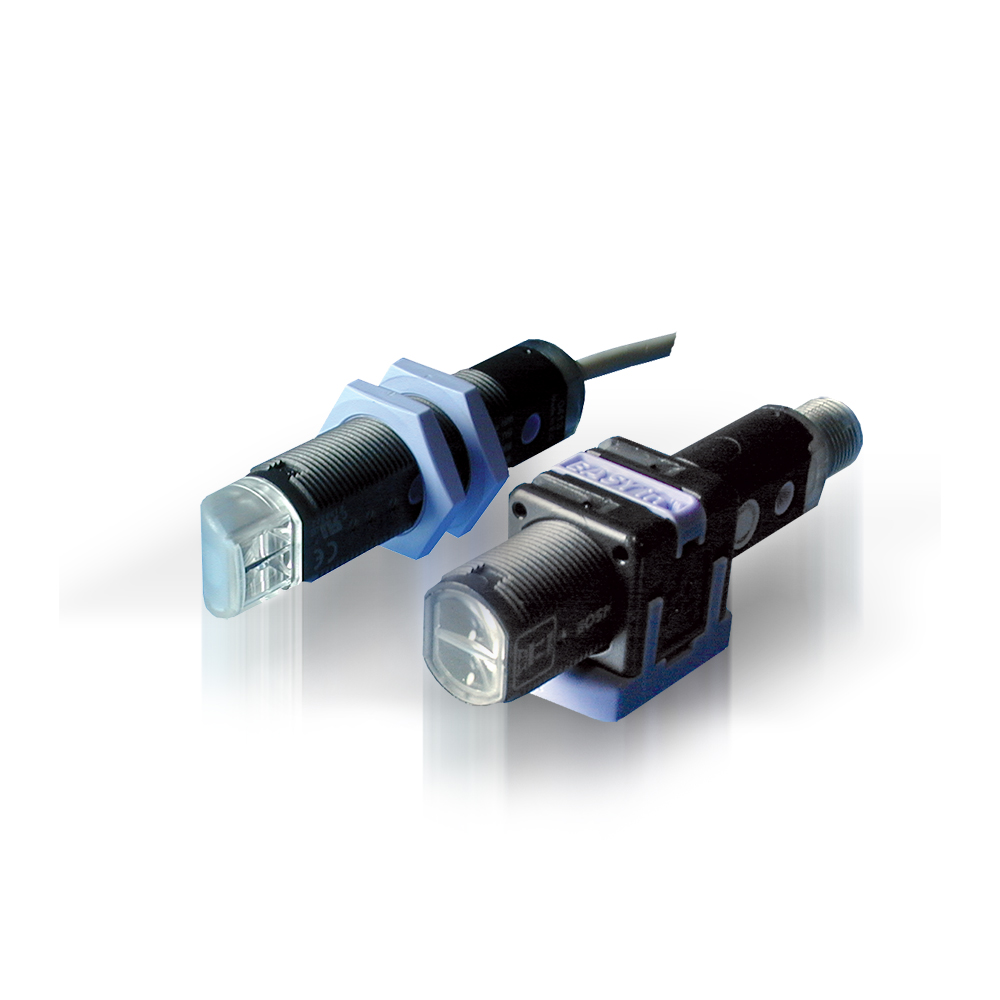

S51-MR-5-F00-PK receiver pnp-no M12
S51-MR-5-F00-PK
Photoelectric Sensor Tubular M18 Infrared LED emission no adjust Receiver metal radial pnp l/d input - M12
Orderable item
-
Description
Overview All optic functions and LASER models M18 flat plastic with universal mounting Available in M18 metal housing Axial or radial optics, cable or connector Standard 4-wire NO-NC NPN or PNP output
Technical Features
Detection propertiesNominal sensing distance 18m Sensitivity adjustment n/a ApplicationFunction Principle Through beam receiver Description Tubular M18 - radial optic Functions Through beam receiver OutputsOutput type PNP L/D selectable Output Function L/D selectable Response time 4 Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 35mA Load current ≤100mA Output voltage drop ≤2V@Iload=100mA Short-circuit protection YES Reverse Polarity Protection Yes Emission n/a Interference to external light according to EN 60947-5-2 : 2020 Impulsive Overvoltage Protection Yes Insulation resistance >20 MΩ 500 Vdc, between electronics and housing Contact resistance 500 Vac 1 min., between electronics and housing Mechanical dataDimensions Ø18x79 Housing Material Metal - Nickel plated brass Connections M12 plug Active Head Material PMMA Storage temperature - 25°C…+70°C Material Diameter/Dimension M18 Test/ApprovalsApprovals CE cULus Shocks and vibrations 0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1 /L=79 Mechanical Protection IP67 - Accessories
