M18,IR .,Pigtail M12,Emitter

Name: M18,IR .,Pigtail M12,Emitter
SKU: MVE/00-0E
Availability: BackOrder

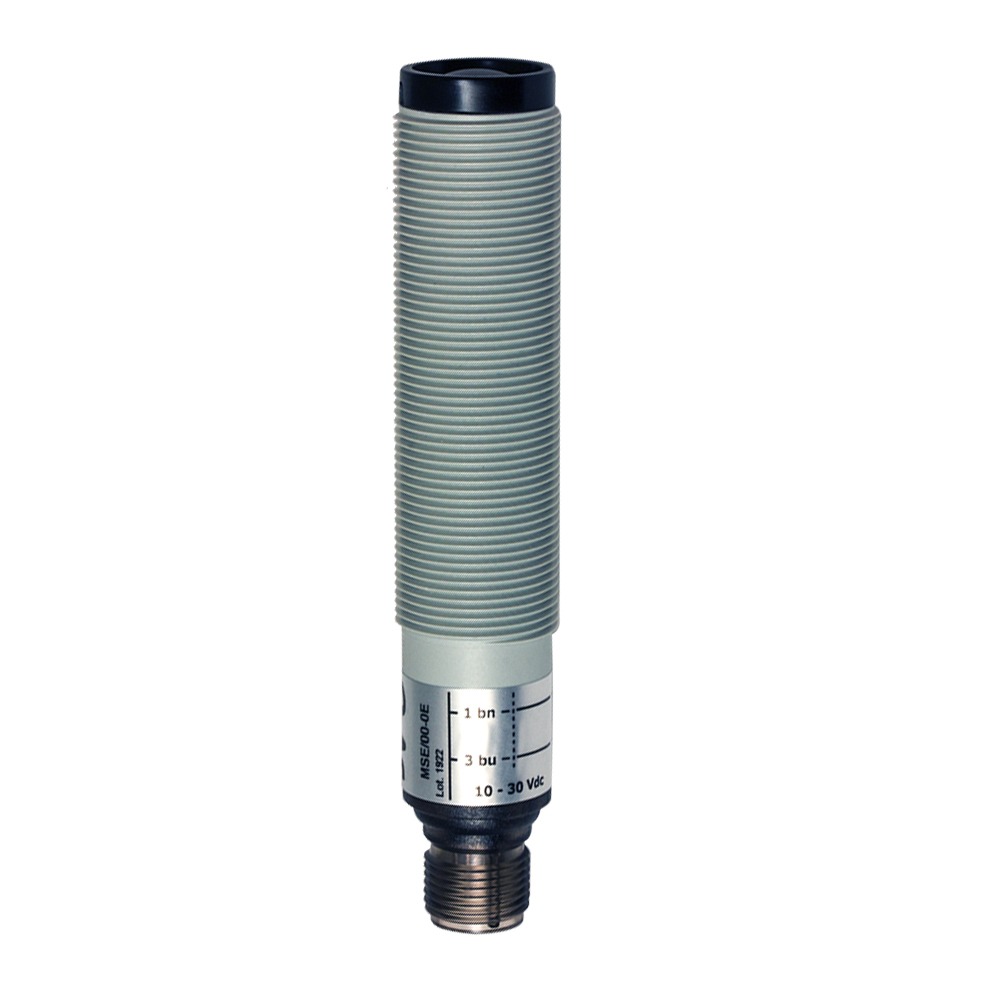

Photo.M18,IR emiss.,Pigtail M12,Emitter
Photoelectric sensor M18 Emitt. plast. conn. M12

Article no.: MVE/00-0E

Orderable item

Overview Wide range of models: diffuse, retro-reflective, polarized, through-beam Through-beam models with high sensing range Retro-reflective models with polarized light (with visible beam) M12 plug cable exit in axial or right angle shape Low leakage current and high output current IP67 protection degree Complete protection against electrical damage

Technical Features

Detection properties

Nominal sensing distance	16m (MVR), 32m (MVD)
Thermal drift of Sr	≤10%Sr
Repeat Accuracy	5%
Sensitivity adjustment	No

Application

Function Principle	Emitter
Emitter/Receiver	Emitter
Optic position	Axial

Outputs

Output type	TRIAC
Output Function
Switching frequency	25Hz
Response time	20ms

Electrical data

Operating Voltage	20...253VAC/50-60Hz
No-Load supply current	≤ 30mARMS
Load current	5…300mARMS
Leakage current	6A
Output voltage drop	≤3V@Iload=300mARMS
Max ripple content	≤10%
LED indicators	Red (powerON)
Time delay before availability	≤200ms
Emission	LED Infrared (880nm)
Interference to external light	3.000lux (incandescent lamp), 10.000lux (sunlight)

Mechanical data

Dimensions	M18x1/L=78,9mm
Weight	30g
Housing Material	PBT / PC plug
Connections	M12 plug
Active Head Material	PMMA
Tightening torque	1Nm
Operating temperature	- 25°C…+ 60° C (without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE cURus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

Nuts M18 x 1

Generical Data

Dimensions	M18x1/L=78,9mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
