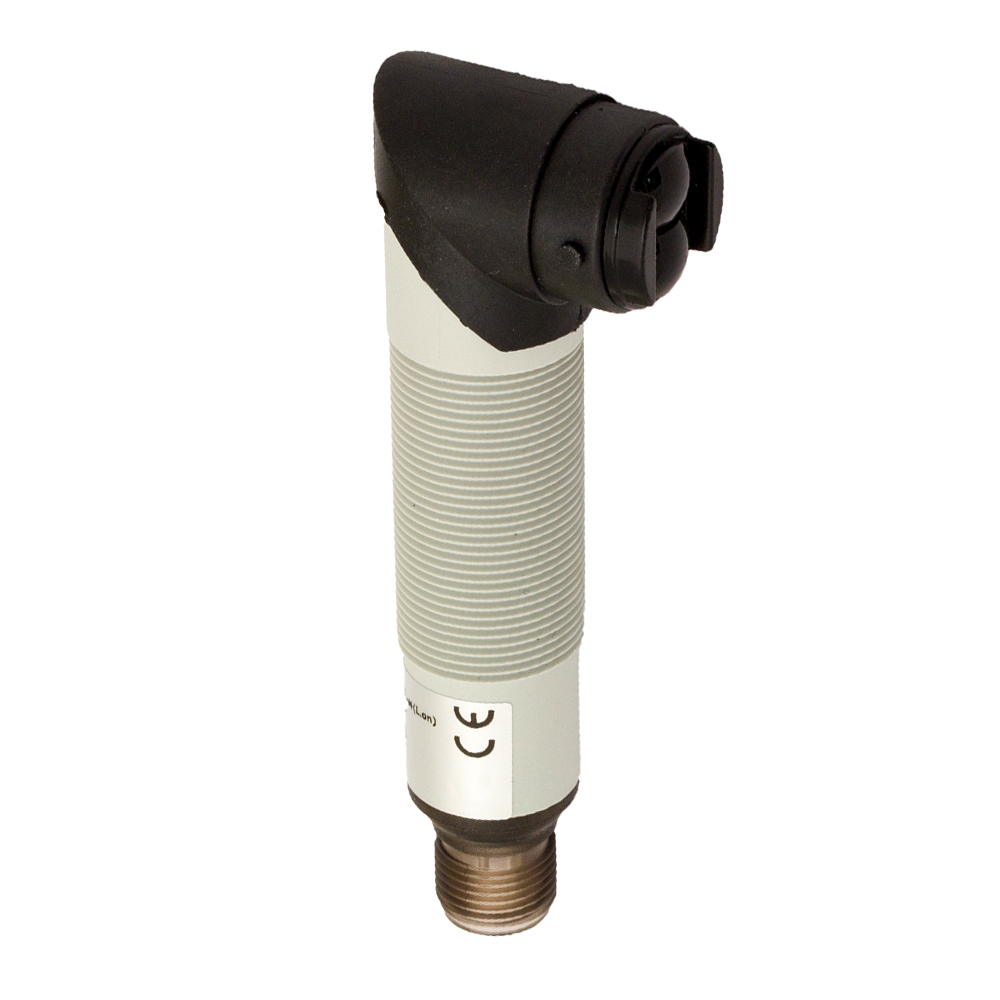

Photo.M18,AC-NO/NC,M12Plug,BGS

Photo.M18,AC-NO/NC,M12 plug,BGS
Photoelectric sensor with right angle M18 Bgs 50 mm ott. 90° 20..253Vac L/D selez. plast. conn. M12 glass optic increased hysteresis

Article no.: MQ0/00-0E6KDA
Orderable item
Register
  • Description

    Technical Features

    Detection properties
    Nominal sensing distance 50mm
    Thermal drift of Sr ≤10%Sr
    Repeat Accuracy 5%
    Sensitivity adjustment No
    Application
    Function Principle Blackground suppression
    Notes white target Kodak 90% 100 x 100mm
    Optic position Radial 90°
    Outputs
    Output type TRIAC L/D Selectable
    Output Function L/D Selectable
    Switching frequency 25Hz
    Response time 20ms
    Electrical data
    Operating Voltage 20...253VAC/50-60Hz
    No-Load supply current ≤ 40mARMS
    Load current 5…300mARMS
    Leakage current ≤1,5mARMS IL=250Vca
    Output voltage drop ≤3V@Iload=300mARMS
    Max ripple content ≤10%
    LED indicators Yellow (status output)
    Time delay before availability ≤200ms
    Emission LED Infrared (880nm)
    Interference to external light 3.000lux (incandescent lamp), 10.000lux (sunlight)
    Impulsive Overvoltage Protection Yes
    Mechanical data
    Housing Material PBT / PC plug
    Connections M12 plug
    Active Head Material PMMA
    Tightening torque 1Nm
    Storage temperature - 55°C…+80°C
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cURus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Accessories
    Supplied Accessories Nuts M18 x 1
    Generical Data
    Dimensions M18x1/L=78,9mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
