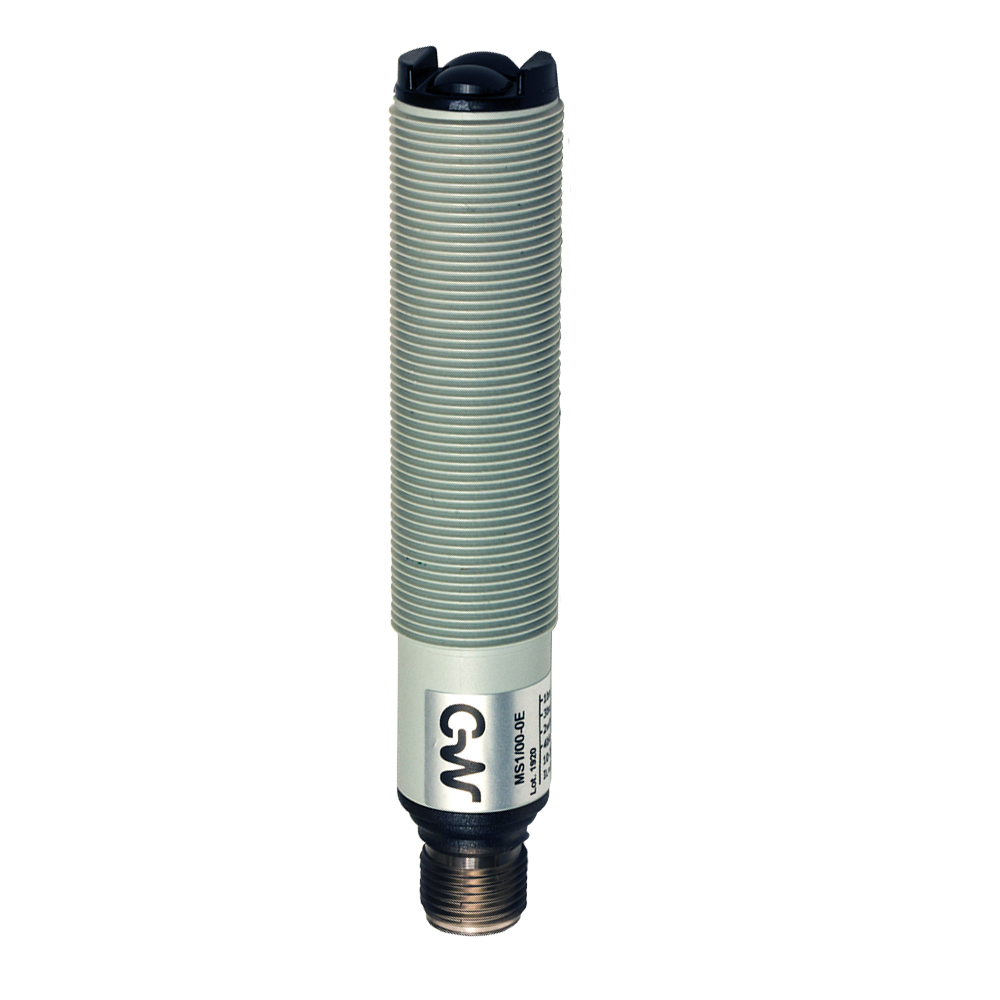

Ph.M18,NPN/PNP-NO/NC,M12,BGS
Photo.M18,NPN/PNP-NO/NC,M12 plug,BGS
Photoelectric sensor M18 Bgs 50 mm NPN/PNP NO/NC plast. conn. M12
Orderable item
-
Description
Overview Wide range of models: diffuse, retro-reflective, polarized, through-beam detection and background suppression Through-beam models with high sensing range Retro-reflective models with red visible polarized light Models with right angle optic (MP) Background suppression models with fixed distance Check function available for all through-beam models Complete protection against electrical damage
Technical Features
Detection propertiesNominal sensing distance 50mm Thermal drift of Sr ≤10% Sr Repeat Accuracy 5% Sensitivity adjustment No ApplicationFunction Principle Blackground suppression Notes white target Kodak 90% 100 x 100mm Optic position Axial OutputsOutput type Decout NPN/PNP Selectable NO/NC Selectable Output Function NO/NC Selectable Switching frequency 1Khz Response time 500µs Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 40mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤1,2V@Iload=100mA Max ripple content ≤10% LED indicators Yellow (status output) Time delay before availability ≤200ms Short-circuit protection Short circuit (autoreset), Overvoltage Emission LED Infrared (880nm) Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Impulsive Overvoltage Protection Impulsive Overvoltage Protection Mechanical dataDimensions M18 x 1 /L =93mm Weight 30g Housing Material PBT / PC plug Connections M12 plug Active Head Material PMMA Tightening torque 1Nm Operating temperature 25°C..+ 70° C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cURus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1 /L =93mm Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP67
