M18,NPN/PNP-NO/NC,Cable,Rec
Photo.M18,NPN/PNP-NO/NC,Cable,Receiver

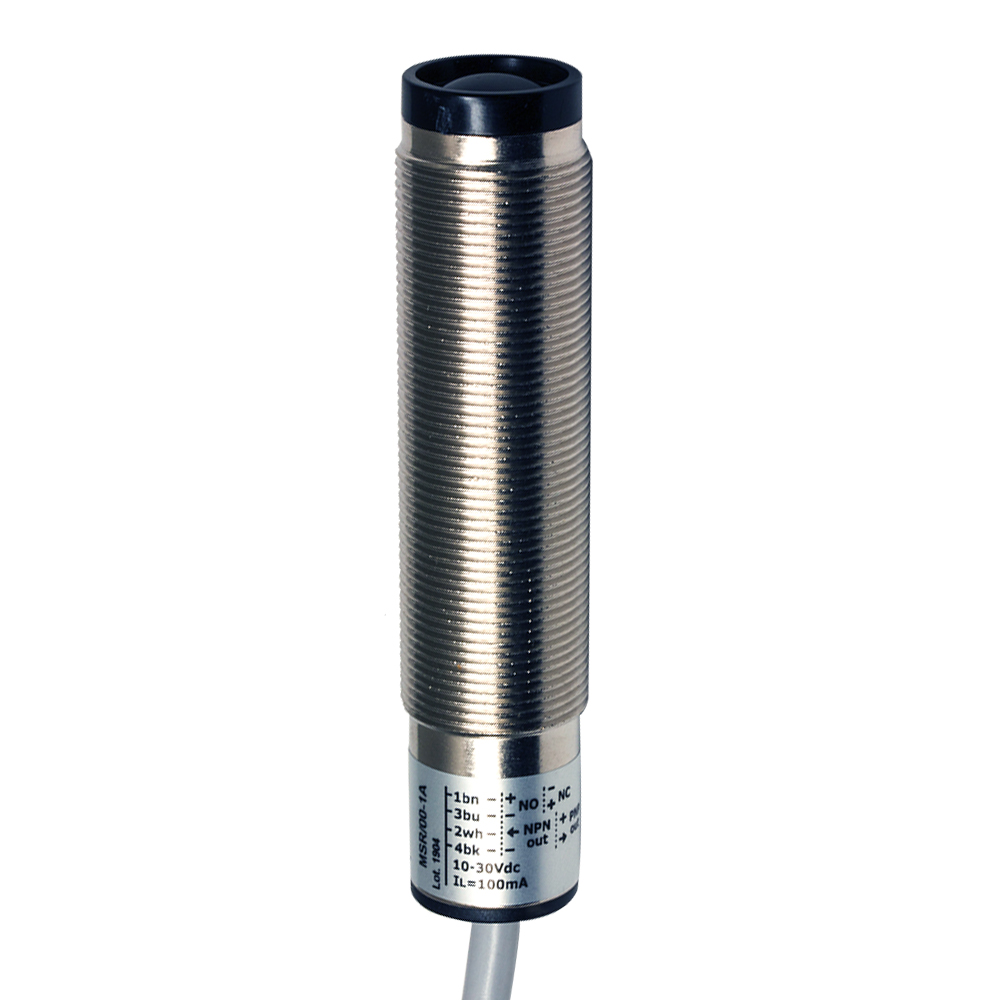

Photoelectric sensor M18 Receiver 16 m NPN/PNP NO/NC metal. cable 2m axial
Orderable item
-
Description
Overview Wide range of models: diffuse, retro-reflective, polarized, through-beam detection and background suppression Through-beam models with high sensing range Retro-reflective models with red visible polarized light Models with right angle optic (MP) Background suppression models with fixed distance Check function available for all through-beam models Complete protection against electrical damage
Technical Features
Detection propertiesNominal sensing distance 16m Thermal drift of Sr ≤10% Sr Repeat Accuracy 5% Sensitivity adjustment No ApplicationFunction Principle Receiver Emitter/Receiver Receiver Optic position Axial OutputsOutput type Decout NPN/PNP Selectable Decout NO/NC Selectable Output Function Decout NO/NC Selectable Switching frequency 30Hz Response time 16,66ms Electrical dataOperating Voltage 10…30VDC No-Load supply current ≤ 25mA Load current ≤100mA Leakage current ≤10μA Output voltage drop ≤1,2V@Iload=100mA Max ripple content ≤10% LED indicators Red (status output) Time delay before availability ≤200ms Short-circuit protection Short circuit (autoreset), Overvoltage Emission Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight) Impulsive Overvoltage Protection Impulsive Overvoltage Protection Mechanical dataDimensions M18 x 1 /L =78,9mm Weight 130g Housing Material Nickel plated brass / PC cable exit Connections 2m PVC cable Active Head Material PMMA Tightening torque 25Nm Operating temperature 25°C..+ 70° C (Without freeze) Diameter/Dimension M18 Test/ApprovalsApprovals CE cURus EMC compatibility EN 60947-5-2 Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27 Degree of protection IP67 AccessoriesSupplied Accessories nuts M18 x 1 Generical DataDimensions M18 x 1 /L =78,9mm Operating Temperature - 25°C…+ 70°C (Without freeze) Mechanical Protection IP67
