M18,NPN/PNP-NO/NC,Cable,Diff

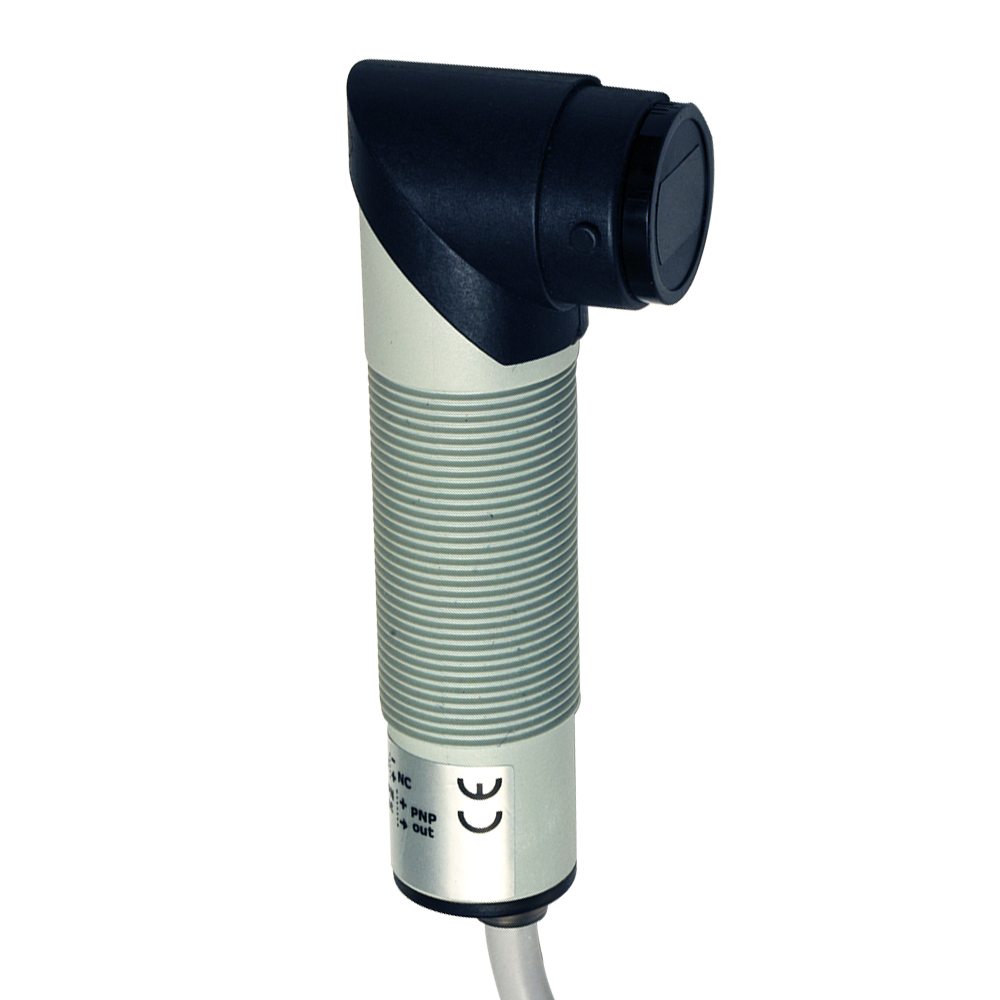

Photo.M18,NPN/PNP-NO/NC,Cable,Diffuse
Photoelectric sensor with right angle M18 Diffuse 100 mm NPN/PNP NO/NC plast. cable 2m 90°

Article no.: MP2/00-0A
Orderable item
Register
  • Description
    Overview Wide range of models: diffuse, retro-reflective, polarized, through-beam detection and background suppression Through-beam models with high sensing range Retro-reflective models with red visible polarized light Models with right angle optic (MP) Background suppression models with fixed distance Check function available for all through-beam models Complete protection against electrical damage

    Technical Features

    Detection properties
    Nominal sensing distance 100mm
    Thermal drift of Sr ≤10% Sr
    Repeat Accuracy 5%
    Sensitivity adjustment No
    Application
    Function Principle Diffuse reflection (short distance, ≤200mm)
    Notes white target Kodak 90% 100 x 100mm
    Optic position Radial 90°
    Outputs
    Output type Decout NPN/PNP Selectable NO/NC Selectable
    Output Function NO/NC Selectable
    Switching frequency 80Hz
    Response time 6,25ms
    Electrical data
    Operating Voltage 10…30VDC
    No-Load supply current ≤ 40mA
    Load current ≤100mA
    Leakage current ≤10μA
    Output voltage drop ≤1,2V@Iload=100mA
    Max ripple content ≤10%
    LED indicators Red (status output)
    Time delay before availability ≤200ms
    Short-circuit protection Short circuit (autoreset), Overvoltage
    Emission LED Infrared (880nm)
    Interference to external light 3000lux (incandescent lamp), 10000lux (sunlight)
    Impulsive Overvoltage Protection Impulsive Overvoltage Protection
    Mechanical data
    Dimensions M18 x 1 /L =74,7 x 29,7mm
    Weight 70g
    Housing Material PBT / PC cable exit
    Connections 2m PVC cable
    Active Head Material PMMA
    Tightening torque 1Nm
    Operating temperature 25°C..+ 70° C (Without freeze)
    Diameter/Dimension M18
    Test/Approvals
    Approvals CE cURus
    EMC compatibility EN 60947-5-2
    Shocks and vibrations Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
    Degree of protection IP67
    Accessories
    Supplied Accessories nuts M18 x 1
    Generical Data
    Dimensions M18 x 1 /L =74,7 x 29,7mm
    Operating Temperature - 25°C…+ 70°C (Without freeze)
    Mechanical Protection IP67
