M18,IR emiss.,M12 90°,Emitter

Name: M18,IR emiss.,M12 90°,Emitter
SKU: MSE/00-0K
Availability: BackOrder

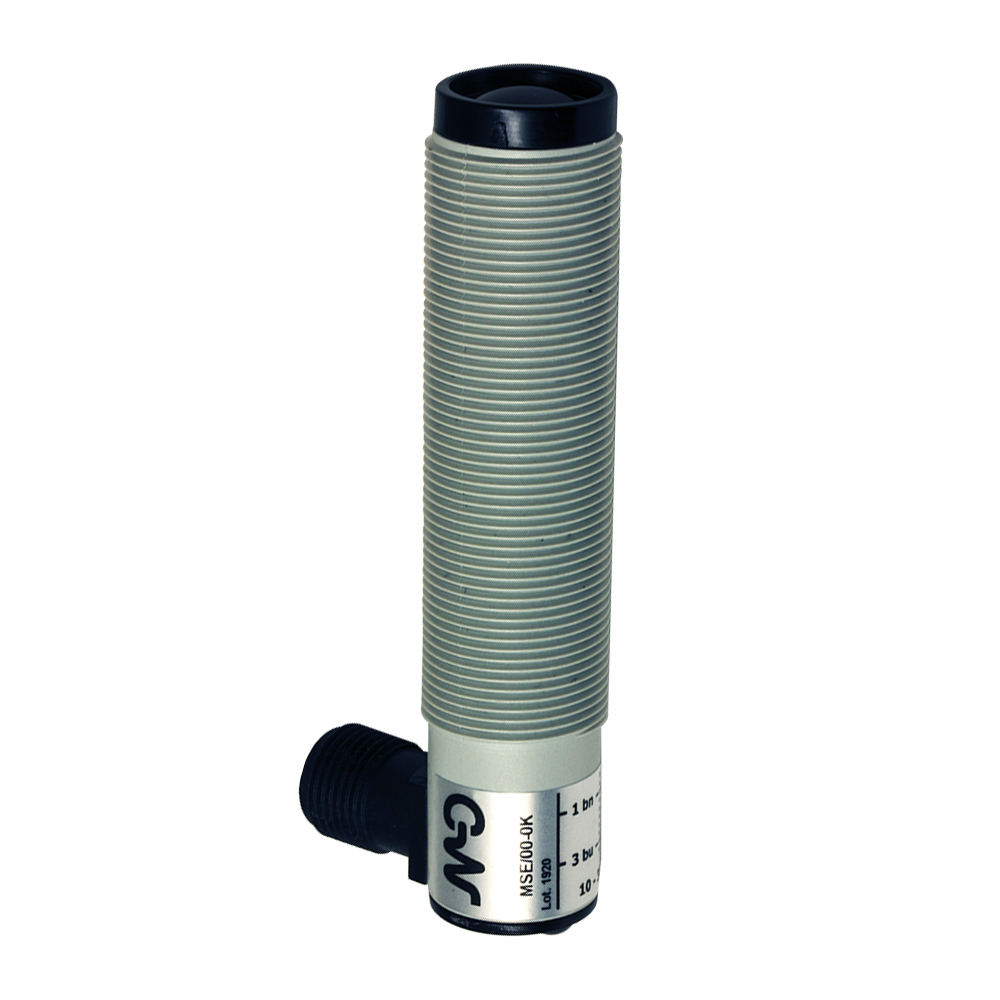

Photo.M18,IR emiss.,M12 plug 90°,Emitter
Photoelectric sensor M18 Emitt. plast. M12 conn. M12 a 90°

Article no.: MSE/00-0K

Orderable item

Overview Wide range of models: diffuse, retro-reflective, polarized, through-beam detection and background suppression Through-beam models with high sensing range Retro-reflective models with red visible polarized light Models with right angle optic (MP) Background suppression models with fixed distance Check function available for all through-beam models Complete protection against electrical damage

Technical Features

Detection properties

Nominal sensing distance	16m (MSR), 32m (MSD)
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	No

Application

Function Principle	Emitter
Emitter/Receiver	Emitter
Optic position	Axial

Outputs

Output type
Output Function

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 15mA
Max ripple content	≤10%
LED indicators	Red (powerON)
Time delay before availability	≤200ms
Short-circuit protection	Short circuit (autoreset), Overvoltage
Emission	LED Infrared (880nm)
Interference to external light	3000lux (incandescent lamp), 10000lux (sunlight)
Impulsive Overvoltage Protection	Impulsive Overvoltage Protection

Mechanical data

Dimensions	M18 x 1 /L =78,6mm
Weight	30g
Housing Material	PBT / PC plug
Connections	M12 plug 90°
Active Head Material	PMMA
Tightening torque	1Nm
Operating temperature	25°C..+ 70° C (Without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE cURus
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M18 x 1

Generical Data

Dimensions	M18 x 1 /L =78,6mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
