Photo.M18,PNP-NO+NC,M12,Reflex

Name: Photo.M18,PNP-NO+NC,M12,Reflex
SKU: FQRN/BP-2E
Availability: BackOrder

Photo.M18,PNP-NO+NC,M12 plug,Reflex

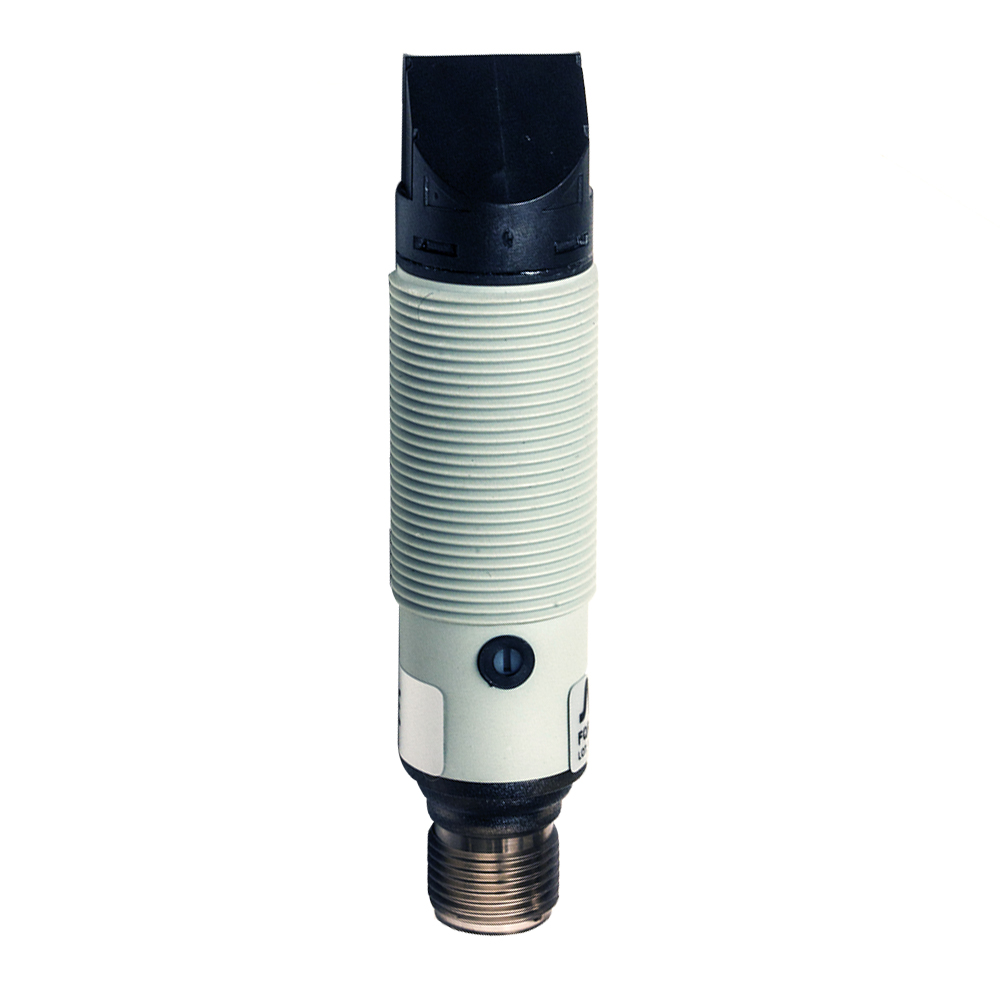

Photoelectric sensor M18 90° Polarized 3 m adj. PNP NO +NC plast. conn. M12

Article no.: FQRN/BP-2E

Orderable item

Overview Wide range of models: direct diffuse, retro-reflective, polarized and fixed-focus Direct diffuse models with short and long sensing distance, polarized and through beam Nickel brass or plastic housing NO+NC complementary output P67 protection degree Complete protection against electrical damages Approvals: CE

Technical Features

Detection properties

Nominal sensing distance	2,6m
Thermal drift of Sr	≤10% Sr
Repeat Accuracy	5%
Sensitivity adjustment	Trimmer

Application

Function Principle	Polarized
Notes	On RL110 reflector
Optic position	Radial 90°

Outputs

Output type	PNP NO+NC
Output Function	NO+NC
Switching frequency	250Hz
Response time	2ms

Electrical data

Operating Voltage	10…30VDC
No-Load supply current	≤ 30mA
Load current	≤50mA
Leakage current	≤10μA
Output voltage drop	≤2V@Iload=50mA
Max ripple content	≤10%
LED indicators	Yellow (status output)
Time delay before availability	≤200ms
Short-circuit protection	Short circuit (autoreset), Overvoltage
Reverse Polarity Protection	Polarity inversal, Inpulsive voltage
Emission	LED Red (660nm)
Interference to external light	5000lux (incandescent lamp), 10000lux (sunlight)

Mechanical data

Dimensions	M18 x 1/L=76,3mm
Weight	20g
Housing Material	PBT / PC plug
Connections	M12 plug
Active Head Material	PMMA
Tightening torque	1Nm
Operating temperature	- 25°C…+ 70° C (Without freeze)
Diameter/Dimension	M18

Test/Approvals

Approvals	CE
EMC compatibility	EN 60947-5-2
Shocks and vibrations	Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
Degree of protection	IP67

Accessories

Supplied Accessories

nuts M18 x 1, screwdriver

Generical Data

Dimensions	M18 x 1/L=76,3mm
Operating Temperature	- 25°C…+ 70°C (Without freeze)
Mechanical Protection	IP67
